Name: Armoured Power Cable Model: H07RN-F
Conductor Material: Copper Application: Construction
Insulation Material: XLPE
High Light:

armoured electrical cable

,

electrical power cable

Product Description

H07RN-F BS EN 50525-2-21 Class 5 flexible copper conductor Rubber Cable



Armoured Power Cable



APPLICATION:

These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.

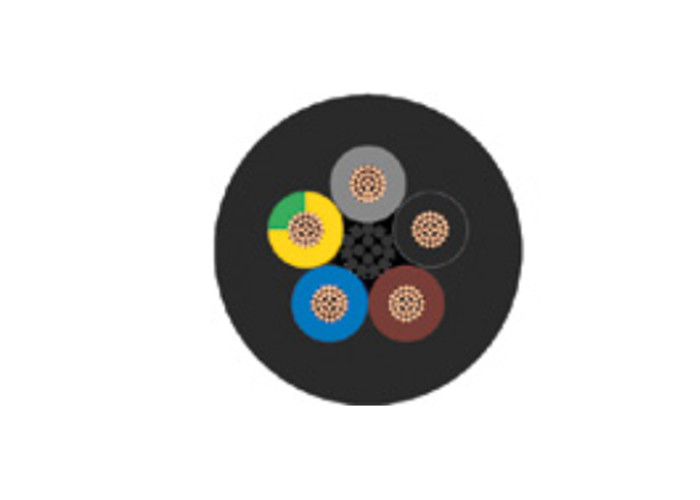

CONSTRUCTION:
Conductor
Class 5 flexible copper conductor to BS EN 60228 (previously
BS 6360)
Insulation
EPR (Ethylene Propylene Rubber) Type EI4 according to BS EN
50363
Sheath
PCP (Polychloroprene) Type EM2 according to BS EN 50363

CHARACTERISTICS
Voltage Rating (Uo/U)
450/750V
Temperature Rating
Fixed: -30°C to +60°C
+85°C. For fxed protected installations.
Flexed: -15°C to +60°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 6 x overall diameter
Core Identifcation
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Blue Brown Black Grey
6 core and above: Black with White numbers
Green/Yellow
Sheath Colour
Black



DIMENSIONS:

NO. OF
CORES		 NOMINAL CROSS
SECTIONAL AREA
mm²		 NOMINAL
THICKNESS OF
INSULATION
mm		 NOMINAL
OVERALL
DIAMETER
mm		 NOMINAL
WEIGHT
kg/km		 A2 GLANDS
Brass		 A2PL GLAND
Plastic
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4		 1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300
400
500
630
1
1.5
2.5
4
6
10
16
25
1
1.5
2.5
4
6
10
16
25
35
50
70
95
1
1.5
2.5		 0.8
0.9
1
1
1.2
1.2
1.4
1.4
1.6
1.6
1.8
1.8
2
2.2
2.4
2.6
2.8
3
3
0.8
0.8
0.9
1
1
1.2
1.2
1.4
0.8
0.8
0.9
1
1
1.2
1.2
1.4
1.4
1.6
1.6
1.8
0.8
0.8
0.9		 5.8
6.5
7.4
8.1
9.8
11.35
13.3
14.6
17.2
19.35
22.2
24.3
25.9
29.7
31.5
36.5
40.4
42.6
47.2
8.1
9
10.7
12.3
13.8
18.6
21.7
25.8
8.74
9.68
11.48
13.2
14.78
19.9
23.31
27.7
30.2
35.8
40.1
46.4
9.63
10.63
12.6		 52
67
92
119
185
258
375
485
669
892
1160
1436
1748
2142
2698
3348
4293
5262
6790
94
120
173
239
313
563
830
1211
117
147
123
297
390
705
1031
1512
1907
2651
3484
4594
142
180
260		 20/16
20/16
20/16
20S
20S
20
25
25
25
32
32
32
40
40
50S
50
50
50
63S
20S
20S
20S
20
25
32
32
40
20S
20S
20
25
25
32
32
40
50S
50
50
63S
20S
20S
20		 20S
20S
20S
20S
20S
20
20
25
25
32
32
32
40
40
50S
50S
50
50
63S
20S
20S
20S
20
25
25
32
40
20S
20S
20
25
25
32
32
40
50S
50S
50
63S
20S
20S
20
NO. OF
CORES		 NOMINAL CROSS
SECTIONAL AREA
mm²		 NOMINAL
THICKNESS OF
INSULATION
mm		 NOMINAL
OVERALL
DIAMETER
mm		 NOMINAL
WEIGHT
kg/km		 A2 GLANDS
Brass		 A2PL GLANDS
Plastic
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
7
7
12
12
19		 4
6
10
16
25
35
50
70
95
1.5
2.5
4
6
10
16
25
35
50
1.5
2.5
1.5
2.5
1.5		 1
1
1.2
1.2
1.4
1.4
1.6
1.6
1.8
0.8
0.9
1
1
1.2
1.2
1.4
1.4
1.6
0.8
0.9
0.8
0.9
0.8		 14.6
16.4
21.8
25.4
30.7
33.4
39.6
44.9
51.9
11.8
14
16.2
18.2
24
28.2
33.9
37.2
44
15.13
17.6
18.2
21.4
22.1		 336
449
833
1138
1714
2204
3029
4121
5361
206
297
422
567
1010
1400
2096
2700
3730
315
445
493
702
710		 25
25
32
40
50S
50S
50
63
63
20
25
25
32
40
40
50S
50
63S
25
25
25
32
32		 25
32
32
40
50
50
-
-
-
20L
25
25
32
40
40
50
50
63S
25
32
32
32
32


CONDUCTORS
Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA
mm²		 MAXIMUM DIAMETER OF WIRES IN
CONDUCTOR
mm		 MAXIMUM RESISTANCE OF CONDUCTOR
AT 20ºC
Plain Wires
ohms/km
1
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300
400
500
630		 0.21
0.26
0.26
0.31
0.31
0.41
0.41
0.41
0.41
0.41
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.51
0.61
0.61		 19.5
13.3
7.98
4.95
3.3
1.91
1.21
0.78
0.554
0.386
0.272
0.206
0.161
0.129
0.106
0.0801
0.0641
0.0486
0.0384
0.0287


ELECTRICAL CHARACTERISTICS (1mm2 to 2.5mm2)
Current Carrying Capacity and Mass Supportable

NOMINAL CROSS
SECTIONAL AREA
mm²		 CURRENT CARRYING CAPACITY MAXIMUM MASS SUPPORTABLE BY
TWIN FLEXIBLE CABLE
(See Regulations 522.7.2 and 559.6.1.5
of the 17th Edition of IEE Wiring
Regulations)
kg
Single-Phase AC
Amps		 Three-Phase AC
Amps
1
1.5
2.5		 10
16
25		 10
16
20		 5
5
5


Voltage Drop

NOMINAL CROSS SECTIONAL AREA
mm²		 DC OR SINGLE-PHASE AC
mV/A/m		 THREE-PHASE AC
mV/A/m
1
1.5
2.5		 46
32
19		 40
27
16



ELECTRICAL CHARACTERISTICS (4mm2 and above)
Current Carrying Capacity

NOMINAL CROSS
SECTIONAL AREA
mm²		 60°C CONDUCTOR OPERATING TEMPERATURE 85°C CONDUCTOR OPERATING TEMPERATURE**
Single-Phase AC or DC Three-Phase AC Single-Phase AC or DC Three-Phase AC
1 Two Core Cable, With or Without Protective Conductor
Amps		 2 Single Core Cables
Amps		 1 Three Core, Four Core or
Five Core Cable
Amps		 1 Two Core Cable, With or Without Protective Conductor
Amps		 2 Single Core Cables Touching
Amps		 1 Three Core, Four Core or
Five Core Cable
Amps
4
6
10
16
25
35
50
70
95
120
150
185
240
300
400
500
630		 30
39
51
73
97
-
-
-
-
-
-
-
-
-
-
-
-		 -
-
-
-
-
140
175
216
258
302
347
394
471
541
644
738
861		 26
34
47
63
83
102
124
158
192
222
255
291
343
394
-
-
-		 41
53
73
99
131
-
-
-
-
-
-
-
-
-
-
-
-

-
-
-
-
-
192
240
297
354
414
476
540
645
741
885
1017

1190

 36
47
64
86
114
140
170
216
262
303
348
397
467
537
-
-
-



Voltage Drop

NOMINAL CROSS
SECTIONAL AREA
mm²		 TWO CORE CABLE,
DC
mV/A/m		 TWO CORE CABLE,
SINGLE-PHASE AC
mV/A/m		 1 THREE CORE,
FOUR CORE OR FIVE
CORE CABLE,
THREE-PHASE AC
mV/A/m		 2 SINGLE CORE CABLES,
TOUCHING
DC
mV/A/m		 Single-Phase AC*
mV/A/m
4
6
10
16		 12
7.8
4.6
2.9		 12
7.8
4.6
2.9		 10
6.7
4
2.5		 -
-
-
-		 -
-
-
-
    r x z r x z   r x z
25
35
50
70
95
120
150
185
240
300
400
500
630		 1.80
-
-
-
-
-
-
-
-
-
-
-
-		 1.80
-
-
-
-
-
-
-
-
-
-
-
-		 0.175
-
-
-
-
-
-
-
-
-
-
-
-		 1.85
-
-
-
-
-
-
-
-
-
-
-
-		 1.55
1.10
0.83
0.57
0.42
0.33
0.27
0.22
0.170
0.135
-
-
-		 0.150
0.150
0.145
0.140
0.135
0.135
0.130
0.130
0.130
0.125
-
-
-		 1.55
1.15
0.84
0.58
0.44
0.36
0.30
0.26
0.21
0.185
-
-
-		 -
1.31
0.91
0.64
0.49
0.38
0.31
0.25
0.190
0.150
0.115
0.090
0.068		 -
1.31
0.91
0.64
0.49
0.38
0.31
0.25
0.195
0.155
0.120
0.099
0.079		 -
0.21
0.21
0.20
0.195
0.190
0.190
0.190
0.185
0.180
0.175
0.170
0.170		 -
1.32
0.93
0.67
0.53
0.43
0.36
0.32
0.27
0.24
0.21
0.20
0.185

DE-RATING FACTORS

AMBIENT TEMPERATURE 35ºC 40ºC 45ºC 50ºC 55ºC
DE-RATING FACTOR 0.91 082 0.71 0.58 0.41
