Home ProductsSplit Concentric CableLIYCY TCWB Screened Split Concentric Cable Twisted Pair PVC IEC 60754 Connection Cable

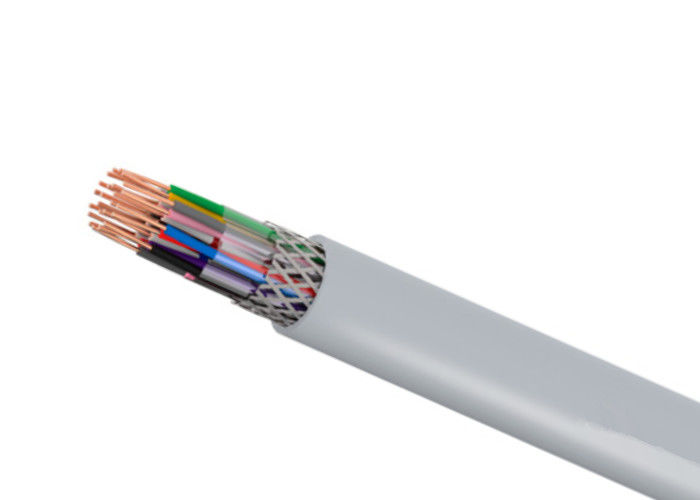

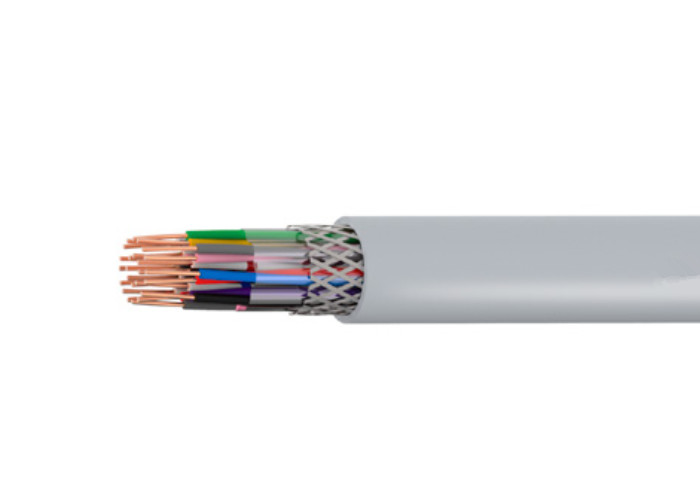

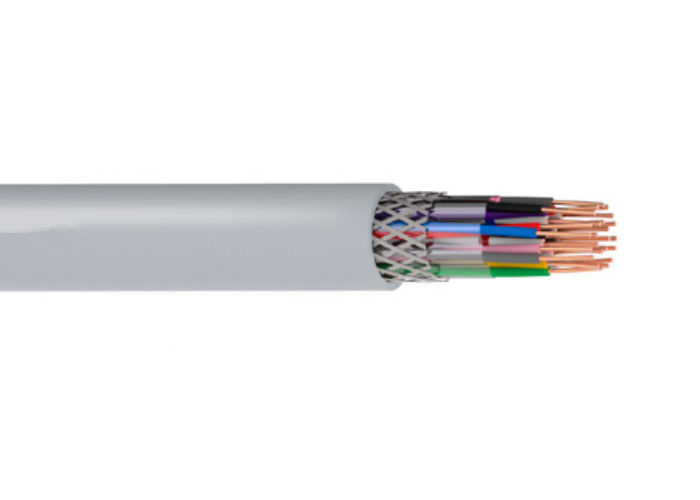

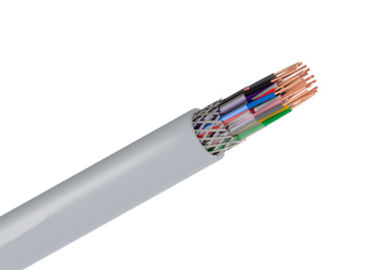

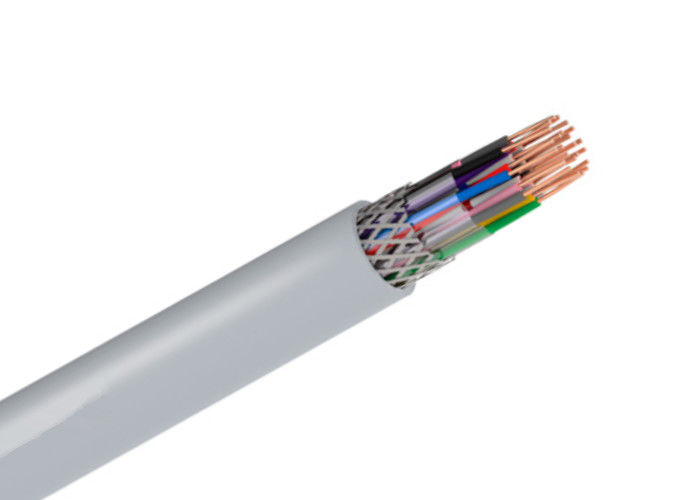

LIYCY TCWB Screened Split Concentric Cable Twisted Pair PVC IEC 60754 Connection Cable
LIYCY TCWB Screened Split Concentric Cable Twisted Pair PVC IEC 60754 Connection Cable LIYCY TCWB Screened Split Concentric Cable Twisted Pair PVC IEC 60754 Connection Cable LIYCY TCWB Screened Split Concentric Cable Twisted Pair PVC IEC 60754 Connection Cable LIYCY TCWB Screened Split Concentric Cable Twisted Pair PVC IEC 60754 Connection Cable LIYCY TCWB Screened Split Concentric Cable Twisted Pair PVC IEC 60754 Connection Cable
Contact Now

LIYCY TCWB Screened Split Concentric Cable Twisted Pair PVC IEC 60754 Connection Cable

Minimum Order Quantity : 1000meters Packaging Details : wooden drum
Place of Origin: Henan Brand Name: CN CABLE
Certification: BS Model Number: control cable

Detail Information
Conductor: Fine-stranded Copper Conductor Insulation: PVC
Separator: Plastic Foil Tape Screen: Tinned Copper Wire Braid
Sheath: PVC
High Light:

awg power cable

,

16mm split concentric cable

Product Description

LIYCY TCWB Screened TP (Twisted Pair) PVC IEC 60754 connection cable in the control, measuring and signal technology.





APPLICATION:

To be installed in dry and humid rooms and used as a termination and connection cable in the control, measuring and signal technology.

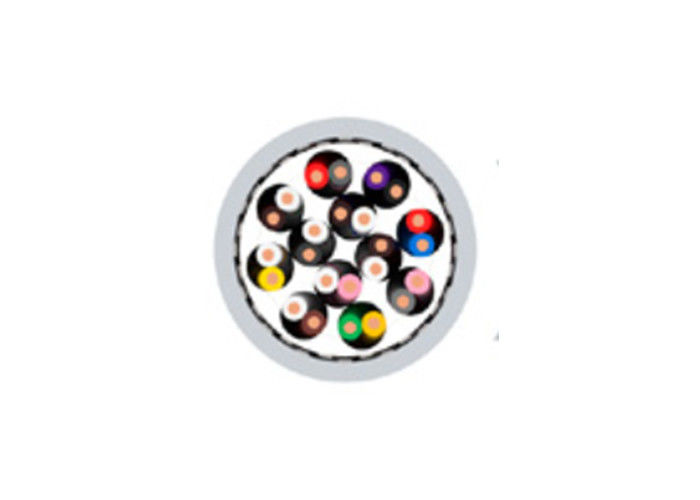

CONSTRUCTION:
Conductor
Fine-stranded copper conductor
Insulation
PVC (Polyvinyl Chloride)
Separator
Plastic foil tape
Screen
TCWB (Tinned Copper Wire Braid)
Sheath
PVC (Polyvinyl Chloride)

CHARACTERISTICS
Voltage Rating
0.14mm2: 350V
Above 0.14mm2: 500V
Test Voltage
0.14mm2: 800V
Above 0.14mm2: 1200V
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -5°C to +50°C
Minimum Bending Radius
Flexed: 10 x overall diameter
Pair Identifcation
Pair 1: White Brown
Pair 2: Green Yellow
Pair 3: Grey Pink
Pair 4: Blue Red
Pair 5: Black Violet
Pair 6: Grey/Pink Red/Blue
Pair 7: White/Green Brown/Green
Pair 8: White/Yellow Yellow/Brown
Pair 9: White/Grey Grey/Brown
Pair 10: White/Pink Pink/Brown
Sheath Colour
Grey



DIMENSIONS

NO. OF
PAIRS		 NOMINAL CROSS
SECTIONAL AREA
mm²		 CONDUCTOR CONSTRUCTION CONDUCTOR LOOP
RESISTANCE
ohms/km		 OVERALL
DIAMETER
mm		 NOMINAL
WEIGHT
kg/km
No. of Strands Strand Diameter
mm
2
2
2
2
2
3
3
3
3
3
4
4
4
4
4
5
5
6
6
6
6
8
8
8
8
10
10
12
12
12
16
16		 0.14
0.25
0.34
0.5
0.75
0.14
0.25
0.34
0.5
0.75
0.14
0.25
0.34
0.5
0.75
0.14
0.25
0.14
0.25
0.5
0.75
0.14
0.25
0.5
0.75
0.14
0.25
0.14
0.5
0.75
0.14
0.75		 18
14
19
16
24
18
14
19
16
24
18
14
19
16
24
18
14
18
14
16
24
18
14
16
24
18
14
18
16
24
18
24		 0.1
0.16
0.16
0.21
0.21
0.1
0.16
0.16
0.21
0.21
0.1
0.16
0.16
0.21
0.21
0.1
0.16
0.1
0.16
0.21
0.21
0.1
0.16
0.21
0.21
0.1
0.16
0.1
0.21
0.21
0.1
0.21		 276
151
115
75.6
50.6
276
151
115
75.6
50.6
276
151
115
75.6
50.6
276
151
276
151
75.6
50.6
276
151
75.6
50.6
276
151
276
75.6
50.6
276
50.6		 5.8
6.6
7.5
8.2
8.6
6.2
7
7.9
8.7
9.5
6.8
7.6
8.5
9.3
10.8
7.7
8.4
7.9
8.6
10.8
12.5
8.6
9.4
11.8
14.6
9.5
10.7
9.9
14
17.8
11.2
18.7		 34
46
64
75
106
43
64
86
98
140
50
73
113
123
179
70
88
81
98
162
246
93
118
190
300
115
165
125
342
433
148
564


ELECTRICAL CHARACTERISTICS

NOMINAL CROSS
SECTIONAL AREA
mm²		 ATTENUATION AT 800Hz
db/km		 MUTUAL CAPACITANCE
0.14
0.25
0.34
0.5
0.75		 2.3
1.9
1.5
1.3
1.1		 120
120
120
120
120
