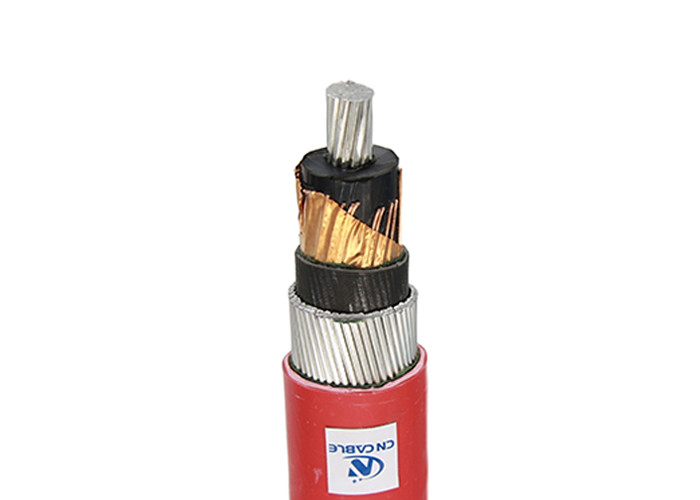

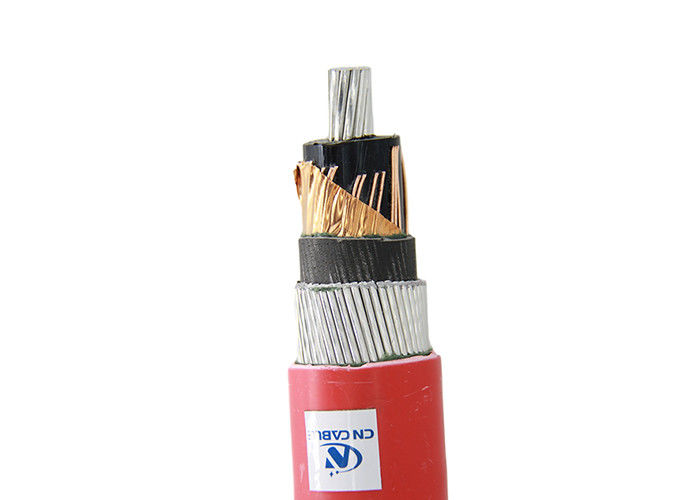

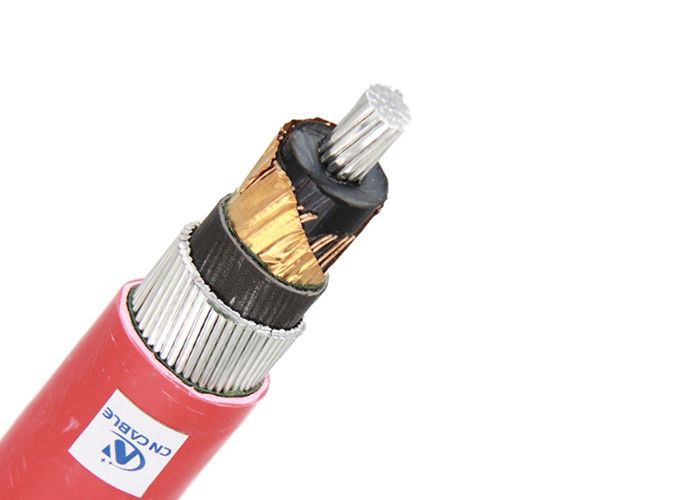

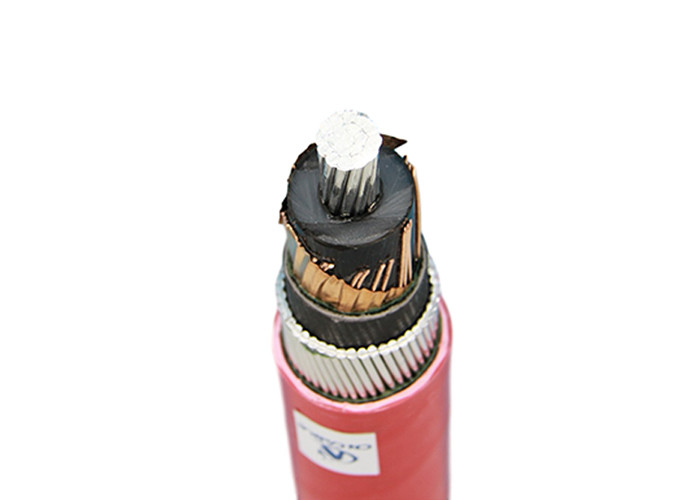

Underground Amoured XLPE Insulation MV Power Cable

Minimum Order Quantity : 1000meters Packaging Details : wooden drum. iron-wooden drum
Delivery Time : 20 days Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: IEC Model Number: MV CABLE

Detail Information

Conductor: Aluminum Conductor Insulation: XLPE
Screen: Copper Wires And Copper Tape Amour: Alumium Wire Amoured
Sheath: Medium Density Polyethylene Color: Red
High Light:

Amoured MV Power Cable

,

XLPE Insulation MV Power Cable

Product Description

10KV (6/10KV) Single Core Copper Wire And Copper Tape Shielded Aluminum wire Armored Aluminum Underground Cable



APPLICATION:The product is used in power transmission and distribution line at Voltage Up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.

CONSTRUCTION
Conductor
Aluminum Conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Copper Wires and Copper Tape
Amour
Aluminum wire
Sheath
MDPE (Medium Density Polyethylene)

CHARACTERISTICS
Voltage Rating (Uo/U)(Um)
10KV (6/10KV)
Sheath Colour
Red



10KV (6/10KV) Single Core 120mm2 Aluminum Underground Cable
Size Insulation thickness Outer Sheath Thickness Approx. Cable Dia. Approx. Cable Weight
mm2 mm mm mm kg/km
95 3.4 1.8 25.9 691
120 3.4 1.8 27.3 792
150 3.4 1.8 28.7 906
185 3.4 1.9 30.7 1051
