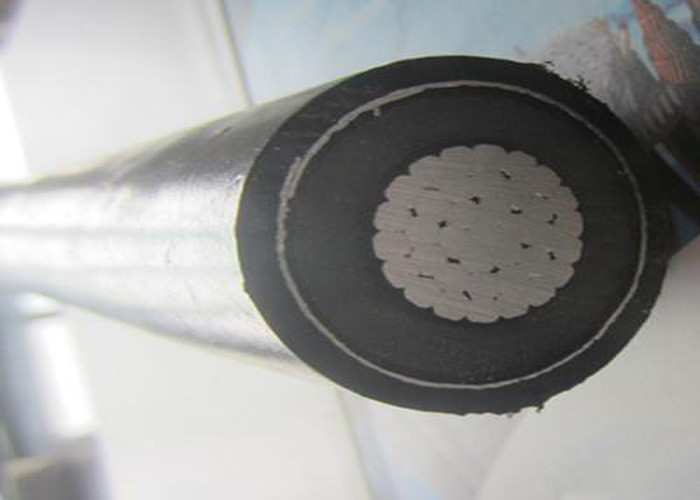

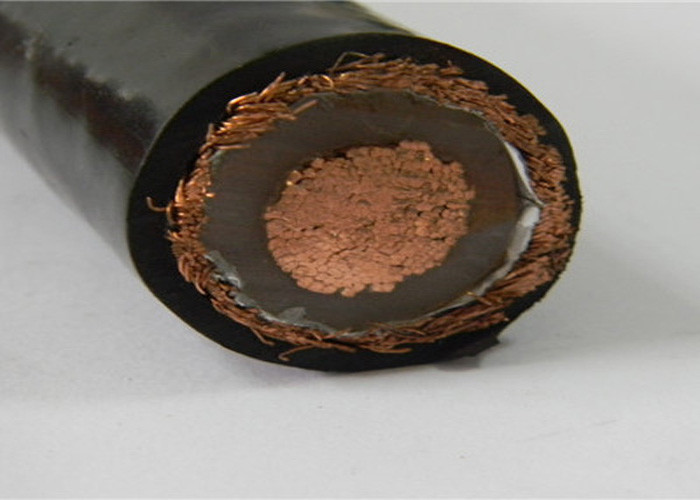

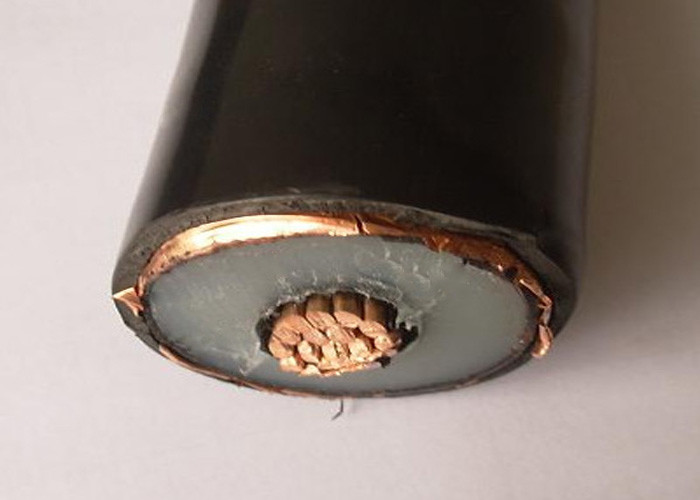

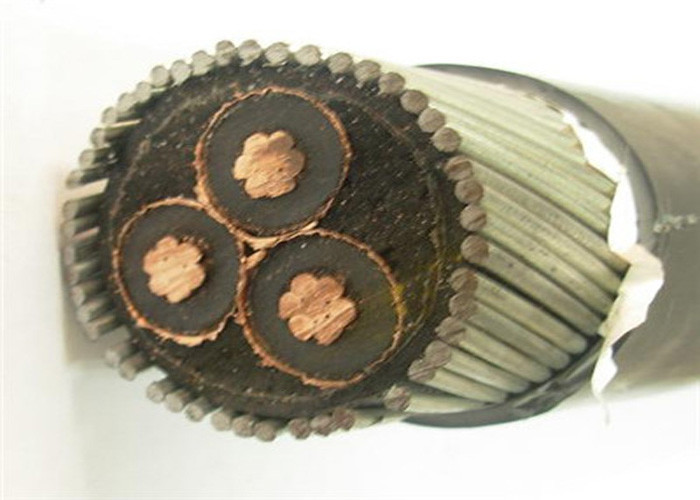

6mm 3 Core Swa Steel Wire Multi Core Armoured Cable 1-30KV Medium Voltage
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
|Insulation Material:||XLPE||Type:||Medium Voltage|
|Jacket:||PVC||Product Name:||Underground Aluminum Core Medium Voltage Ata /ata /swa Power Cables|
|Core:||1 Core / 3 Core||Sheath:||PVC/PE|
|Armour:||SWA STA AWA ATA||Color:||Black/Red|
|Certificate:||ISO9001/ISO14001||Standard:||IEC60502-2, BS 6622, NFC 33226, Etc.|
|Package:||Wooden Reel, Iron-wooden Reel, Steel Reel|
multi core electrical cable,
steel wire armoured xlpe cable
The product is used in power transmission and distribution line at voltage up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.
We can produce according to standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C-68.3, ICEA S-93-639, ICEA S-94-649, CSA C68.5, IS 7098, etc.
Rated Voltage: 1KV to 35KV
Cross-section area: up to 1000 .
Conductor long-time operating temperature: 90℃
Short circuit conductor highest temperature: 250℃
Core Number: 1 Core / 3 Core
Conductor: Cu / AL
Insulation: XLPE / TRXLPE
Metallic screen: Cu tape / Cu wire screen / Al-Plastic Tape screen
Armor type: AL Tape / AL Wire / STA / SWA
Outer sheath: PVC / PE / LDPE / LLDPE / LSHF
Product date sheet
|Rated Voltage||XLPE/TRXLPE Insulation Nominal Thickness||Metal Screen||Aemor Dimension|
|Copper Tape||Copper Wire||Tape||Wire|
|3.6/6||2.5-3.2||0.06-0.12||Dia.Min.0.9mm, Wire No. According to Screen Size||0.2-0.5||0.8-5.0|
Click for more information
220KV POWER CABLE
110KV POWER CABLE
3 CORE MV POWER CABLE
SINGLE CORE MV POWER CABLE
CONCENTRIC MV POWER CABLE
NFC 33226 STANDARD UG POWER CABLE
1. Product consultation ,analysis, design, production
2. Provide industry information, Product Training, Assist Product Marketing
3. Provide project support such as tender assistant, cooperate visit customers,FAT support
4. Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples
5. OEM service
6. Other services customized by clients
Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.
Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .
Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.
