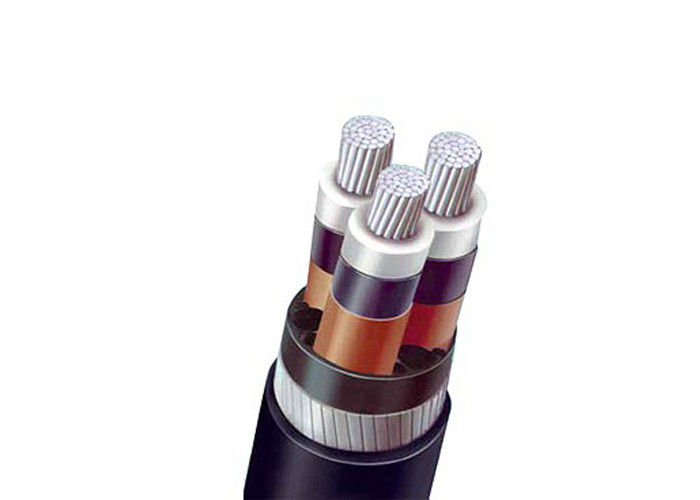

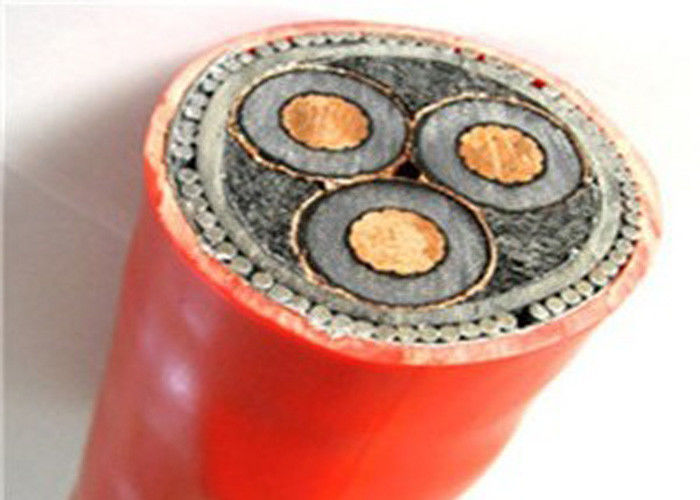

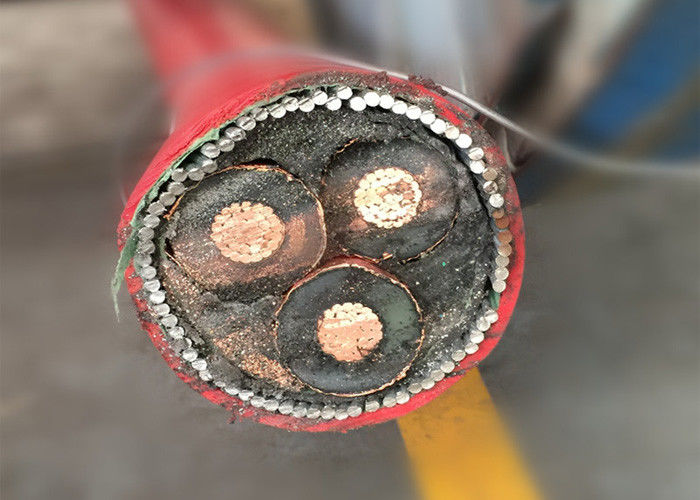

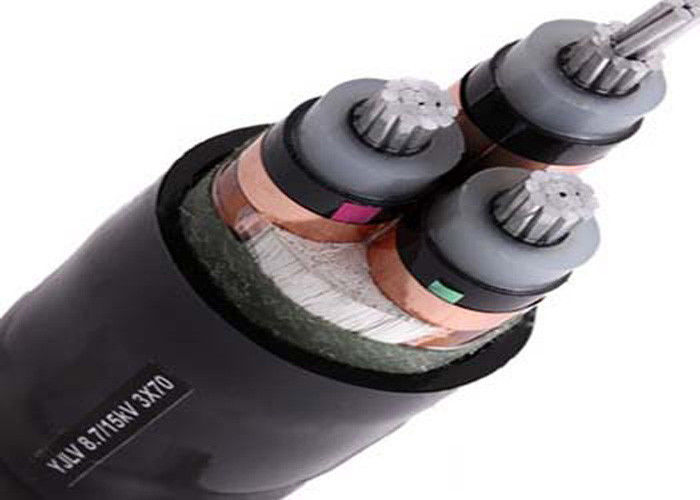

6mm 3 Core Swa Steel Wire Multi Core Armoured Cable 1-30KV Medium Voltage
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
|Insulation Material:||XLPE||Type:||Medium Voltage|
|Application:||Underground||Conductor Material:||Cu / Al|
|Jacket:||PVC||Product Name:||Underground Steel Wire Armored Swa Power Cable With Wood Drum Package|
|Core:||1 Core / 3 Core||Sheath:||PVC/PE|
|Standard:||IEC60502-2, BS 6622, NFC 33226, Etc.||Package:||Wooden Reel, Iron-wooden Reel, Steel Reel|
multicore power cable,
steel wire armoured xlpe cable
The product is used in power transmission and distribution line at voltage up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.
We can produce according to standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C-68.3, ICEA S-93-639, ICEA S-94-649, CSA C68.5, IS 7098, etc.
Rated Voltage: 1KV to 35KV
Cross-section area: up to 1000 .
Conductor long-time operating temperature: 90℃
Short circuit conductor highest temperature: 250℃
Core Number: 1 core/ 3 Core
Conductor: Cu / AL
Metallic screen: Cu tape/ Cu wire screen / Al-Plastic Tape screen
Armor type: AL Tape/AL Wire /STA / SWA
Outer sheath: PVC / PE/ LDPE / LLDPE/LSHF
Product date sheet
|Rated Voltage||XLPE/TRXLPE Insulation Nominal Thickness||Metal Screen||Aemor Dimension|
|Copper Tape||Copper Wire||Tape||Wire|
|3.6/6||2.5-3.2||0.06-0.12||Dia.Min.0.9mm, Wire No. According to Screen Size||0.2-0.5||0.8-5.0|
