Aerial Electric Transmission Bundled ABC Power Cable With Insulation Material

Minimum Order Quantity : 1000 Meter/M Price : US $1-50 / Meters | 1000 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Model Number: ABC cable

Detail Information

Insulation Material: XLPE Type: Low Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: PVC Product Name: Aerial Electric Transmission ABC Cable With Insulation Material
Rated Voltage: 0.6/1KV Conductor: Al/Al Alloy/Cu
Core: 2,3,4,5,6, Insulation: XLPE/PVC/PE
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel Color: Black
High Light:

aerial bundled cable

,

aluminum aerial cable

Product Description

Aerial Electric Transmission Bundled Cable ABC Cable With Insulation Material

Product Description

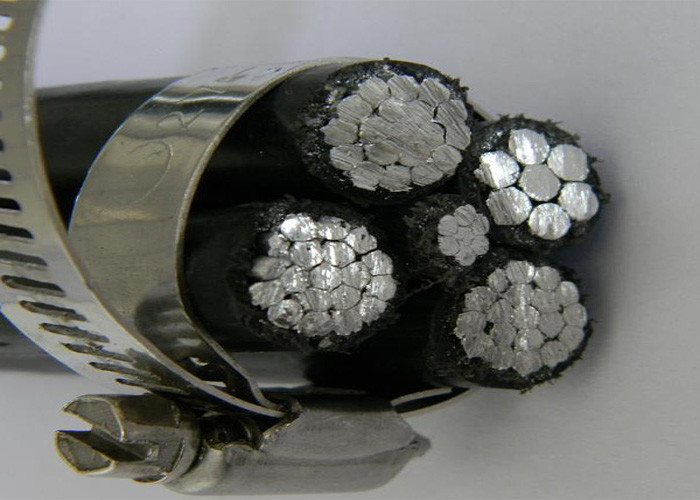

abc cable.jpg



Application:

The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃



Applicable Standard:

IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474





Cable Structure:

Conductor: Al/Al Alloy/Cu

Insulation: XLPE/PE/PVC







0.6/1KV- Bundle Assembled Insulated Cables-NF C 33-209



Type Size Conductor Insulation Approx. Insulated Dia.
Stranding No. Max. Conductor Resistance 20℃ Conductor Dia. Rated Strength Average Thickness
mm² Ω/km mm KN mm mm
Phase Core or Street Lighting Core 16 7 1.91 4.6-5.2 1.9 1.2 7.5
25 7 1.2 5.6-6.5 1.4 9
35 Min.6 0.868 6.6-7.5 1.6 10.2
50 Min.6 0.641 7.7-8.6 1.6 11.2
70 Min.12 0.443 9.3-10.2 1.8 13.2
95 Min.15 0.32 11.0-12.0 1.8 15
120 Min.15 0.253 12.3-13.5 1.8 16.2
150 Min.15 0.206 13.7-15.0 1.7 18.2
Neutral Core 54.6 7 0.63 9.2-9.6 16.6 1.6 12.6
70 7 0.5 10.0-10.2 20.5 1.5 14
95 19 0.343 12.2-12.9 27.5 1.6 16.1
