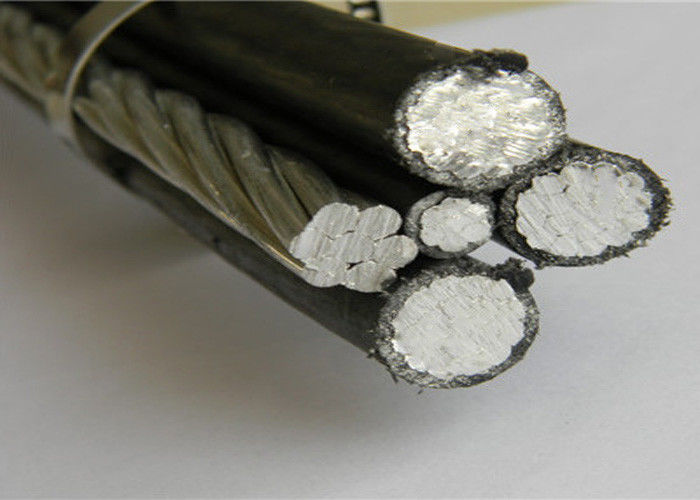

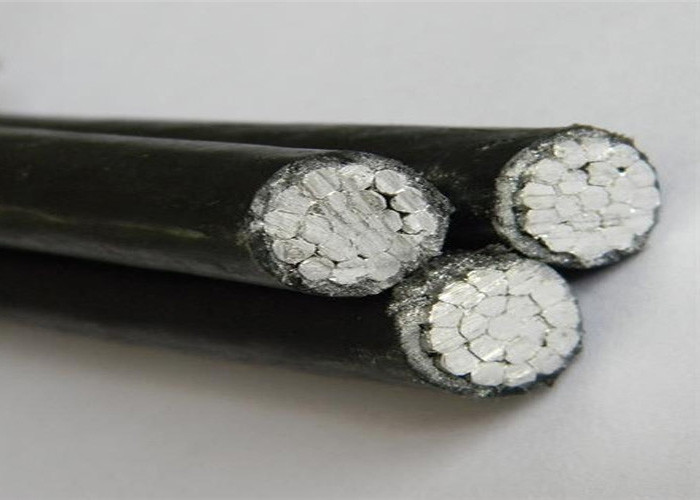

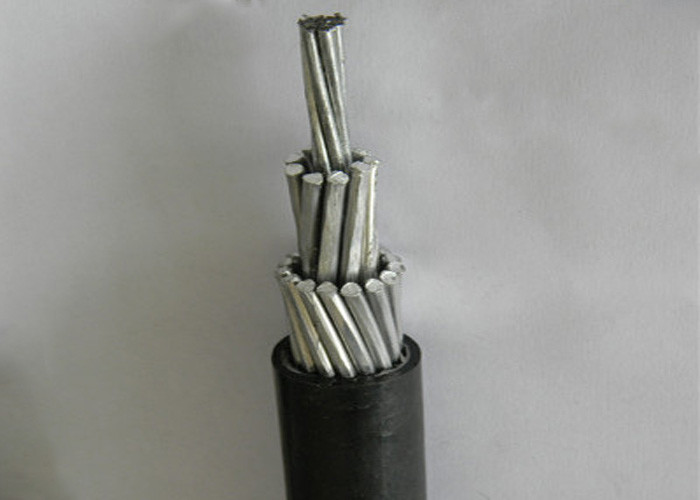

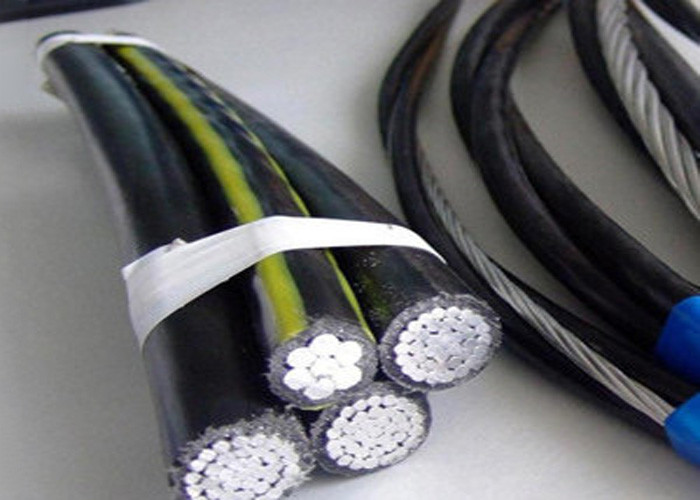

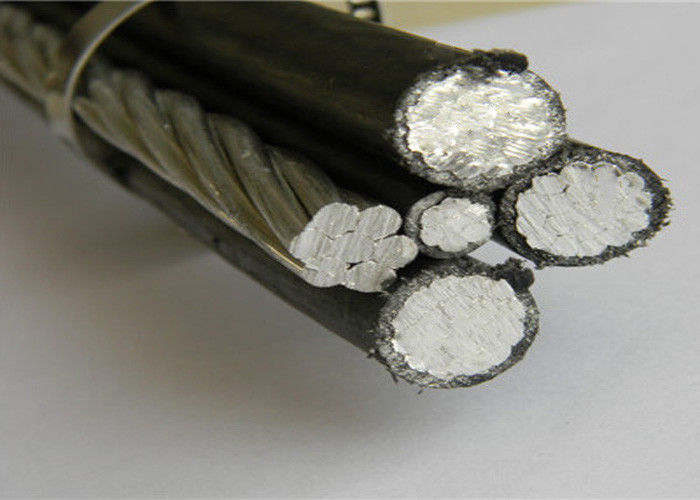

Al/Cu 1KV ABC Overhead Cable NFC 33226 Aerial Bundle Conductor
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
Detail Information |
|||
Insulation Material: | XLPE | Type: | Low Voltage |
---|---|---|---|
Application: | Overhead | Conductor Material: | Aluminum |
Jacket: | PVC | Product Name: | Overhead Line Wire Aerial Cable Bundled 16mm XLPE / PE /PVC Abc Cable |
Rated Voltage: | 0.6/1KV | Conductor: | Al/Al Alloy/Cu |
Core: | 2,3,4,5,6, | Insulation: | XLPE/PVC/PE |
Certificate: | ISO9001/ISO14001 | Standard: | IEC60502-2, BS 6622, NFC 33226, Etc. |
Package: | Wooden Reel, Iron-wooden Reel, Steel Reel | Color: | Black |
High Light: | lv abc cable,aerial bundled cable |
Product Description
Application:
The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃
Applicable Standard:
IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474
Cable Structure:
Conductor: Al/Al Alloy/Cu
Insulation: XLPE/PE/PVC
Product date sheet
Core No.× Conductor Size | Phase Core | Neutral Core | Approx.Overall Dia. | Approx.Weight | |||||||
Conductor | Insulation | Conductor | Rated Strength | ||||||||
Str. No. | Dia. | Nominal Thickness | Str. No. | Conductor Dia. | Nominal Thickness | Bare Neutral | Insulated Neutral | Bare Neutral | Insulated Neutral | ||
No.s×mm² | No.s | mm | mm | No.s | mm | mm | KN | mm | mm | kg/km | kg/km |
1x10+10 | 1 | 3.50 | 1.0 | 7 | 4.05 | 1.0 | 1.85 | 9.6 | 12.1 | 70 | 85 |
1x16+16 | 7 | 5.10 | 1.2 | 7 | 5.13 | 1.2 | 2.89 | 12.6 | 15.0 | 110 | 133 |
1x25+25 | ≥6 | 6.20 | 1.2 | 7 | 6.39 | 1.2 | 4.28 | 15.0 | 17.4 | 164 | 191 |
1x35+35 | ≥6 | 7.20 | 1.4 | 7 | 7.56 | 1.4 | 5.82 | 17.5 | 20.4 | 227 | 265 |
1x50+50 | ≥6 | 8.30 | 1.4 | 7 | 9.06 | 1.4 | 8.08 | 20.1 | 23.0 | 314 | 359 |
1x70+70 | ≥12 | 10.00 | 1.4 | 7 | 10.71 | 1.4 | 10.64 | 23.5 | 26.3 | 433 | 483 |
1x95+95 | ≥15 | 11.60 | 1.4 | 7 | 12.48 | 1.4 | 14.44 | 26.9 | 29.7 | 577 | 635 |
1x120+120 | ≥15 | 13.00 | 1.6 | 19 | 14.20 | 1.6 | 19.38 | 30.4 | 33.6 | 731 | 806 |
1x150+150 | ≥15 | 14.60 | 1.8 | 19 | 15.85 | 1.8 | 23.51 | 34.1 | 37.7 | 913 | 1007 |
2x10+10 | 1 | 3.50 | 1.0 | 7 | 4.05 | 1.0 | 1.85 | 10.8 | 13.0 | 113 | 128 |
2x16+16 | 7 | 5.10 | 1.2 | 7 | 5.13 | 1.2 | 2.89 | 14.5 | 16.2 | 176 | 199 |
2x25+25 | ≥6 | 6.20 | 1.2 | 7 | 6.39 | 1.2 | 4.28 | 16.9 | 18.7 | 259 | 286 |
2x35+35 | ≥6 | 7.20 | 1.4 | 7 | 7.56 | 1.4 | 5.82 | 19.7 | 21.8 | 359 | 397 |
2x50+50 | ≥6 | 8.30 | 1.4 | 7 | 9.06 | 1.4 | 8.08 | 22.4 | 24.5 | 492 | 537 |
2x70+70 | ≥12 | 10.00 | 1.4 | 7 | 10.71 | 1.4 | 10.64 | 26.1 | 28.1 | 673 | 723 |
2x95+95 | ≥15 | 11.60 | 1.4 | 7 | 12.48 | 1.4 | 14.44 | 29.6 | 31.6 | 893 | 950 |
2x120+120 | ≥15 | 13.00 | 1.6 | 19 | 14.20 | 1.6 | 19.38 | 33.5 | 35.8 | 1130 | 1205 |
2x150+150 | ≥15 | 14.60 | 1.8 | 19 | 15.85 | 1.8 | 23.51 | 37.5 | 40.1 | 1414 | 1507 |
3x10+10 | 1 | 3.50 | 1.0 | 7 | 4.05 | 1.0 | 1.85 | 12.4 | 14.6 | 155 | 170 |
3x16+16 | 7 | 5.10 | 1.2 | 7 | 5.13 | 1.2 | 2.89 | 16.7 | 18.1 | 243 | 265 |
3x25+25 | ≥6 | 6.20 | 1.2 | 7 | 6.39 | 1.2 | 4.28 | 19.4 | 20.9 | 354 | 381 |
3x35+35 | ≥6 | 7.20 | 1.4 | 7 | 7.56 | 1.4 | 5.82 | 22.6 | 24.4 | 490 | 529 |
3x50+50 | ≥6 | 8.30 | 1.4 | 7 | 9.06 | 1.4 | 8.08 | 25.5 | 27.3 | 670 | 715 |
3x70+70 | ≥12 | 10.00 | 1.4 | 7 | 10.71 | 1.4 | 10.64 | 29.6 | 31.3 | 913 | 963 |
3x95+95 | ≥15 | 11.60 | 1.4 | 7 | 12.48 | 1.4 | 14.44 | 33.6 | 35.3 | 1208 | 1266 |
3x120+120 | ≥15 | 13.00 | 1.6 | 19 | 14.20 | 1.6 | 19.38 | 37.9 | 39.8 | 1530 | 1604 |
3x150+150 | ≥15 | 14.60 | 1.8 | 19 | 15.85 | 1.8 | 23.51 | 42.5 | 44.7 | 1914 | 2008 |
