ACSR overhead transmission lines 0.6/1kv xlpe insulated aerial bundle cable

Minimum Order Quantity : 1000 Meter/M Price : US $1-50 / Meters | 1000 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Model Number: ABC cable

Detail Information

Insulation Material: XLPE Type: Low Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: PVC Product Name: ACSR Overhead Transmission 0.6/1kv Xlpe Insulated Aerial Bundle Cable
Rated Voltage: 0.6/1KV Conductor: Al/Al Alloy/Cu
Core: 2,3,4,5,6, Insulation: XLPE/PVC/PE
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel Color: Black
High Light:

lv abc cable

,

aerial bundled cable

Product Description

ACSR overhead transmission lines 0.6/1kv xlpe insulated aerial bundle cable

Product Description

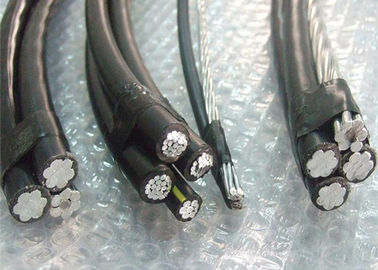

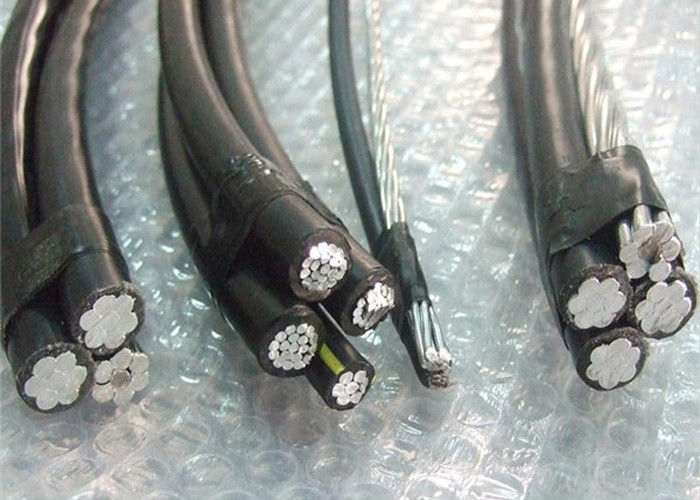

abc cable.jpg



Application:

The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃



Applicable Standard:

IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474





Cable Structure:

Conductor: Al/Al Alloy/Cu

Insulation: XLPE/PE/PVC









ACSR Conductor Supported Service Drop Cable- ICEA S-76-474



Code Name Size Al Phase Core ACSR Messenger Rated Strength Approx. Overall Dia. Approx. Weight
Corss-section Area Str.No. Dia. Insulation Nominal Thickness Cross-section Area Al Wire St Wire Stranded Dia.

Str.

No.

Dia.

Str.

No.

Dia.
AWG/MCM mm² No.s mm mm mm² No.s mm No.s mm mm KN mm kg/km
DUPLEX
Shepherd 1×6+6 13.3 7 4.68 1.14 13.3 6 1.68 1 1.68 5.04 5.3 12 109
Terrier 1×4+4 21.1 7 5.7 1.14 21.15 6 2.12 1 2.12 6.36 8.3 14.34 165
Chow 1×2+2 33.6 7 7.2 1.14 33.62 6 2.67 1 2.67 8.01 12.7 17.49 254
Bull 1×1/0+1/0 53.5 19 9.2 1.52 53.51 6 3.37 1 3.37 10.11 19.5 22.35 408
TRIPLEX
Voluta 2×6+6 13.3 7 4.66 1.14 13.3 6 1.68 1 1.68 5.04 5.3 13.58 166
Periwinle 2×4+4 21.1 7 4.7 1.14 21.15 6 2.12 1 2.12 6.36 8.3 16.03 248
Conch 2×2+6 33.6 7 7.2 1.14 13.3 6 2.67 1 2.67 8.01 12.7 19.36 377
Neritina 2×1/0+1/0 53.5 7 9.2 1.52 53.51 6 3.37 1 3.34 10.02 19.5 24.77 607
Triton 2×2/0+2/0 67.4 19 10.3 1.52 67.44 6 3.78 1 3.78 11.34 23.6 27.3 751
Mursia 2×3/0+3/0 85 19 11.6 1.52 85.03 6 4.25 1 4.25 12.75 29.4 30.18 931
Zuzara 2×4/0+4/0 107.2 19 13 1.52 107.22 6 4.77 1 4.77 14.31 37.1 33.31 1156
Limpet 2×336.4+336.4 170.4 19 16.56 2.03 170.46 18 3.47 1 3.47 17.35 38.6 42.07 1704
Strombus 2×4+6 21.1 7 5.7 1.14 13.3 6 1.68 1 1.68 5.04 5.3 15.08 216
Cockle 2×2+4 33.6 7 7.2 1.14 21.15 6 2.12 1 2.12 6.36 8.3 18.18 327
Janthina 2×1/0+2 53.5 7 9.2 1.52 33.62 6 2.67 1 2.67 8.01 12.7 23.33 527
Ranella 2×1/0+2 53.5 19 9.2 1.52 33.62 6 2.67 1 2.67 8.01 12.7 23.33 527
Clio 2×2/0+1 67.4 19 10.3 1.52 42.41 6 3 1 3 9 15.8 25.62 649
Aega 2×3/0+1/0 85 19 11.6 1.52 53.51 6 3.37 1 3.37 10.11 19.5 28.28 803
Cerapus 2×4/0+2/0 107.2 19 13 1.52 67.44 6 3.78 1 3.78 11.34 23.6 31.18 994
Cowry 2×336.4+4/0 170.4 19 16.59 2.03 107.22 6 4.77 1 4.77 14.31 37.1 39.93 1597























Click for more information













.jpg





ABC CABLE 2 * 16mm2.png ABC CABLE WITH BARE NEUTRAL MESSENGER.jpg ABC CABLE WITH INSULATED NEUTRAL WIRE.png ABC CABLE NFC33209.png ABC CABLE FOR AMERICA MARKET.png

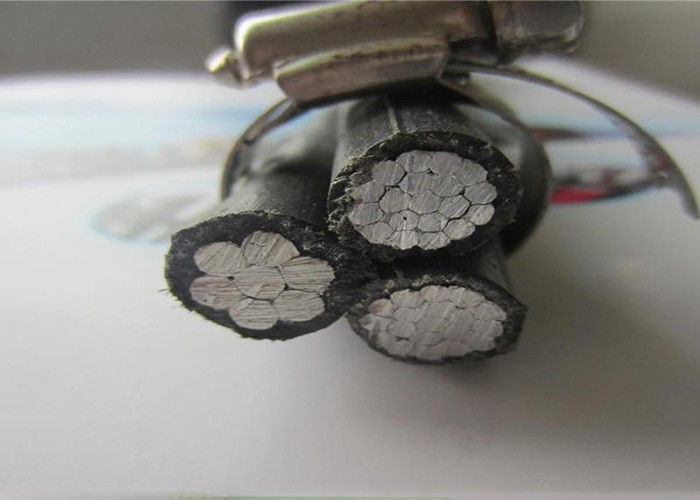

ABC CABLE 2×16mm2

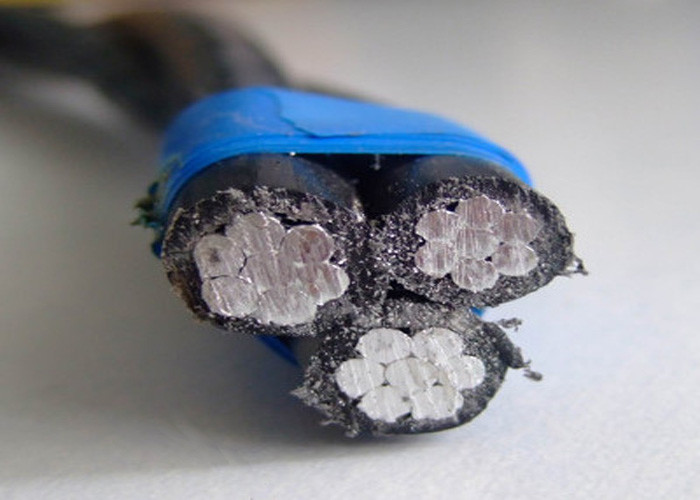

ABC CABLE WITH BARE NEUTRAL MESSENGER

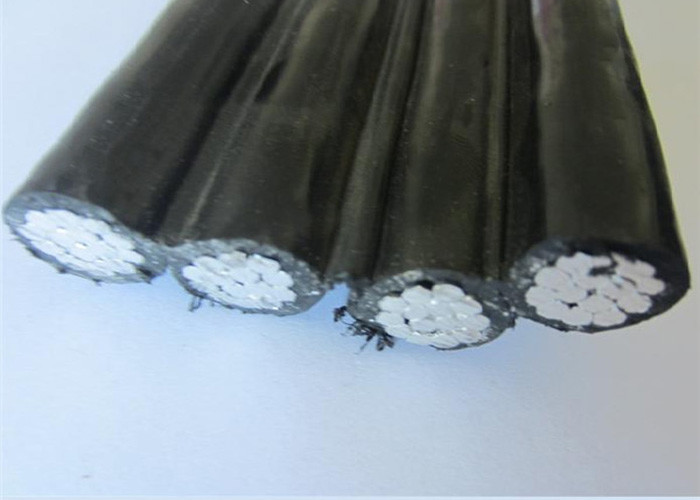

ABC CABLE WITH INSULATED NEUTRAL WIRE

ABC CABLE NFC33209

ABC CABLE FOR AMERICA MARKET
