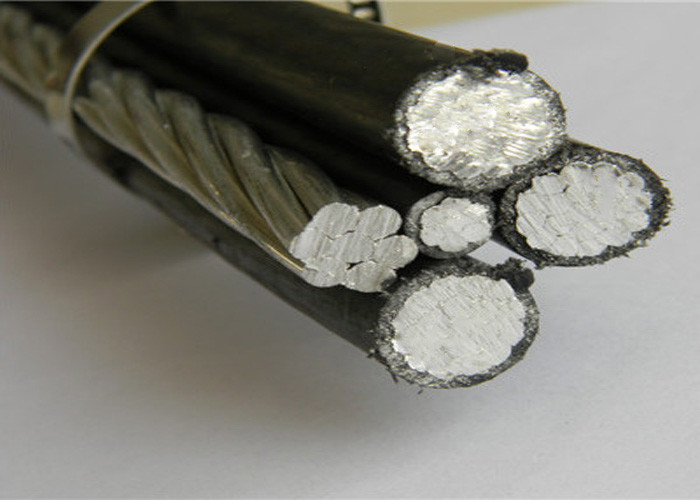

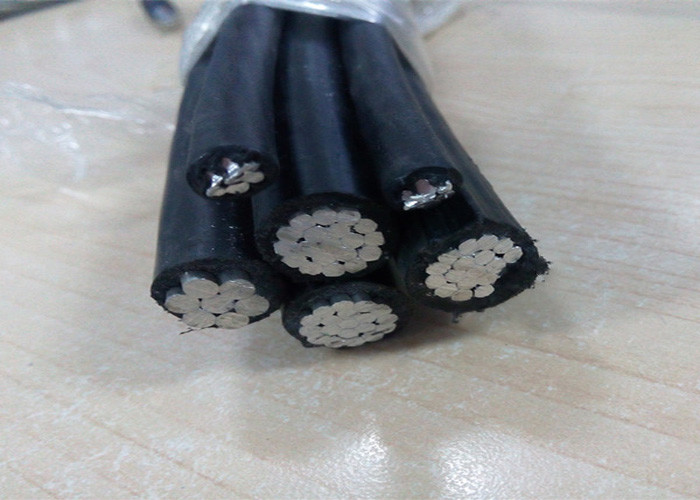

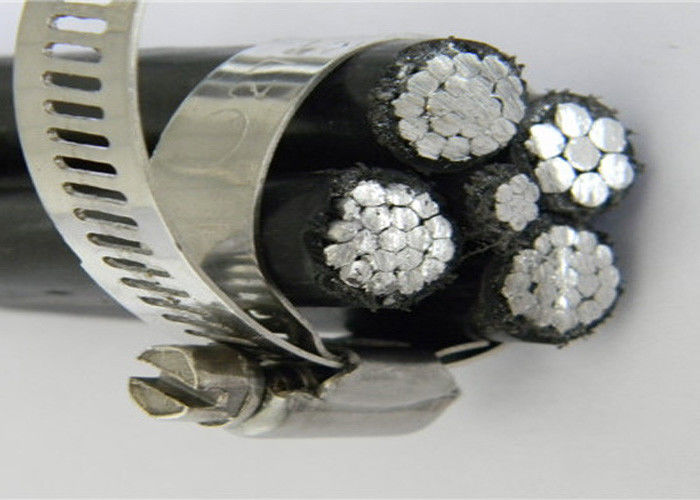

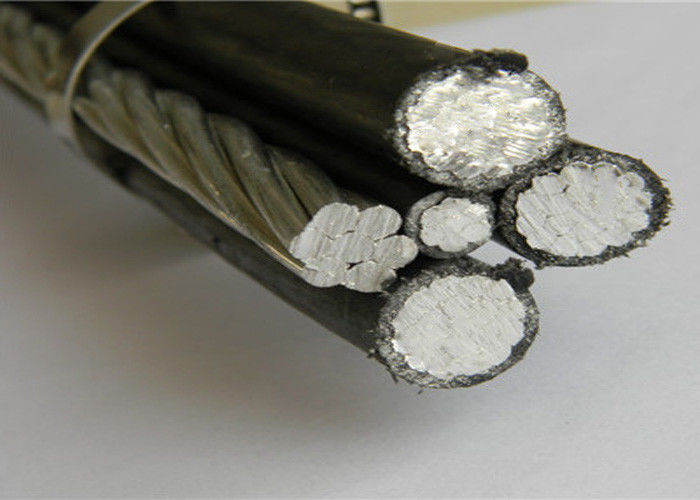

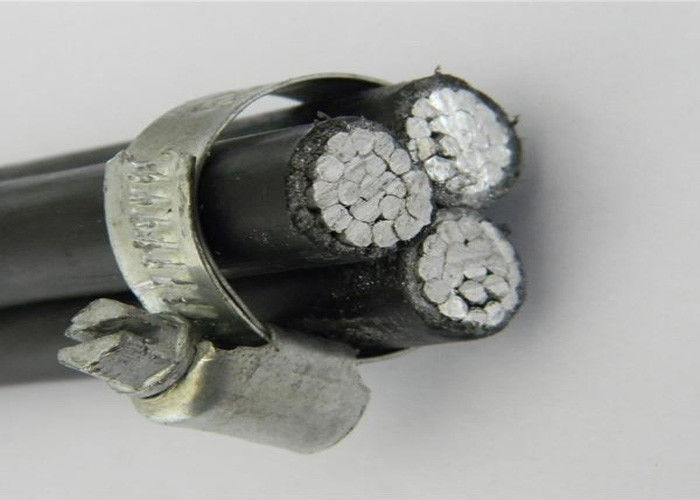

Al/Al alloy/Cu conductor XLPE abc cable with insulated neutral wire

Minimum Order Quantity : 1000 Meter/M Price : US $50-300 / Meters | 1000 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Model Number: ABC cable

Detail Information

Insulation Material: XLPE Type: Low Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: PVC Product Name: Al/Al Alloy/Cu Conductor XLPE Abc Cable With Insulated Neutral Wire
Rated Voltage: 0.6/1KV Conductor: Al/Al Alloy/Cu
Core: 2,3,4,5,6, Insulation: XLPE/PVC/PE
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel Color: Black
High Light:

aerial bundled cable

,

aluminum aerial cable

Product Description

Al/Al alloy/Cu conductor XLPE abc cable with insulated neutral wire

Product Description

110kv xlpe insulated high voltage underground armored power cable.jpg



Application:

The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃



Applicable Standard:

IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474





Cable Structure:

Conductor: Al/Al Alloy/Cu

Insulation: XLPE/PE/PVC





Product date sheet



Core No.× Conductor Size Phase Core Neutral Core Approx.Overall Dia. Approx.Weight
Conductor Insulation Conductor   Rated Strength
Str. No. Dia. Nominal Thickness Str. No. Conductor Dia. Nominal Thickness Bare Neutral Insulated Neutral Bare Neutral Insulated Neutral
No.s×mm² No.s mm mm No.s mm mm KN mm mm kg/km kg/km
1x10+10 1 3.50 1.0 7 4.05 1.0 1.85 9.6 12.1 70 85
1x16+16 7 5.10 1.2 7 5.13 1.2 2.89 12.6 15.0 110 133
1x25+25 ≥6 6.20 1.2 7 6.39 1.2 4.28 15.0 17.4 164 191
1x35+35 ≥6 7.20 1.4 7 7.56 1.4 5.82 17.5 20.4 227 265
1x50+50 ≥6 8.30 1.4 7 9.06 1.4 8.08 20.1 23.0 314 359
1x70+70 ≥12 10.00 1.4 7 10.71 1.4 10.64 23.5 26.3 433 483
1x95+95 ≥15 11.60 1.4 7 12.48 1.4 14.44 26.9 29.7 577 635
1x120+120 ≥15 13.00 1.6 19 14.20 1.6 19.38 30.4 33.6 731 806
1x150+150 ≥15 14.60 1.8 19 15.85 1.8 23.51 34.1 37.7 913 1007
2x10+10 1 3.50 1.0 7 4.05 1.0 1.85 10.8 13.0 113 128
2x16+16 7 5.10 1.2 7 5.13 1.2 2.89 14.5 16.2 176 199
2x25+25 ≥6 6.20 1.2 7 6.39 1.2 4.28 16.9 18.7 259 286
2x35+35 ≥6 7.20 1.4 7 7.56 1.4 5.82 19.7 21.8 359 397
2x50+50 ≥6 8.30 1.4 7 9.06 1.4 8.08 22.4 24.5 492 537
2x70+70 ≥12 10.00 1.4 7 10.71 1.4 10.64 26.1 28.1 673 723
2x95+95 ≥15 11.60 1.4 7 12.48 1.4 14.44 29.6 31.6 893 950
2x120+120 ≥15 13.00 1.6 19 14.20 1.6 19.38 33.5 35.8 1130 1205
2x150+150 ≥15 14.60 1.8 19 15.85 1.8 23.51 37.5 40.1 1414 1507
3x10+10 1 3.50 1.0 7 4.05 1.0 1.85 12.4 14.6 155 170
3x16+16 7 5.10 1.2 7 5.13 1.2 2.89 16.7 18.1 243 265
3x25+25 ≥6 6.20 1.2 7 6.39 1.2 4.28 19.4 20.9 354 381
3x35+35 ≥6 7.20 1.4 7 7.56 1.4 5.82 22.6 24.4 490 529
3x50+50 ≥6 8.30 1.4 7 9.06 1.4 8.08 25.5 27.3 670 715
3x70+70 ≥12 10.00 1.4 7 10.71 1.4 10.64 29.6 31.3 913 963
3x95+95 ≥15 11.60 1.4 7 12.48 1.4 14.44 33.6 35.3 1208 1266
3x120+120 ≥15 13.00 1.6 19 14.20 1.6 19.38 37.9 39.8 1530 1604
3x150+150 ≥15 14.60 1.8 19 15.85 1.8 23.51 42.5 44.7 1914 2008
