Overhead transmission aluminum wire Gnat conductor AAC with BS215

Minimum Order Quantity : 200 Meter/Me Price : US $1-20 / Meters | 200 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN CABLE GROUP
Model Number: AAC

Detail Information

Insulation Material: N/A Type: Medium Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: N/A Product Name: Overhead Transmission Aluminum Wire Gnat Conductor AAC With BS215
Voltage: High/Medium/Low Voltage Conductor: All Aluminum Conductor
Construction: Concentrically Stranded Standard: IEC61089, ASTM B231, AAC BS215
Package: Wooden Reel, Iron-wooden Reel, Steel Reel Certificate: ISO9001
OEM Or ODM: YES
High Light:

all aluminum alloy conductor

,

transmission line conductor

Product Description

Overhead transmission aluminum wire Gnat conductor AAC with BS215

Product Description

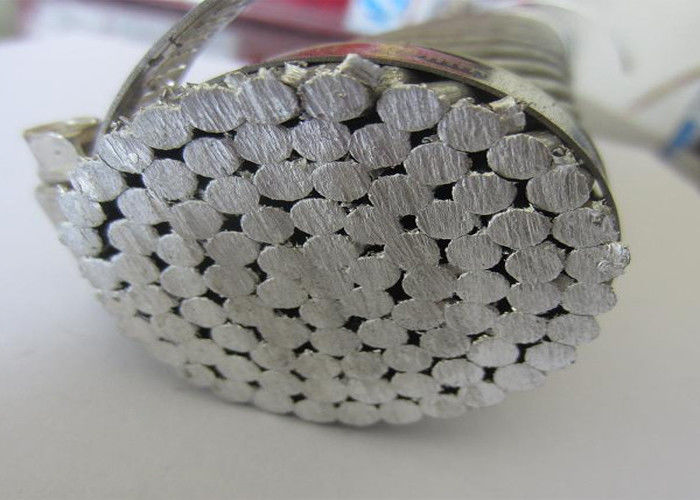

Bare conductor.jpg



Application:

Overhead transmission and primary and secondary distribution.



Applicable Standard:

IEC61089, ASTM B231, AAC BS215



Production Scope:

Max. size 2000mm2( 4000MCM)/ Max. str. no. 127 wires



Construction:

Aluminum 1350-H19 wires, concentrically stranded











AAC-BS215









Code Name Nominal Cross-section Area Calculated Cross-section Area Stranding No. & Wire Dia. Approx.e Overall Dia. Approx. Weight Nominal breaking Strength Maximum D.C. Resistance at 20℃
mm2 mm2 No.s mm  mm kg/km daN Ω/km
Midge 22 25 7 2.06 6.18 64 399 1.2270
Aphis 25 67 7 3.35 10.05 170 411 1.0810
Gnat 25 29 7 2.21 6.63 74 459 1.0660
Weevil 30 34 3 3.66 7.88 87 486 0.9082
Mosquito 35 40 7 2.59 7.77 102 603 0.7762
Ladybird 40 47 7 2.79 8.37 118 687 0.6689
Ant 50 57 7 3.1 9.30 146 828 0.5419
Fly 60 69 7 3.4 10.20 175 990 0.4505
Bluebottle 70 80 7 3.66 10.98 203 1134 0.3881
Earwig 75 85 7 3.78 11.34 217 1194 0.3644
Grasshopper 80 91 7 3.91 11.73 232 1278 0.3406
Clegg 90 104 7 4.17 12.51 264 1453 0.2994
Wasp 100 115 7 4.39 13.17 292 1600 0.2702
Beetle 100 116 19 2.67 13.35 293 1742 0.2704
Bee 125 144 7 4.9 14.70 364 1994 0.2169
Cricket 150 172 7 5.36 16.08 435 2385 0.1818
Hornet 150 171 19 3.25 16.25 435 2570 0.1825
Caterpillar 175 202 19 3.53 17.65 513 2863 0.1547
Chafer 200 232 19 3.78 18.90 588 3240 0.1349
Spider 225 258 19 3.99 19.95 655 3601 0.1211
Cockroach 250 289 19 4.22 21.10 733 4040 0.1083
Butterfly 300 351 19 4.65 23.25 890 4875 0.0892
Moth 350 406 19 5 25.00 1029 5637 0.0771
Drone 350 405 37 3.58 25.06 1027 5745 0.0774
Locust 400 466 19 5.36 26.80 1182 6473 0.0671
Centipede 400 451 37 3.78 26.46 1145 6310 0.0694
Maybug 450 529 37 4.09 28.63 1340 7401 0.0593
Scorpion 500 576 37 4.27 29.89 1461 7998 0.0544
Cicada 600 683 37 4.65 32.55 1732 9495 0.0459
Tarantula 750 864 37 5.23 36.61 2192 12010 0.0363



















Click for more information











Related Products

.jpg



4.3.jpg 4.4.jpg 4.2.jpg 4.5.jpg 4.6.jpg

AAC

AAAC

ACSR

BCC

GUY WIRE/

STAY WIRE

Packaging & Shipping


Company Information




Our Certificate

Overhead transmission aluminum wire Gnat conductor AAC with BS215 9


Our Services

Overhead transmission aluminum wire Gnat conductor AAC with BS215 10

1. Product consultation ,analysis, design, production

2. Provide industry information, Product Training, Assist Product Marketing

3. Provide project support such as tender assistant, cooperate visit customers,FAT support

4. Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples

5. OEM service

6. Other services customized by clients




FAQ






Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.



Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .



Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.
