Bare Acsr Overhead Line Conductor Cable With Specification Table

Minimum Order Quantity : 200 Meter/Me Price : US $1-20 / Meters | 200 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN CABLE GROUP
Model Number: ACSR

Detail Information

Insulation Material: N/A Type: Medium Voltage
Application: Overhead Conductor Material: Aluminum Conductor Steel Reinforced
Jacket: N/A Product Name: Bare Acsr Conductor Acsr Conductor Cable With Specification Table
Voltage: High/Medium/Low Voltage Conductor: Aluminum Conductor Steel Reinforced
Construction: Concentrically Stranded Standard: IEC61089 , ASTM B-232, BS215
Production Scope: Max. Size 3500MCM, Max. Str. No. 91 Package: Wooden Reel, Iron-wooden Reel, Steel Reel
Certificate: ISO9001 OEM Or ODM: YSE
High Light:

transmission line conductor

,

stranded bare copper wire

Product Description

Bare acsr conductor details acsr conductor cable with specification table

Product Description

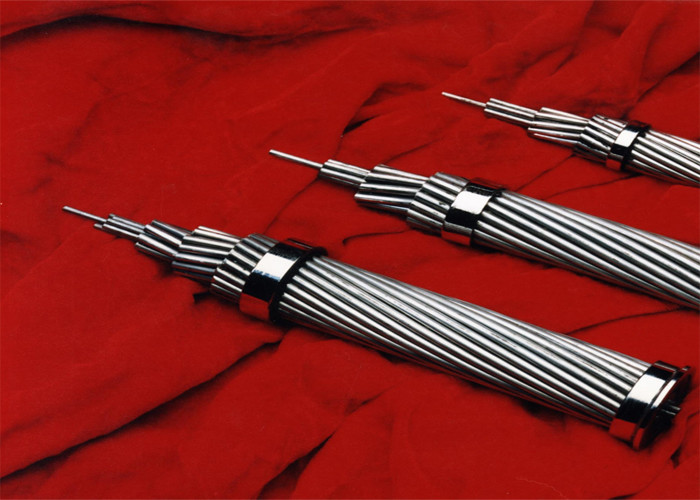

Bare conductor.jpg



Application:

AAAC conductor is used for overhead distribution and transmission lines adjacent to ocean coastlines.



Applicable Standard:

IEC61089,ASTM B-399,BS3242,NFC 34125



Production Scope:

Max. Size 2500MCM, Max. str. No. 91Wires



Construction:

Concentrically stranded









IEC61089







Code Name Cross-section Area Number of wires Approx. Overall Dia. Approx. Weight Rated Strength D.C. Resistance
Alum. Steel Total
mm² mm² mm² Al St mm kg/km KN Ω/km
16 16 2.67 18.7 6 1 5.52 65 6.08 1.7934
25 25 4.17 29.2 6 1 6.90 101 9.13 1.1478
40 40 6.67 46.7 6 1 8.73 162 14.40 0.7174
63 63 10.50 73.5 6 1 10.98 256 21.63 0.4555
100 100 16.70 117 6 1 13.83 406 34.33 0.2869
125 125 6.94 132 18 1 14.85 398 29.17 0.2304
125 125 20.40 145 26 7 15.64 501 45.69 0.2310
160 160 8.89 169 18 1 16.80 509 36.18 0.1800
160 160 26.10 186 26 7 17.74 645 57.69 0.1805
200 200 11.10 211 18 1 18.80 638 44.22 0.1440
200 200 32.60 233 26 7 19.81 805 70.13 0.1444
250 250 24.60 275 22 7 21.53 879 68.72 0.1154
250 250 40.70 291 26 7 22.16 1007 87.67 0.1155
315 315 21.80 337 45 7 23.91 1041 79.03 0.0917
315 315 51.30 366 26 7 24.87 1269 106.83 0.0917
400 400 27.70 428 45 7 26.88 1315 98.36 0.0722
400 400 51.90 452 54 7 27.63 1506 123.04 0.0723
450 450 31.10 481 45 7 28.56 1485 107.47 0.0642
450 450 58.30 508 54 7 29.34 1699 138.42 0.0643
500 500 34.60 535 45 7 30.09 1648 119.41 0.0578
500 500 64.80 565 54 7 30.87 1881 153.80 0.0578
560 560 38.70 599 45 7 31.83 1845 133.74 0.0516
560 560 70.90 631 54 19 32.67 2094 172.59 0.0516
630 630 43.60 674 45 7 25.32 2074 150.45 0.0459
630 630 79.80 710 54 19 34.65 2354 191.77 0.0459
710 710 49.10 759 45 7 35.85 2339 169.56 0.0407
710 710 89.90 800 54 1 36.81 1993 216.12 0.0407
800 800 34.60 835 72 7 37.61 2474 167.41 0.0361
800 800 66.70 867 84 7 38.28 2722 205.33 0.0362
800 800 101.00 901 54 19 39.06 2995 243.52 0.0362
900 900 38.90 939 72 7 39.90 2785 188.33 0.0321
900 900 75.00 975 84 7 40.59 3061 226.50 0.0322
1000 1000 43.20 1043 72 7 42.08 3099 209.26 0.0259
1120 1120 47.30 1167 72 19 44.50 3456 234.53 0.0258
1120 1120 91.20 1211 84 19 45.32 3798 283.17 0.0258
1250 1250 102.00 1352 84 19 47.85 4235 316.04 0.0232
1250 1250 52.80 1303 72 19 47.00 3855 261.75 0.0231



















Click for more information











Related Products

 .jpg

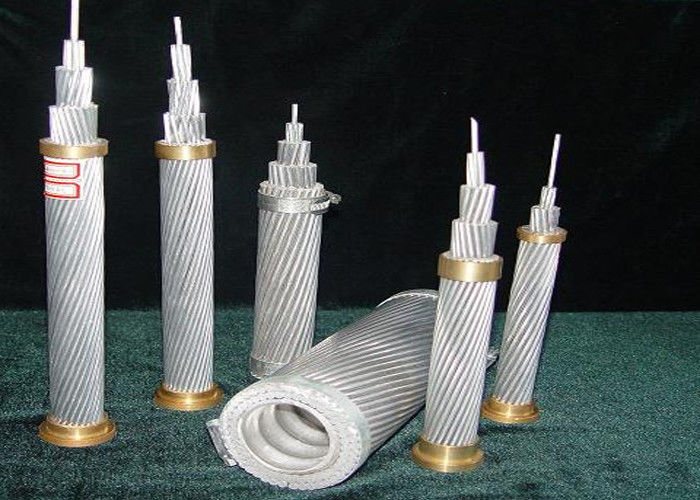

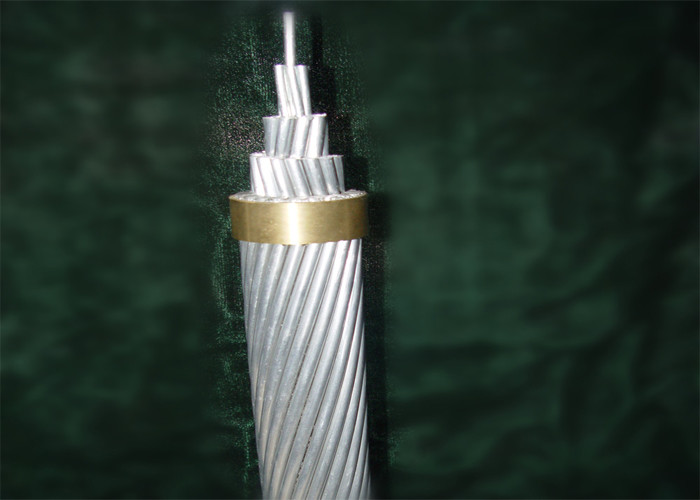

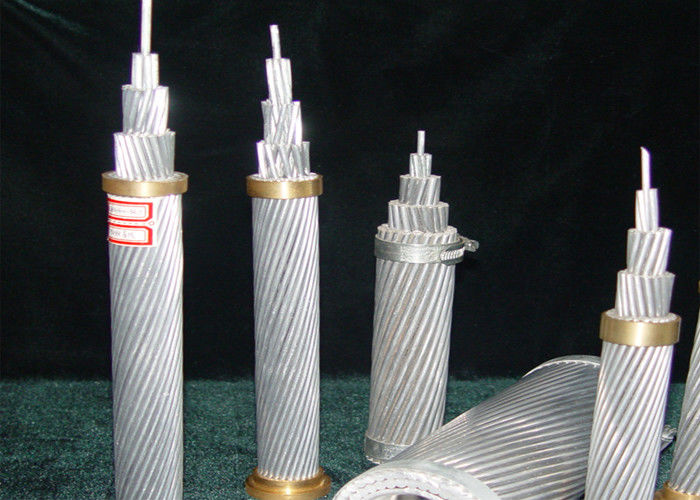

Bare Acsr Overhead Line Conductor Cable With Specification Table 2 Bare Acsr Overhead Line Conductor Cable With Specification Table 3 Bare Acsr Overhead Line Conductor Cable With Specification Table 4 Bare Acsr Overhead Line Conductor Cable With Specification Table 5 Bare Acsr Overhead Line Conductor Cable With Specification Table 6

AAC

AAAC

ACSR

BCC

GUY WIRE/

STAY WIRE



Packaging & Shipping


Company Information




Our Certificate

Bare Acsr Overhead Line Conductor Cable With Specification Table 9


Our Services

Bare Acsr Overhead Line Conductor Cable With Specification Table 10

1. Product consultation ,analysis, design, production

2. Provide industry information, Product Training, Assist Product Marketing

3. Provide project support such as tender assistant, cooperate visit customers,FAT support

4. Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples

5. OEM service

6. Other services customized by clients






FAQ






Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.



Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .



Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.



Looking forward to cooperating with you.
