Bare Stranded Aluminum Aaac Conductor Specification IEC61089,ASTM B-399,BS3242,NFC 34125

Minimum Order Quantity : 200 Meter/Me Price : US $1-20 / Meters | 200 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN CABLE GROUP
Model Number: AAAC

Detail Information

Insulation Material: N/A Type: High Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: N/A Product Name: Bare Stranded AAAC Aluminum Conductor Specification
Voltage: High/Medium/Low Voltage Conductor: Aluminium-alloy
Construction: Concentrically Stranded Standard: IEC61089,ASTM B-399,BS3242,NFC 34125
Package: Wooden Reel, Iron-wooden Reel, Steel Reel
High Light:

all aluminum alloy conductor

,

transmission line conductor

Product Description

Bare Stranded AAAC aluminum Conductor Specification

Product Description

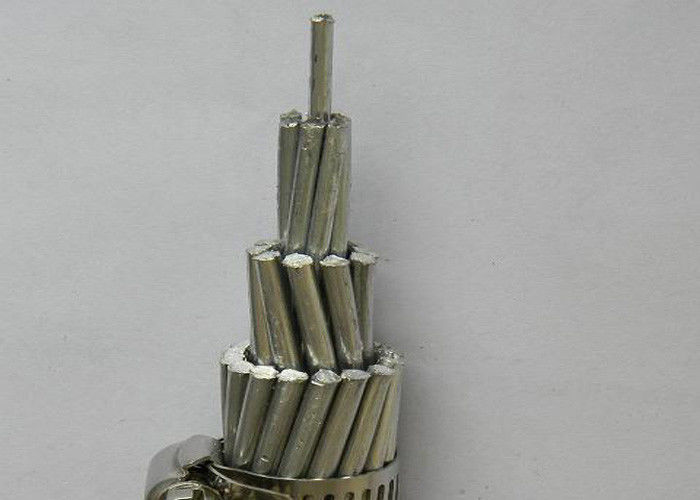

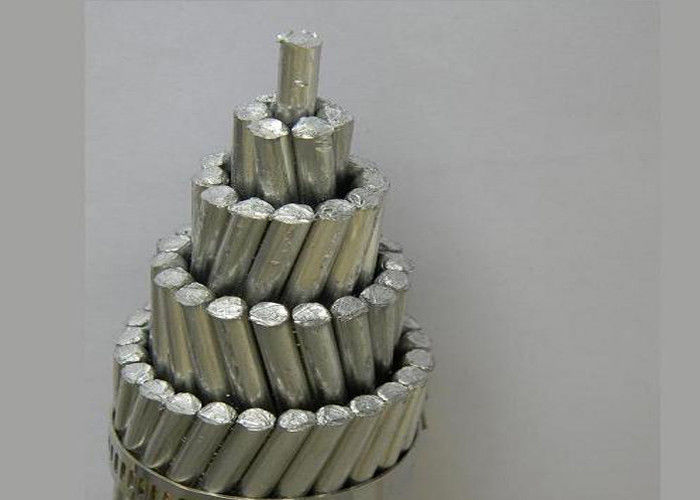

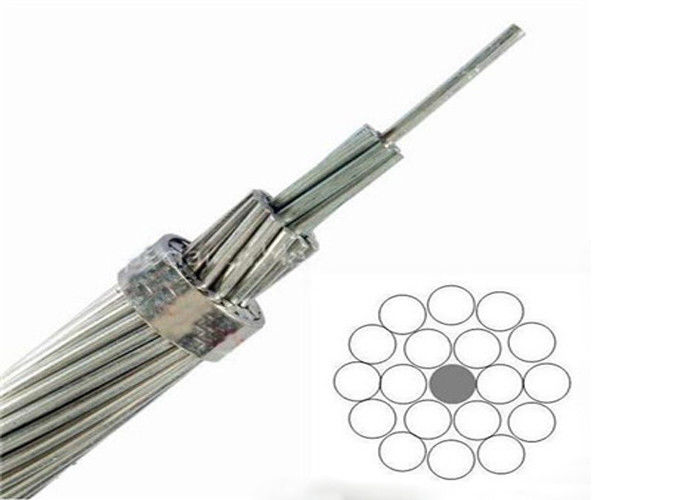

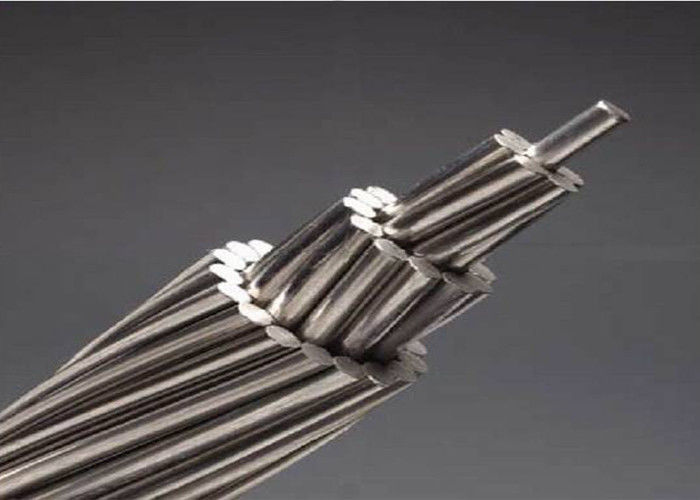

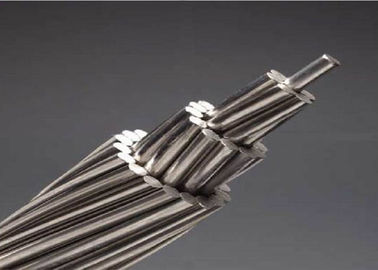

Bare conductor.jpg



Application:

AAAC conductor is used for overhead distribution and transmission lines adjacent to ocean coastlines.



Applicable Standard:

IEC61089,ASTM B-399,BS3242,NFC 34125



Production Scope:

Max. Size 2500MCM, Max. str. No. 91Wires



Construction:

Concentrically stranded





 All Aluminum-alloy Conductor Line Wire- IEC61089







Cross-section Area Stranding No.& Wire No.s Approx.Overall Dia. Approx. Weight Rated Strength Max.D.C.Resistance at 20℃
mm² No.s mm mm kg/km KN Ω/km
18.4 7 1.83 5.49 50.4 5.43 1.7896
28.8 7 2.29 6.87 78.7 8.49 1.1453
46.0 7 2.89 8.67 125.9 13.58 0.7158
72.5 7 3.36 10.08 198.3 21.39 0.4545
115.0 19 2.78 13.9 316.3 33.95 0.2877
144.0 19 3.10 15.5 395.4 42.44 0.2302
184.0 19 3.51 17.55 506.1 54.32 0.1798
230.0 19 3.93 19.65 632.7 67.91 0.1439
288.0 19 4.39 21.95 790.8 84.68 0.1151
363.0 37 3.53 24.71 998.9 106.95 0.0916
460.0 37 3.98 27.86 1268.4 135.81 0.0721
518.0 37 4.22 29.54 1426.9 153.79 0.0641
575.0 37 4.45 31.15 1585.5 169.76 0.0577
645.0 61 3.67 33.03 1778.4 190.14 0.0516
725.0 61 3.89 35.01 2000.7 213.9 0.0458
817.0 61 4.13 37.17 2254.8 241.07 0.0407
921.0 61 4.38 39.42 2540.6 271.62 0.0361
1036.0 91 3.81 41.91 2861.1 305.58 0.0321
1151.0 91 4.01 44.11 3179 339.53 0.0289
1289.0 91 4.25 46.75 3560.5 380.27 0.0258
1439.0 91 4.49 49.39 3973.7 424.41 0.0231













Click for more information
