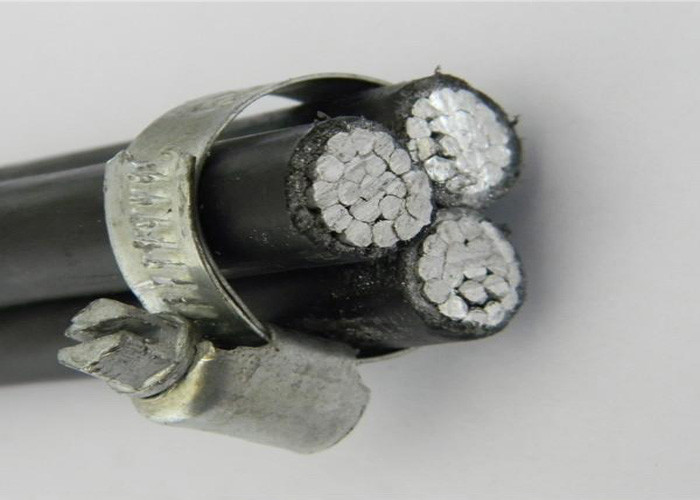

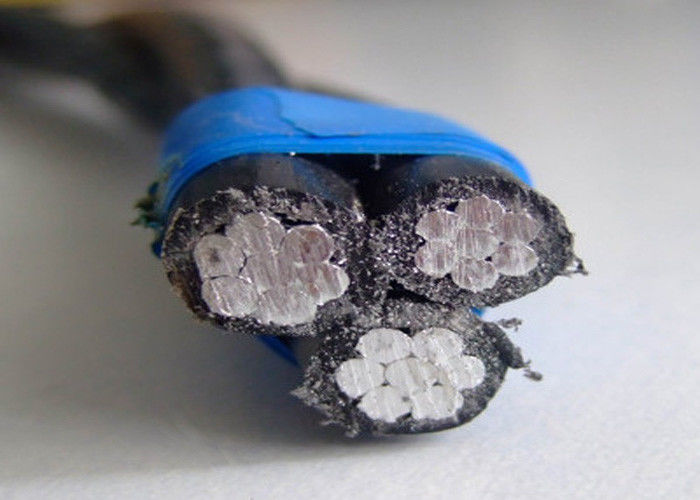

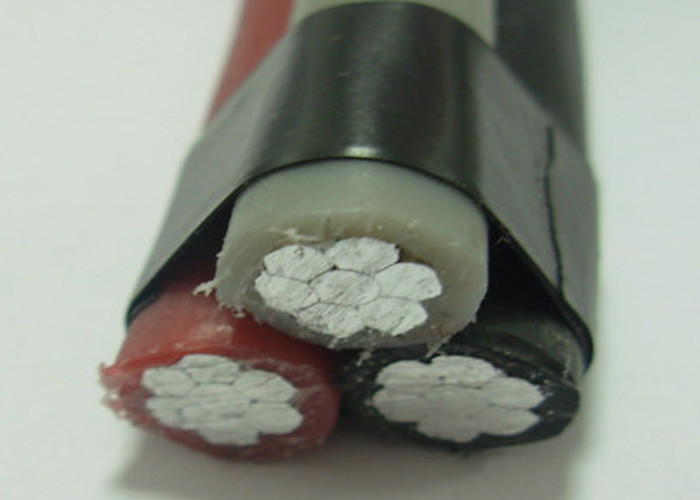

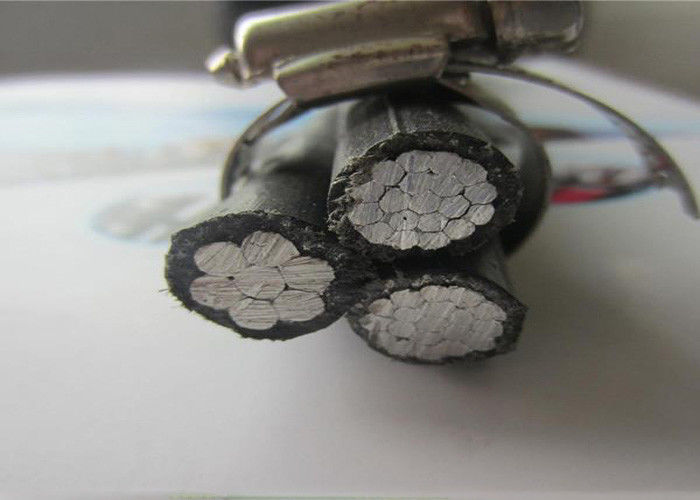

HV Copper / Aluminum Aerial Bundle Conductor Cable 6.35/11KV 3x95mm2 3X185mm2

Minimum Order Quantity : 200 Meter/Me Price : US $1-50 / Meters | 200 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Model Number: MV

Detail Information

Insulation Material: XLPE Type: Medium Voltage
Application: Underground Conductor Material: Copper /Aluminum
Jacket: PVC Product Name: 33kv Cable Xlpe Price 3core 400 Sqmm Cu XLPE Cws Swa PVC Power Cable
Rated Voltage: 1-35KV Conductor: Al/Cu
Core: 1 Core / 3 Core Sheath: PVC/PE
Armour: SWA STA AWA ATA Color: Black/Red
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel
High Light:

aerial bundled cable

,

aluminum aerial cable

Product Description

HV Copper / Aluminum Aerial Bundle Conductor Cable 6.35/11KV 3x95mm2 3X185mm2

Product Description

armoured cable.jpg



Application:

The product is used in power transmission and  distribution line at voltage up to  46KV. It does not only have  excellent  electric, mechanical properties, but  also has powerful resistance against chemical corrosion, heat aging and environmental stress.



Applicable Standard:

We can produce according to standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C-68.3, ICEA S-93-639, ICEA S-94-649, CSA C68.5, IS 7098, etc.



Cable Characteristics:

Rated Voltage: 1KV to 35KV

Cross-section area: up to 1000 .

Conductor long-time operating temperature: 90℃

Short circuit conductor highest temperature: 250℃





Cable Structure:

Core Number: 1 Core / 3 Core

Conductor: Cu / AL

Insulation: XLPE / TRXLPE

Metallic screen: Cu tape / Cu wire screen / Al-Plastic Tape screen

Armor type: AL Tape / AL Wire / STA / SWA

Outer sheath: PVC / PE / LDPE / LLDPE / LSHF







Product date sheet





 single core cable.jpg

Rated Voltage XLPE/TRXLPE Insulation Nominal Thickness Metal Screen Aemor Dimension
Copper Tape Copper Wire Tape Wire
KV mm mm mm mm mm
3.6/6 2.5-3.2 0.06-0.12 Dia.Min.0.9mm, Wire No. According to Screen Size 0.2-0.5 0.8-5.0
6/10 3.4 0.06-0.12 0.2-0.5 0.8-5.0
8.7/15 4.5 0.06-0.12 0.2-0.5 0.8-5.0
12/20 5.5 0.06-0.12 0.2-0.5 0.8-5.0
18/30 8 0.06-0.12 0.2-0.5 0.8-5.0















Click for more information









Related Products

 .jpg





.jpg 02.jpg MV3.jpg

220KV POWER CABLE

110KV POWER CABLE

3 CORE MV POWER CABLE

102.jpg MV-concentric02.jpg MV-NFC33226.02.jpg

SINGLE CORE MV POWER CABLE

CONCENTRIC MV POWER CABLE

NFC 33226 STANDARD UG POWER CABLE



Packaging & Shipping


Company Information




Our Certificate

HV Copper / Aluminum Aerial Bundle Conductor Cable 6.35/11KV 3x95mm2 3X185mm2 11


Our Services



HV Copper / Aluminum Aerial Bundle Conductor Cable 6.35/11KV 3x95mm2 3X185mm2 12



1.  Product consultation ,analysis, design, production

2.  Provide industry information, Product Training, Assist Product Marketing

3.  Provide project support such as tender assistant, cooperate visit customers,FAT support

4.  Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples

5.  OEM service

6.  Other services customized by clients


FAQ






Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.

Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !

Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.

Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.



Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!

Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .

Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .



Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.
