15KV 133% TS Copper Special Cables Armor X Cable XLPE Insulation
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
Detail Information |
|||
Insulation Material: | EPR | Conductor Material: | Flexible Copper |
---|---|---|---|
Jacket: | CPE | Certificate: | ISO9001/ISO14001 |
Product Name: | SHD-GC Cable | ||
High Light: | special power cable,copper welding cable |
Product Description
Application
Type SHD-GC Portable Power Cable is suitable for use in Industrial and light-to-medium mining applications, heavy-duty service and temporary as power supply cables. Motor, battery and generator leads. It is also used for mobile and portable electrical equipment.Industrial and light to medium duty mining applications.Heavy duty service as power supply cable.Mobile and portable electrical equipment.3 and 4 conductor use on three-phase AC systems where grounding is required

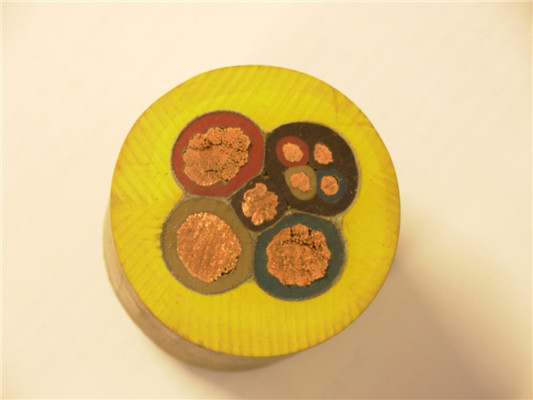

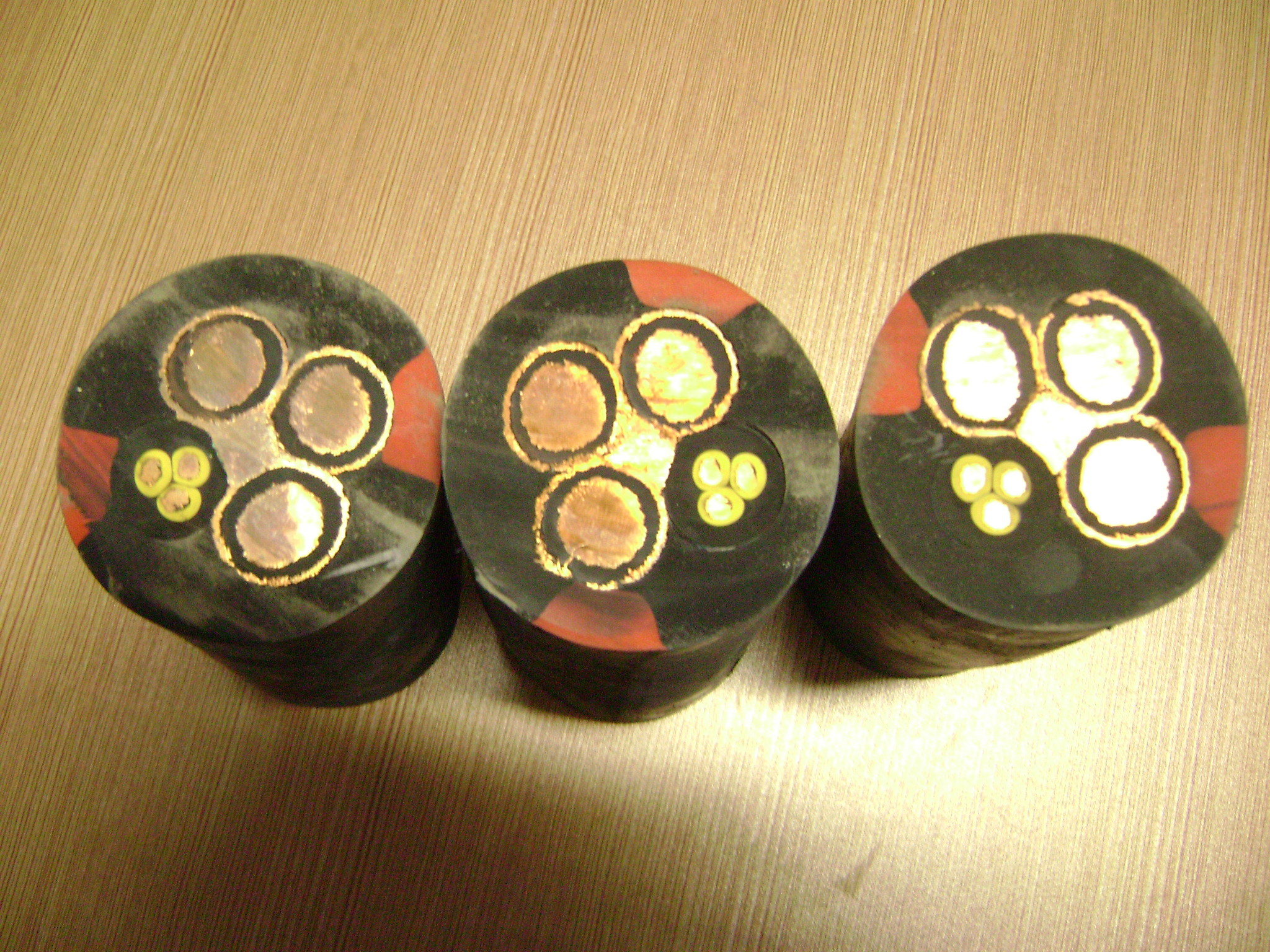

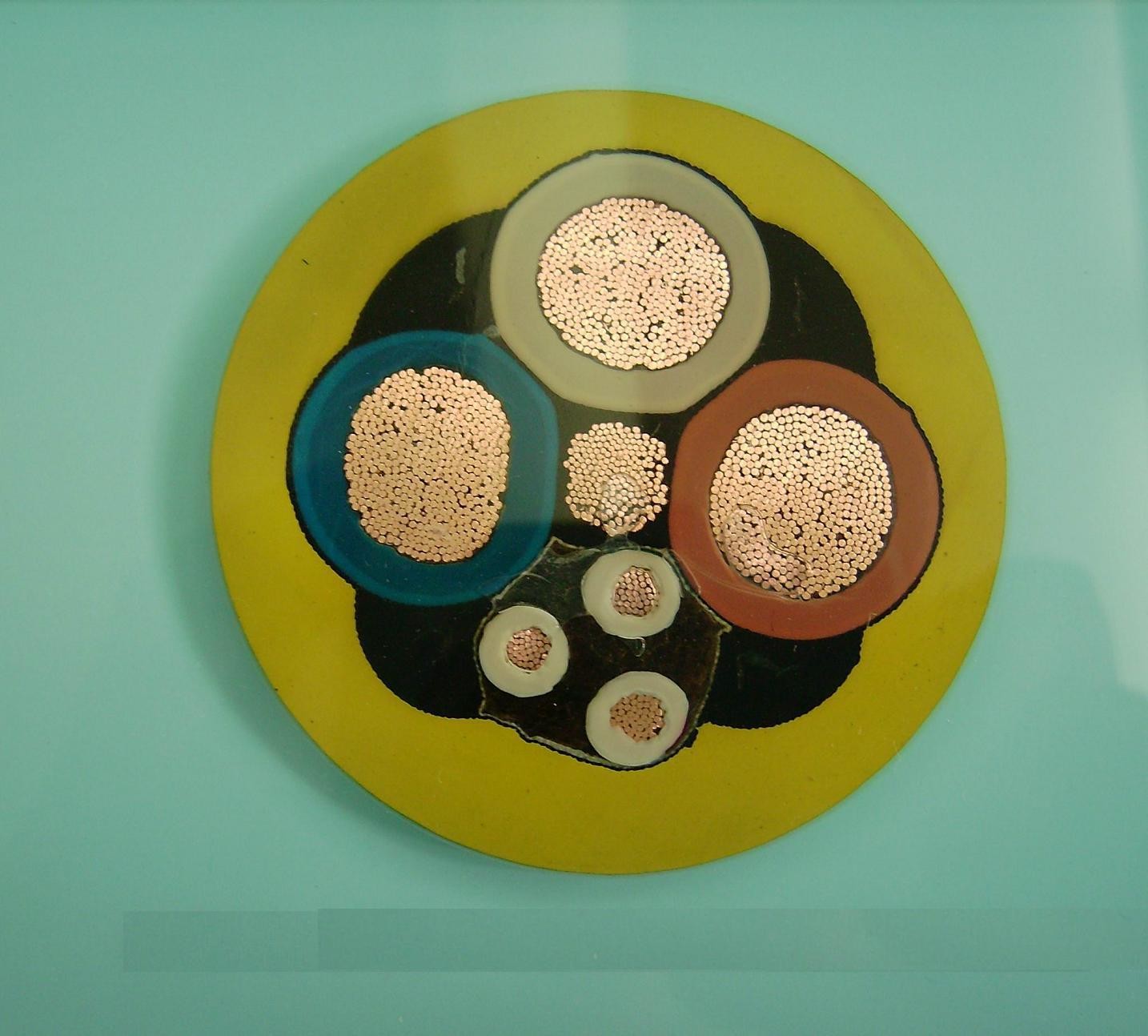

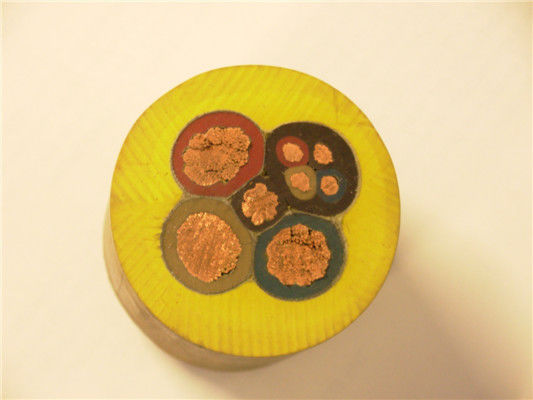

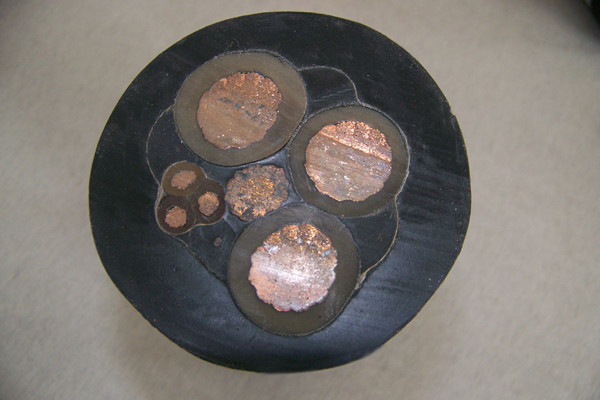

Construction
Conductor: 8 AWG to 500 MCM fully annealed stranded bare copper Stranding per ASTM B 174
Insulation: Premium grade oil resistant Ethylene Propylene (EPDM)
Jacket: Premium grade, water, sunlight, and oil resistant, flame-retardant, Chlorinated Polyethylene (CPE)
Features
Excellent impact and abrasion resistance
Withstand exposure to oil, acids, alkalies, heat, moisture and most chemicals
Indent printed for easy identification
Rope lay stranding for maximum flex life
Cable core bound for superior flexibility and toughness
Resists:Heat ,Oil,Weather,Ozone,Abrasion
Temp range:-40°C to 90°C Dry
-40°C to 75°C Wet
Phase Conductor Size | Number of Strands | Size of Each Strand | Nominal Insulation Thickness | Ground Conductor Size | Nominal Outer Jackst Thickness | Maximum Overall Diameter | Approximate Total Weight |
AWG or kcmil | AWG | mil | AWG | mil | in | lb/kft | |
6 | 133 | 27 | 70 | 10 | 155 | 1.35 | 1089 |
4 | 259 | 28 | 70 | 8 | 155 | 1.47 | 1371 |
2 | 259 | 26 | 70 | 6 | 170 | 1.67 | 1868 |
1 | 259 | 25 | 80 | 5 | 190 | 1.85 | 2312 |
1/0 | 259 | 24 | 80 | 4 | 190 | 1.95 | 2681 |
2/0 | 329 | 24 | 80 | 3 | 205 | 2.1 | 3152 |
3/0 | 413 | 24 | 80 | 2 | 205 | 2.24 | 3703 |
4/0 | 532 | 24 | 80 | 1 | 220 | 2.43 | 4348 |
250 | 608 | 24 | 95 | 1/0 | 220 | 2.63 | 4973 |
300 | 741 | 24 | 95 | 1/0 | 235 | 2.81 | 5752 |
350 | 855 | 24 | 95 | 2/0 | 235 | 2.95 | 6525 |
500 | 1221 | 24 | 95 | 4/0 | 265 |
