15KV 133% TS Copper Special Cables Armor X Cable XLPE Insulation
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
Minimum Order Quantity : | 1000m | Price : | $0.3 - $20/ Meter |
---|---|---|---|
Packaging Details : | Roll/Wooden Reel/Iron-wooden Reel/Steel Reel | Delivery Time : | 1-4 weeks |
Payment Terms : | L/C, T/T, Western Union |
Place of Origin: | Henan, China | Brand Name: | CN Cable Group |
---|---|---|---|
Certification: | ISO9001, CE | Model Number: | type w power cable |
Detail Information |
|||
Features: | An Open Reinforcement Is Applied Over The Assembly For Mechanical Strength. | Conductor: | Annealed Bare Copper Flexible Rope-lay-stranded |
---|---|---|---|
Insulation: | Colour Coded Synthetic Rubber | Jacket: | Extra Hard Usage Black, Oil And Weather Resistant CPE |
Temperature: | -40°C To +90°C | Max. Voltage: | 600/2000V |
High Light: | 2000V Special Cables,2000V Type W Portable Power Cable,600V Type W Portable Power Cable |
Product Description

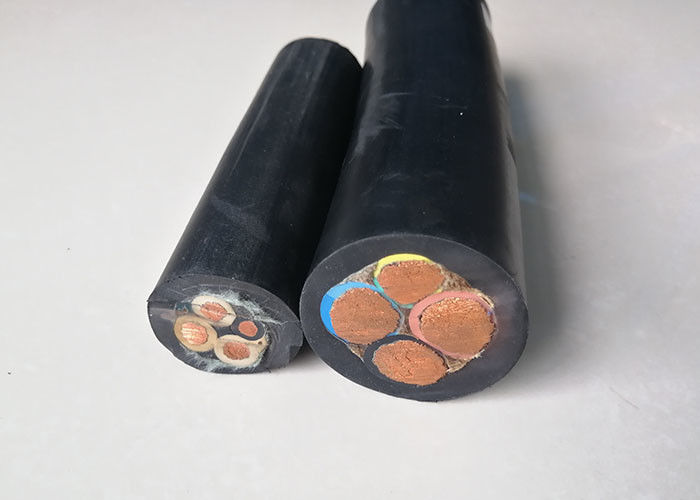

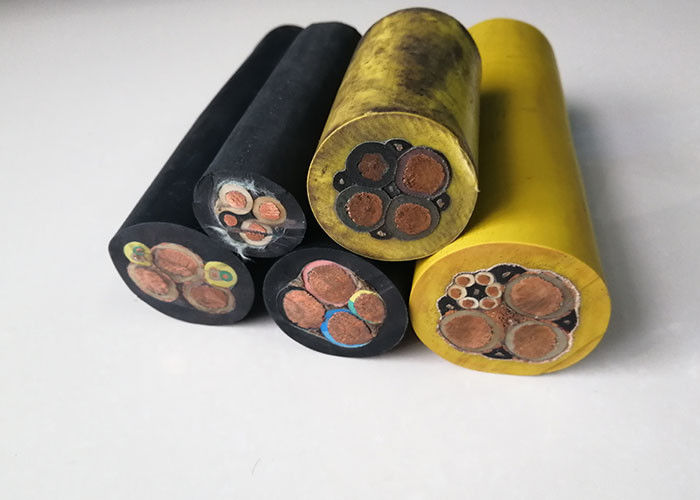

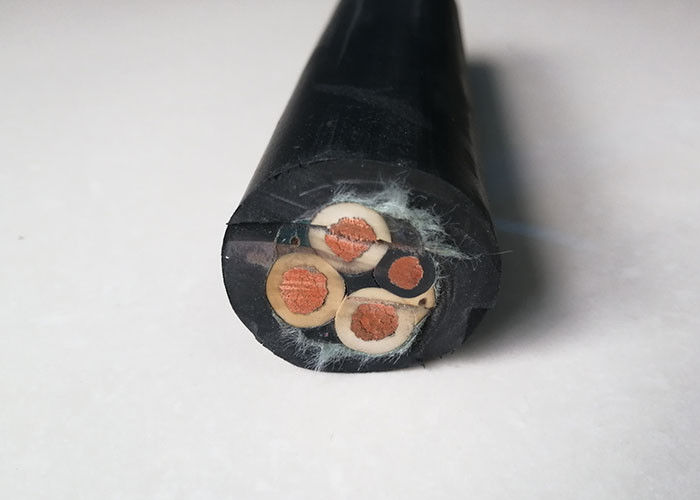

Multi-Conductor Type W Power Cable Round Portable Mining Cable
Product Description
1.Application
Type W is for use in heavy duty power systems as power supply cable such as: AC systems (grounded and
ungrounded); mobile and portable electrical equipment; motor and battery leads. 4 conductor constructions
are for three phase systems with one conductor being used as a ground. 5 conductor constructions are for
three phase systems where one conductor is used as a neutral and one conductor being used as a ground,
Type W is for applications up to 2000 volts and temperatures from -40°C to +90°C.
2.Applicable Standard
ICEA S-75-381/NEMA WC 58

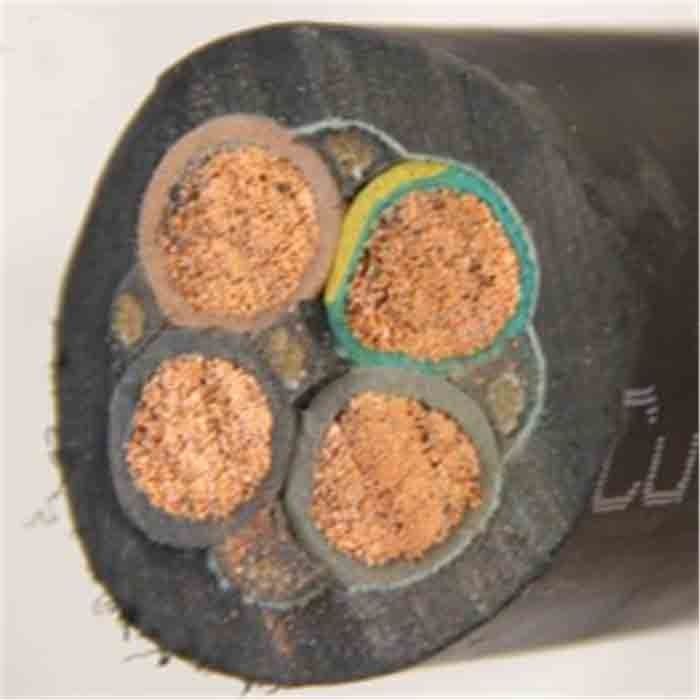

3.Cable Construction:
Conductor: Annealed bare copper flexible rope-lay-stranded
Insulation: Colour coded synthetic rubber
Jacket: Extra hard usage black, oil and weather resistant CPE
4. Technical Characteristics:
Temperature: -40°C to +90°C
Max. Voltage: 600/2000V
Features: An open reinforcement is applied over the assembly for mechanical strength.
Colour Code: 2c - Black, White; 3c - Black, White, Green; 4c – Black, White, Red, Green; 5c - Black, White, Red, Green, Orange
5. Data sheet
Cond. Size | # of Cond. | Cond. Strand | Nom. Insul. Thickness (Inches) | Nom. O. D. (Inches) | AMPS* |
8 | 2 | 133 | 0.060 | 0.77 | 74 |
6 | 2 | 259 | 0.060 | 0.91 | 99 |
4 | 2 | 259 | 0.060 | 1.02 | 130 |
2 | 2 | 259 | 0.080 | 1.21 | 174 |
1 | 2 | 259 | 0.080 | 1.44 | 202 |
1/0 | 2 | 259 | 0.080 | 1.435 | 234 |
2/0 | 2 | 259 | 0.080 | 1.65 | 271 |
3/0 | 2 | 259 | 0.080 | 1.77 | 313 |
4/0 | 2 | 259 | 0.080 | 1.92 | 361 |
8 | 3 | 133 | 0.060 | 0.96 | 74 |
6 | 3 | 259 | 0.060 | 1.03 | 99 |
4 | 3 | 259 | 0.060 | 1.14 | 130 |
2 | 3 | 259 | 0.060 | 1.29 | 174 |
1 | 3 | 259 | 0.060 | 1.46 | 202 |
1/0 | 3 | 266 | 0.080 | 1.59 | 234 |
2/0 | 3 | 342 | 0.080 | 1.69 | 271 |
3/0 | 3 | 418 | 0.080 | 1.81 | 313 |
4/0 | 3 | 532 | 0.080 | 1.96 | 361 |
250 | 3 | 627 | 0.095 | 2.29 | 402 |
350 | 3 | 888 | 0.095 | 2.57 | 495 |
500 | 3 | 1221 | 0.095 | 2.90 | 613 |
8 | 4 | 133 | 0.060 | 0.98 | 65 |
6 | 4 | 259 | 0.060 | 1.10 | 87 |
4 | 4 | 259 | 0.060 | 1.22 | 114 |
2 | 4 | 259 | 0.060 | 1.44 | 152 |
1 | 4 | 259 | 0.060 | 1.59 | 177 |
1/0 | 4 | 266 | 0.080 | 1.70 | 205 |
2/0 | 4 | 342 | 0.080 | 1.85 | 237 |
3/0 | 4 | 418 | 0.080 | 1.96 | 274 |
4/0 | 4 | 532 | 0.080 | 2.15 | 316 |
8 | 5 | 133 | 0.060 | 1.03 | 52 |
6 | 5 | 259 | 0.060 | 1.20 | 70 |
4 | 5 | 259 | 0.060 | 1.37 | 91 |
2 | 5 | 259 | 0.060 | 1.56 | 122 |
1/0 | 5 | 266 | 0.080 | 1.94 | 164 |
Packing&Shipping
Packing material:
Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.
Shipping:
Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.
