CU/EPR/CPE 3 Conductor Type GGC Cable Round Portable Mining Power Cable 2000V

Minimum Order Quantity : 1000m Price : $1 - $60/ Meter
Packaging Details : Roll/Wooden Reel/Iron-wooden Reel/Steel Reel Delivery Time : 1-4 weeks
Payment Terms : L/C, T/T, Western Union
Place of Origin: Henan, China Brand Name: CN Cable Group
Certification: ISO9001, CE Model Number: Type G-GC Mining Cable

Detail Information

Type: Insulated Conductor Type: Stranded
Application: Underground Conductor Material: Copper
Sheath Material: CPE Insulation Material: EPR
High Light:

3 Conductor Type GGC Cable

,

CPE Type GGC Cable

,

Mining Power Cable 2000V

Product Description





CU/EPR/CPE 3-CONDUCTOR Type G-GC Mining Round Portable Cable 2000V



Product Description




Application
Trailing cable on ac mining equipment where a ground conductor is required. For use where induced voltages in grounding system will not produce a hazard.



Standards:

ICEA S-75-381/NEMA WC 58

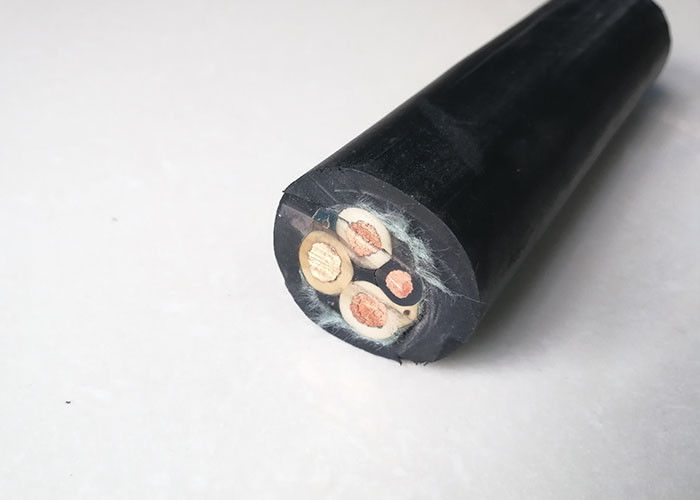

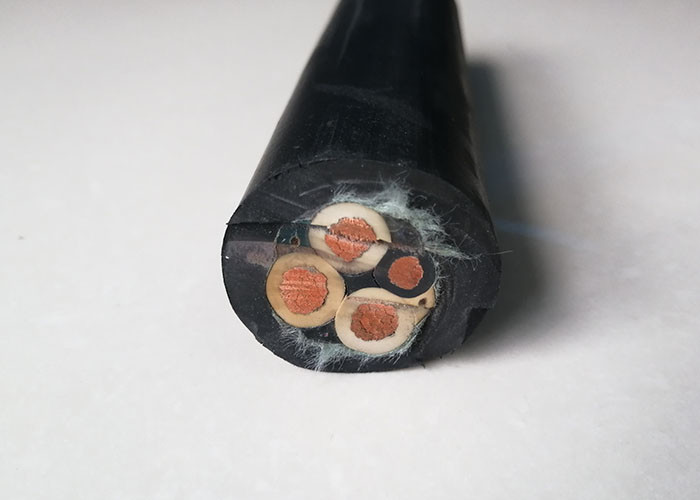

Cable Construction:
Conductor: Soft or annealed tinned coated copper conductor
Separator: A separator may be applied over the conductor.
Insulation: Ethylene propylene rubber (EPR) meeting ICEA S-75-381.
Phase ID: Color coded insulation, Black, White and Red.
Jacket: Black heavy duty chlorinated polyethylene (CPE) compound, applied in one layer over a fibrous reinforcement layer.





Technical Characteristics:

Maximum operating voltage: 2 kV
Maximum conductor operation temperature: 90 °C wet or dry locations under normal operating conditions.





Data Sheet

Conductor Size Number of Strands Size of Each Strand Nominal Insulation Thickness Ground Conductor Size Maximum Overall Diameter Approximate Total Weight
AWG or kcmil - AWG mil AWG in lb/kft
8 133 29 60 10 1 652
6 133 27 60 10 1.08 800
4 259 28 60 8 1.22 1082
2 259 26 60 7 1.37 1458
1 259 25 80 6 1.54 1848
1/0 259 24 80 5 1.69 2251
2/0 329 24 80 4 1.79 2681
3/0 413 24 80 3 1.94 3232
4/0* 532 24 80 2 2.09 3642
250* 608 24 95 2 2.45 4556
300* 741 24 95 1 2.62 5389
350* 855 24 95 1/0 2.74 6095
500* 1221 24 95 2/0 3.09 7916



Packing&Shipping


Packing material:

Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.



Shipping:

Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.

CU/EPR/CPE 3 Conductor Type GGC Cable Round Portable Mining Power Cable 2000V 0
