PE / PVC Insulation Special Cables Instrumentation Cable 300 / 500V
PE / PVC Insulation Special Cables Instrumentation Cable 300 / 500V PE / PVC Insulation Special Cables Instrumentation Cable 300 / 500V PE / PVC Insulation Special Cables Instrumentation Cable 300 / 500V PE / PVC Insulation Special Cables Instrumentation Cable 300 / 500V PE / PVC Insulation Special Cables Instrumentation Cable 300 / 500V
Contact Now

PE / PVC Insulation Special Cables Instrumentation Cable 300 / 500V

Minimum Order Quantity : 1000meters
Place of Origin: Henan,China Brand Name: CN CABLE
Certification: CE ,BS, Model Number: instrumentation cable

Detail Information
Conductor: Class 2 Or 5 Copper Conductor According To BS EN 60228 Insulation: PE Or PVC
Binding Tape: Polyester Tape Screen: Aluminium/Polyester Tape
Drain Wire: Tinned Copper Sheath: PVC
Rated Voltage: 300/500V Temperature Rating: -30℃ To +70 ℃
Sheath Color: Bule Or Black
High Light:

custom control cables

,

copper welding cable

,

special power cable

Product Description

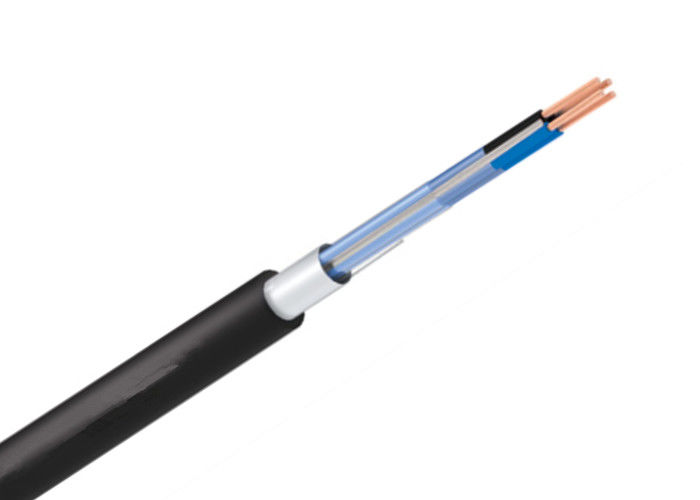

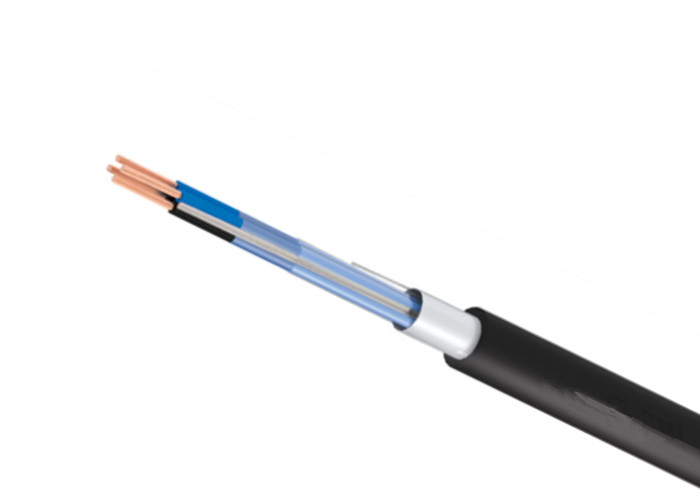

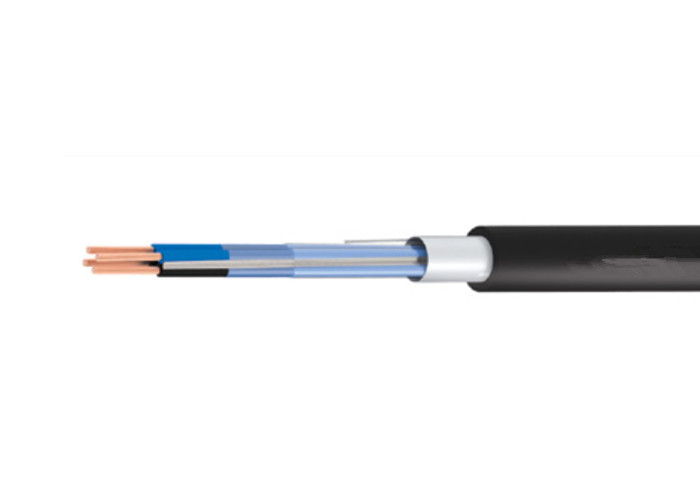

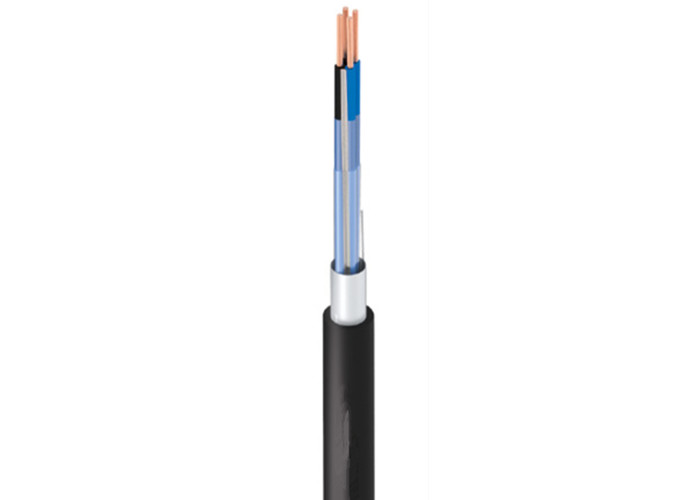

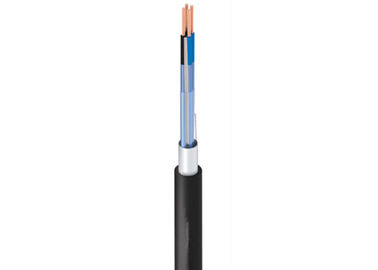

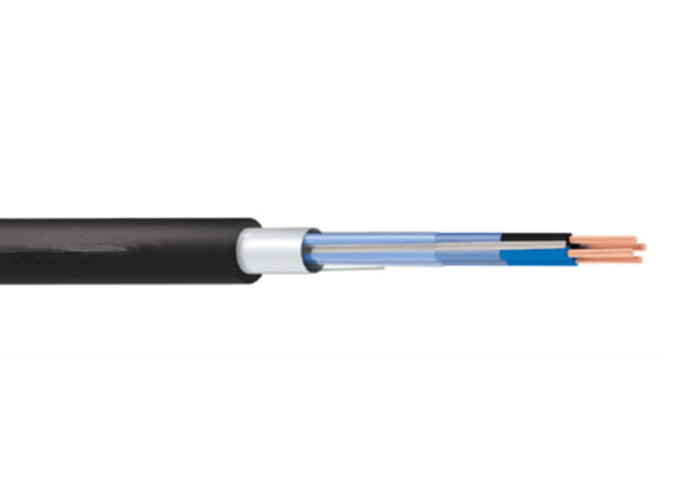

BS 5308 Rated voltage 300/500V PE or PVC insulation ,PVC Sheath,Instrumentation Cable



APPLICATION:
BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue, data or voice type and from a variety of transducers such as pressure, proximity or microphone. Part 1 Type 1 cables are generally designed for indoor use and in environments where mechanical protection is not required.



Data

P=pairs, T=triple, Q=quad

NO. OF
PAIRS/TRIPLE		 NOMINAL CROSS
SECTIONAL AREA
mm²		 NOMINAL OVERALL
DIAMETER
mm
1P
1P
1P
1P
1P
1T
1T
1T
1T
1T
2P
Q
2P
Q
2P
2P
2P
5P
5P
5P
5P
5P
10P
10P
10P
10P
10P
15P
15P
15P
15P
15P
20P
20P
20P
20P
20P		 0.5
0.75
1
1.5
2.5
0.5
0.75
1
1.5
2.5
0.5
0.5
0.75
0.75
1
1.5
2.5
0.5
0.75
1
1.5
2.5
0.5
0.75
1
1.5
2.5
0.5
0.75
1
1.5
2.5
0.5
0.75
1
1.5
2.5		 7
7.4
7.4
8.3
9.1
7.3
7.7
7.7
8.9
9.7
7.9
7.9
8.4
8.4
8.4
9.7
10.7
13.1
13.8
14.2
16.4
18.2
17.2
18.9
18.4
21.6
25.1
19.8
21.9
21.3
25.4
29.2
22.3
24.6
24.4
28.5
39.8



















































































CONDUCTORS



NOMINAL CROSS
SECTIONAL AREA
mm²		 CONDUCTOR
CLASS		 MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C
ohms/km
0.5
0.75
1
1.5
2.5		 5
5
1
2
2		 39
26
18.1
12.1
7.41



ELECTRICAL CHARACTERISTICS
Individually and Collectively Screened Cables



NOMINAL CROSS
SECTIONAL AREA
mm²		 MUTUAL CAPACITANCE
pF/m		 MINIMUM INSULATION
RESISTANCE AT 20°C
mohms/km		 MAXIMUM
L/R RATIO
µH/ohms
Cables with Collective
Screen Only		 1 Pair, 2 Pairs, 1 Triple
Collectively Screened		 Cables with Individually
Screened Pairs
0.5
0.75
1
1.5
2.5		 75
75
75
85
85		 115
115
115
120
120		 115
115
115
120
120		 >5
>5
>5
>5
>5		 25
25
25
40
65



























CORE COLOURS

PAIR NO. A WIRE B WIRE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 		Black
Black
Blue
Black
Blue
Green
Black
Blue
Green
Brown
Black
Blue
Green
Brown
White
Black
Blue
Green
Brown
White
Red
Black
Blue
Green 		Blue
Green
Green
Brown
Brown
Brown
White
White
White
White
Red
Red
Red
Red
Red
Orange
Orange
Orange
Orange
Orange
Orange
Yellow
Yellow
Yellow
