Halogen Free EPR Insulation Special Cables / Fire Resistant Cable GSWB Armour

Minimum Order Quantity : 1000meter Packaging Details : wooden drum , iron-wooden drum
Place of Origin: Henan,China Brand Name: CN CABLE
Certification: BS Model Number: Fire resistant cable

Detail Information

Conductor: Class 5 Flexible Tinned Copper Conductor Separator: Mica Glass Tape
Insulation: Halogen Free EPR Drain Wire: Tinned Copper Drain Wire
Screen: Collective Aluminum Polyester Tape Bedding: Halogen Free Elastomer EPR
Armour: GSWB (Galvanized Steel Wire Braid) Sheath: Halogen Free Heat Resistant, Oil Resisting And Flame Retardant
High Light:

custom control cables

,

copper welding cable

,

special power cable

Product Description

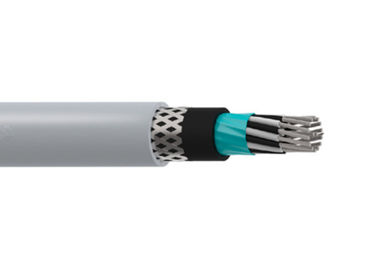

Halogen Free EPR Insulation Special Cables / Fire Resistant Cable GSWB Armour



APPLICATION

Fire resistant cables for fxed wiring in ships and on mobile and fxed offshore units.



CONSTRUCTION
Conductor
Class 5 flexible tinned copper conductor
Separator
Mica glass tape
Insulation
Halogen free EPR (Ethylene Propylene Rubber)
Type GP4
Drain Wire
Tinned copper drain wire
Screen
Collective aluminum polyester tape
Bedding
Halogen free elastomer EPR (Ethylene Propylene Rubber)
Type SB 1
Armour
GSWB (Galvanized Steel Wire Braid)
Sheath
Halogen free heat resistant, oil resisting and flame retardant
elastomer compound Type SW4

CHARACTERISTICS
Voltage Rating (Uo/U)
150/250V
Temperature Rating
-40°C to +90°C
Minimum Bending Radius
6 x overall diameter
Core Identifcation
Black White with printed number of pairs
Sheath Colour
Grey Blue



DIMENSIONS



NO. OF PAIRS CONDUCTOR
CLASS
NOMINAL CROSS SECTIONAL AREA
mm²
NOMINAL OVERALL DIAMETER
mm
NOMINAL WEIGHT
kg/km
2P
2P
2P
3P
3P
3P
3P
7P
7P
7P
12P
12P
12P
20P
20P
20P
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
0.75
1
1.5
0.75
1
1.5
2.5
0.75
1
1.5
0.75
1
1.5
0.75
1
1.5
15.1
15.3
16.8
19.3
19.6
21.5
24.1
24.8
25.5
27.9
31.3
32.1
35.8
39.6
40.6
43.9
326
343
401
434
437
533
735
707
737
908
1075
1104
1496
1665
1792
21













































Colour Codes

COLOUR
CODE
Grey
GR
Blue
BL







CONDUCTORS
Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS
SECTIONAL AREA
mm²
MAXIMUM DIAMETER OF WIRES
IN CONDUCTOR
mm
MAXIMUM RESISTANCE OF CONDUCTOR AT 20°C
Metal-Coated Wires
ohms/km
0.75
1
1.5
2.5
0.21
0.21
0.26
0.26
26.7
20
13.7
8.21



ELECTRICAL CHARACTERISTICS

NOMINAL CROSS
SECTIONAL AREA
mm²
MAXIMUM INSULATION
RESISTANCE AT 20°C
INDUCTANCE
mH/km
CAPACITANCE
pf/m
L/R RATIO AT 1kHz
µh/ohms
0.75
1
1.5
930
827
729
0.75
0.73
0.68
130
140
160
25
25
40
