Al/Cu 1KV ABC Overhead Cable NFC 33226 Aerial Bundle Conductor
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
Minimum Order Quantity : | 1000meters | Packaging Details : | Roll/Wooden Reel/Iron-wooden Reel/Steel Reel |
---|---|---|---|
Delivery Time : | 1-4 weeks | Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 50000 Meter/Meters per Month SAC space aerial cable |
Place of Origin: | Henan, China | Brand Name: | CN Cable Group |
---|---|---|---|
Certification: | ISO9001, CE | Model Number: | SAC SPACED AERIAL CABLE |
Detail Information |
|||
Conductor: | AAC Conductor | Insulation: | XLPE |
---|---|---|---|
Outer Jacket: | PE | Packing Material: | Wooden Reel, Iron-wooden Reel, Steel Reel |
High Light: | 20KV SAC Cable,MV Spaced Aerial SAC Cable,Aluminium AAC ConductorSAC Cable |
Product Description

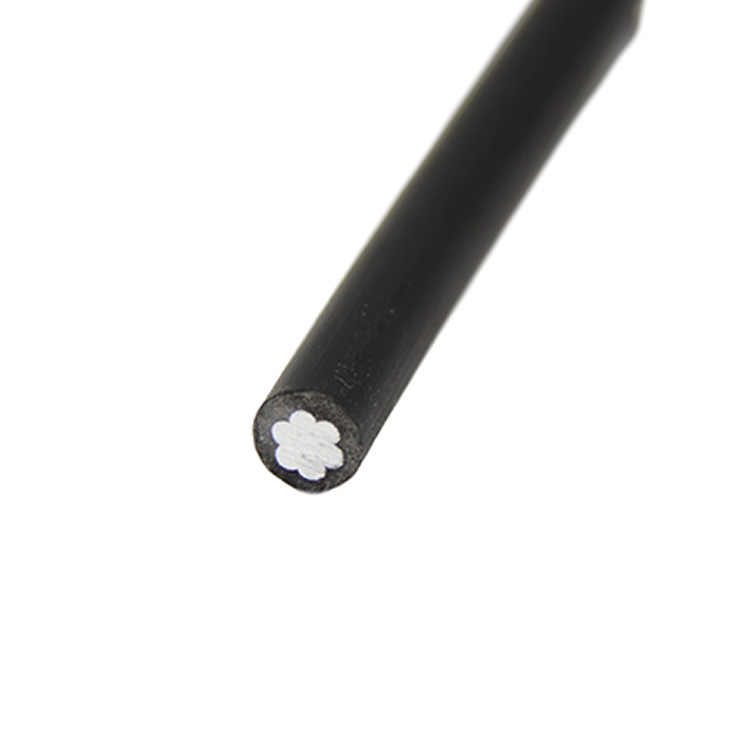

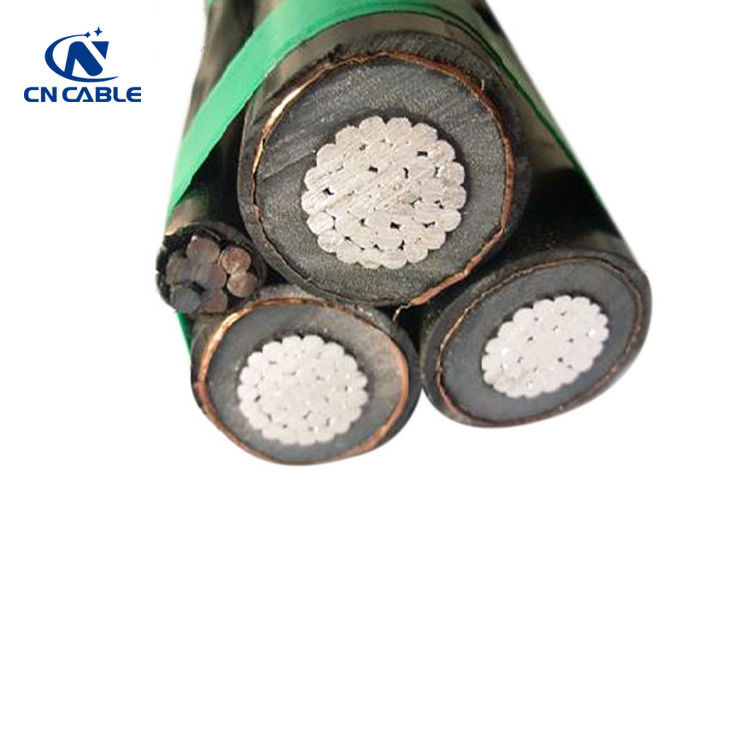

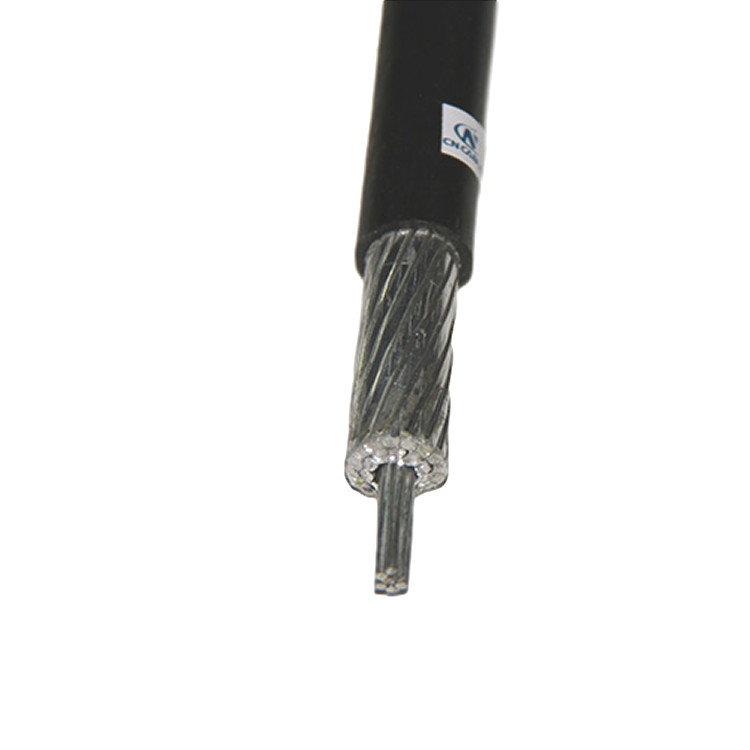

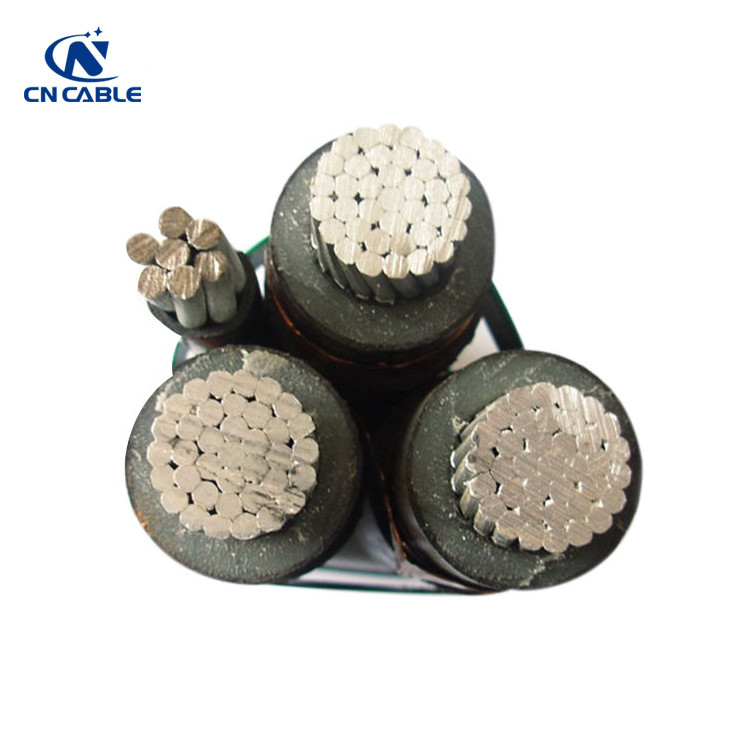

Cables Aluminium AAC Conductor MV Spaced Aerial 20/33KV SAC Cable
Product Description
1.Application
The cable is used for overhead power transmission and distribution lines up to 33 KV It can be used in Areas with trees , Areas with right-of-way concerns, Alley construction,Areas with ice storms,Areas of high winds,Contaminated areas, etc.
2.Applicable Standard
ASTM B230,ICEA S 66-524 , IEC 60228, IEC60502-2
3.Cable Structure:
AAC Conductor , XLPE/ Insulation , PE Outer Jacket
4.Packing Material
Wooden Reel, Iron-wooden Reel, Steel Reel
20KV SPACER CABLE
Cable Size | Conductor Construction | Conductor shield thickness | Insulation thickness | Outer Jacket thickness | Cable dia. | Conductor Resistance | |
Stranding No. | Overall dia. | ||||||
mm2 | mm | mm | mm | mm | mm | mm | Ω/km |
50 | ≥6 | 7.7-8.6 | 0.4 | 3.2 | 3.2 | 21.8 | 0.641 |
70 | ≥12 | 9.3-10.2 | 0.4 | 3.2 | 3.2 | 23.5 | 0.443 |
95 | ≥15 | 11.0-12.0 | 0.4 | 3.2 | 3.2 | 25.2 | 0.32 |
120 | ≥15 | 12.3-13.5 | 0.4 | 3.2 | 3.2 | 26.6 | 0.253 |
150 | ≥18 | 13.7-15.0 | 0.4 | 3.2 | 3.2 | 28 | 0.206 |
185 | ≥30 | 15.3-16.8 | 0.4 | 3.2 | 3.2 | 29.8 | 0.164 |
33KV SPACER CABLE
Cable Size | Conductor Construction | Conductor shield thickness | Insulation thickness | Outer Jacket thickness | Cable dia. | Conductor Resistance | |
Stranding No. | Overall dia. | ||||||
mm2 | mm | mm | mm | mm | mm | mm | Ω/km |
50 | ≥6 | 7.7-8.6 | 0.4 | 4.5 | 3.2 | 24.4 | 0.641 |
70 | ≥12 | 9.3-10.2 | 0.4 | 4.5 | 3.2 | 26.1 | 0.443 |
95 | ≥15 | 11.0-12.0 | 0.4 | 4.5 | 3.2 | 27.8 | 0.32 |
120 | ≥15 | 12.3-13.5 | 0.4 | 4.5 | 3.2 | 29.2 | 0.253 |
150 | ≥18 | 13.7-15.0 | 0.4 | 4.5 | 3.2 | 30.6 | 0.206 |
185 | ≥30 | 15.3-16.8 | 0.4 | 4.5 | 3.2 | 32.4 | 0.164 |
Packing&Shipping
Packing material:
Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.
Shipping:
Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.
FAQ
Q1 Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4:What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q5:What is the package of the cable?
A:The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
Q6: Can I get samples before placing the order?
Answer:You will get a sample for free if we have the storage of that cable.
Q7: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.
Q8: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier.
Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.
Other questions ? Welcome to contact us immediately !
