PVDF Insulation Special Cables / Cathodic Protection Cable DC600V

Minimum Order Quantity : 200 Meter/Me Price : US $1-50 / Meters | 200 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN Cable Group
Model Number: Special Cables

Detail Information

Insulation Material: PVDF Conductor Material: Copper
Jacket: HMWPE Certificate: ISO9001/ISO14001
Product Name: Cathodic Protection Cable
High Light:

custom control cables

,

special power cable

Product Description

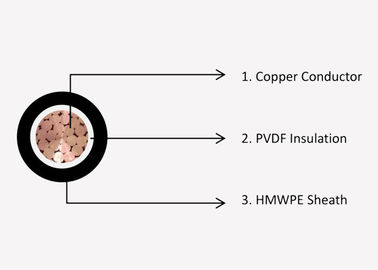

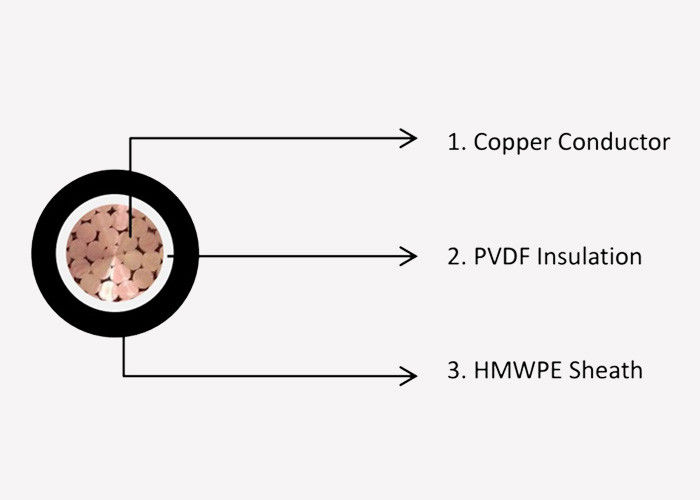

PVDF Insulation Special Cables / Cathodic Protection Cable DC600V

CATHODIC PROTECTION CABLE

Product Description

 low voltage power cable.jpg



Application

The cable mainly used for impressed current cathodic protection system.



Features

1. Rated voltage: DC600V

2. Long-term permissible working temperature :HMWPE-90℃, PVDF -135℃

3. The layout temperature of cable shall not be lower than -20℃

4. The bending radius: 20D,(D is outer diameter cable )







Instrument cable





Product Data Sheet
Type Product Name
CPY Copper core HMWPE insulated cathodic protection cable
CPFY Copper core fluorine plastic insulated HMWPE sheathed cathodic protection cable
CPFY33 Copper core fluorine plastic insulated fine-steel-wire-armored HMWPE sheathed cathodic protection cable







Product Data Sheet
Type Cross section mm2 Conductor diameter mm Insulation thickness mm Armored size Steel wire dia. Min. (mm) Approx. Cable diameter mm Approx. Cable weight kg/km
CPY 10 4.05 2.79   9.2 142
16 5 2.79   10.1 203
CPY 25 6.3 2.79   11.9 298
35 7.3 2.79   12.9 395
50 8.3 3.18   14.7 553
70 10 3.18   16.4 747
CPFY 10 4.05 0.51   8.27 139
16 5 0.51   9.35 199
25 6.3 0.51   10.87 293
35 7.3 0.51   11.98 393
50 8.3 0.51   13.48 543
70 10 0.76   15.77 760
CPFV33 10 4.05 0.51 0.8 11.87 286
16 5 0.51 0.8 12.92 368
25 6.3 0.51 1.25 14.22 483
35 7.3 0.51 1.25 16.29 715
50 8.3 0.51 1.25 17.77 897
70 10 0.76 1.25 20.05 1178









Click for more information









Packaging & Shipping




Company Information
Our Certificate
PVDF Insulation Special Cables / Cathodic Protection Cable DC600V 3
Our Services


FAQ




Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.



Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .



Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.



Looking forward to cooperating with you.
