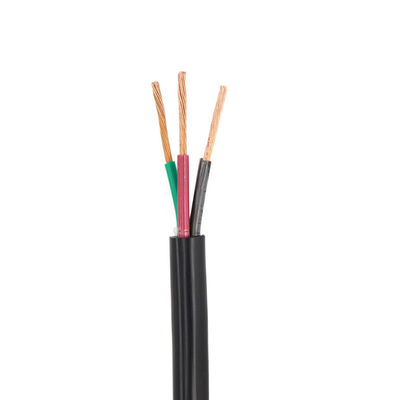

Low Tension Construction Cables H07V-U 450/750 V

Contact Now

Low Tension Construction Cables H07V-U 450/750 V

Minimum Order Quantity :	1000 Meter/M	Price :	0.1-1.5
Packaging Details :	Wooden drum , Coil , Pallet	Delivery Time :	1-4 wees
Payment Terms :	L/C, T/T, Western Union	Supply Ability :	10000KM per month

Place of Origin:	China	Brand Name:	CNCABLE GROUP
Certification:	CE	Model Number:	NYA, H07V-U

Detail Information
Votlage:	450/750V	Conductor:	Copper
Insulation:	PVC	Clour:	Black,red,orange,blue,grey,yellow/green,etc
Package:	Coil	Sample:	Free
High Light:	lv armoured cable , low voltage power cable

Product Description

Application:

NYA H07V-U is suitable for the transport of energy in fixed installations, internal wiring, signaling circuits, etc. in domestic, industrial, commercial premises and offices.

Standard:

IEC 60228 , IEC227 , or equivalent

Cable Construction:

Conductor: Solid bare copper wire

Insulation: PVC

Color available: Black/Brown/Blue/Green/Grey/Orange/Red/Yellow ,etc

Technical Characteristics:

Rated voltage: 300/500v (H05V-U)/ 450/750v (H07V-U)

Test voltage: 2000V(H05V-U)/2500V (H07V-U)

Flexing bending radius: 15 x D

Static bending radius: 15 x D

Temperature range: -5℃ to +70℃

Short circuit temperature: 160 ℃

Flame retardant: IEC 60332.1

Parameter:

Conductor size		Conductor			PVC Insulation Thickness	Cable overall Dia.	Weight kg/km
Conductor size		Stranding no.	Single Wire dia.	Dia.	PVC Insulation Thickness	Cable overall Dia.	Weight kg/km
AWG	MM2	/	mm	mm	mm	mm
--	0.5	1	0.80	0.80	0.6	2	8
--	0.75	1	0.98	0.98	0.6	2.2	12
--	1	1	1.13	1.13	0.6	2.3	14
--	1.5	1	1.38	1.38	0.7	2.8	20
--	2.5	1	1.78	1.78	0.8	3.4	32
--	4	1	2.26	2.26	0.8	3.9	48
--	6	1	2.76	2.76	0.8	4.4	67
