22kv single core XLPE insulated aluminium tape armour power cable

Good quality LV Power Cable for sales
Good quality LV Power Cable for sales
I'm Online Chat Now

22kv single core XLPE insulated aluminium tape armour power cable

China 22kv single core XLPE insulated aluminium tape armour power cable supplier
22kv single core XLPE insulated aluminium tape armour power cable supplier 22kv single core XLPE insulated aluminium tape armour power cable supplier 22kv single core XLPE insulated aluminium tape armour power cable supplier 22kv single core XLPE insulated aluminium tape armour power cable supplier

Large Image :  22kv single core XLPE insulated aluminium tape armour power cable

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: CN
Model Number: MV

Payment & Shipping Terms:

Minimum Order Quantity: 200 Meter/Me
Price: US $1-50 / Meters | 200 Meter/Meters (Min. Order)
Contact Now
Detailed Product Description
Insulation Material: XLPE Type: Medium Voltage
Application: Underground Conductor Material: Copper /Aluminum
Jacket: PVC Product Name: 22kv Single Core XLPE Insulated Aluminium Tape Armour Power Cable
Rated Voltage: 1-35KV Conductor: Al/Cu
Core: 1 Core / 3 Core Sheath: PVC/PE
Armour: SWA STA AWA ATA Color: Black/Red
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel

22kv single core XLPE insulated aluminium tape armour power cable

Product Description

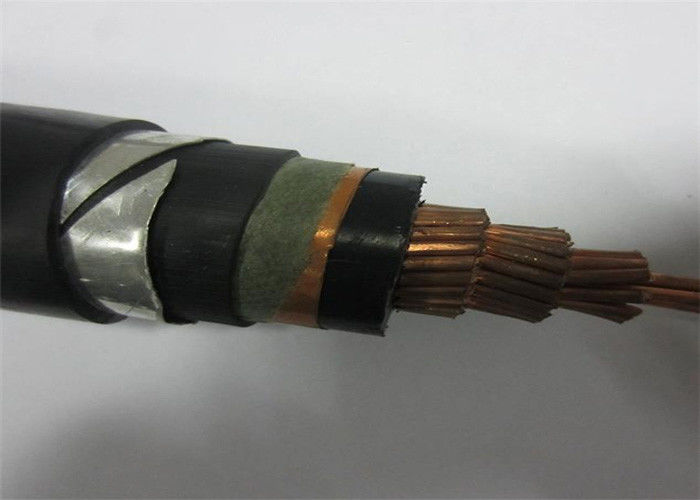

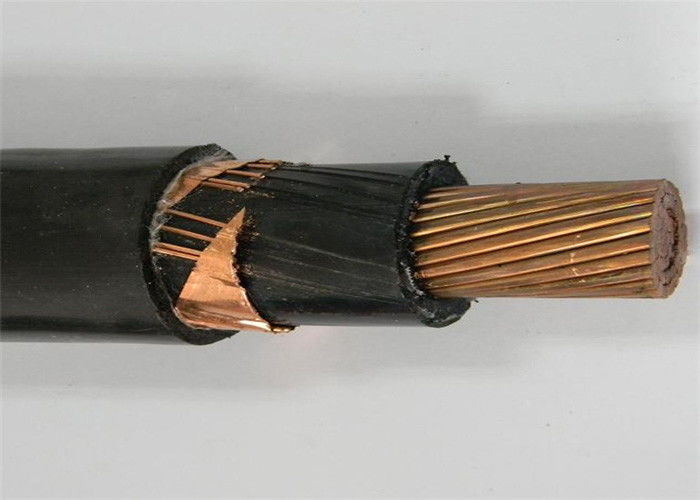

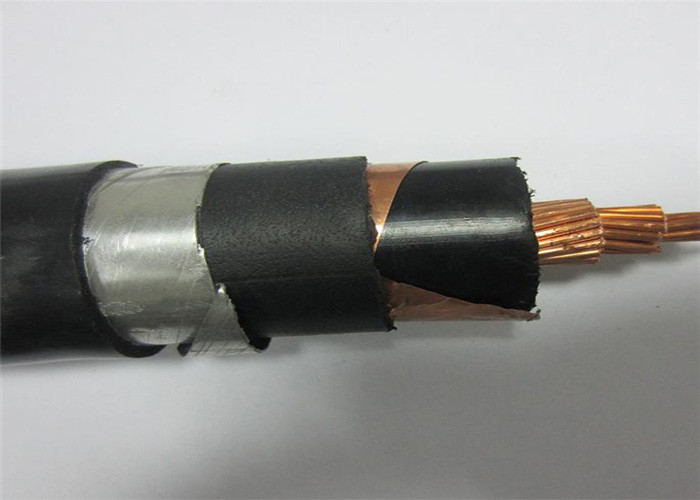

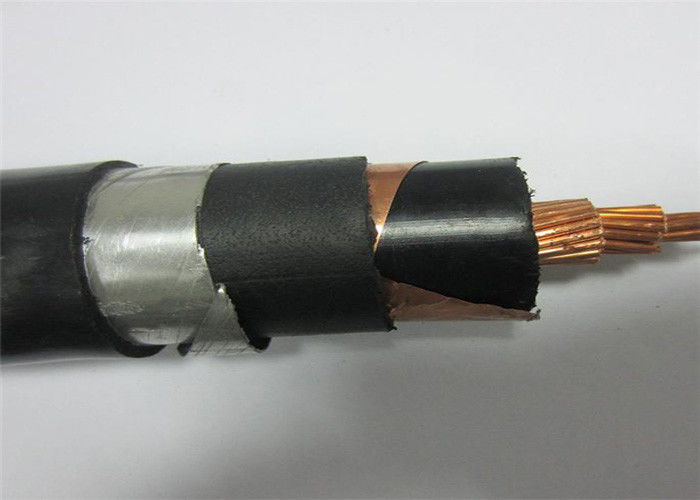

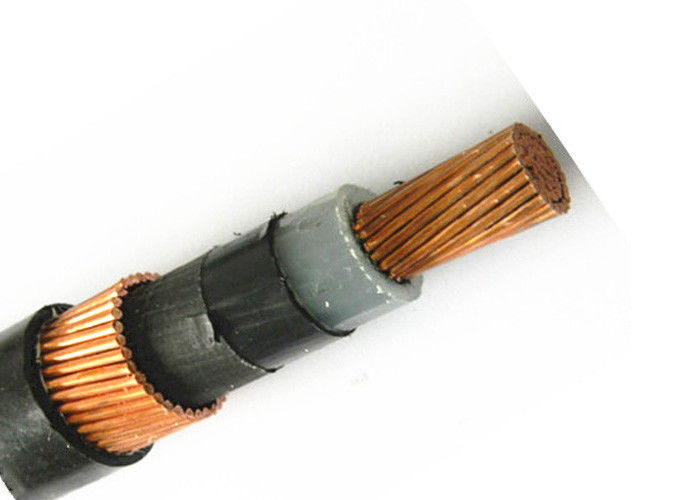

armoured cable.jpg



Application:

The product is used in power transmission and  distribution line at voltage up to  46KV. It does not only have  excellent  electric, mechanical properties, but  also has powerful resistance against chemical corrosion, heat aging and environmental stress.



Applicable Standard:

We can produce according to standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C-68.3, ICEA S-93-639, ICEA S-94-649, CSA C68.5, IS 7098, etc.



Cable Characteristics:

Rated Voltage: 1KV to 35KV

Cross-section area: up to 1000 .

Conductor long-time operating temperature: 90℃

Short circuit conductor highest temperature: 250℃





Cable Structure:

Core Number: 1 Core / 3 Core

Conductor: Cu / AL

Insulation: XLPE / TRXLPE

Metallic screen: Cu tape / Cu wire screen / Al-Plastic Tape screen

Armor type: AL Tape / AL Wire / STA / SWA

Outer sheath: PVC / PE / LDPE / LLDPE / LSHF



productor date sheet



Conductor Size Stranding No. (Compacted Round) Conductor Dia. Max.D.C.resistance at 20℃
Cu Al Cu Al
mm² No.s No.s mm Ω/KM Ω/KM
25 ≥6 ≥6 5.6-6.5 0.727 1.2
35 ≥6 ≥6 6.6-7.5 0.524 0.868
50 ≥6 ≥6 7.7-8.6 0.387 0.641
70 ≥12 ≥12 9.3-10.2 0.268 0.443
95 ≥15 ≥15 11.0-12.0 0.193 0.32
120 ≥18 ≥15 12.3-13.5 0.153 0.253
150 ≥18 ≥15 13.7-15.0 0.124 0.206
185 ≥30 ≥30 15.3-16.8 0.0991 0.164
240 ≥34 ≥30 17.6-19.2 0.0754 0.125
300 ≥34 ≥30 19.7-21.6 0.0601 0.1
400 ≥53 ≥53 22.3-24.6 0.047 0.0778
500 ≥53 ≥53 25.3-27.6 0.0368 0.0605
630 ≥53 ≥53 28.7-32.5 0.0283 0.0469
800 ≥53 ≥53   0.0221 0.0367
1000 ≥53 ≥53   0.0176 0.0291





Rated Voltage XLPE/TRXLPE Insulation Nominal Thickness Metal Screen Aemor Dimension
Copper Tape Copper Wire Tape Wire
KV mm mm mm mm mm
3.6/6 2.5-3.2 0.06-0.12 Dia.Min.0.9mm, Wire No. According to Screen Size 0.2-0.5 0.8-5.0
6/10 3.4 0.06-0.12 0.2-0.5 0.8-5.0
8.7/15 4.5 0.06-0.12 0.2-0.5 0.8-5.0
12/20 5.5 0.06-0.12 0.2-0.5 0.8-5.0
18/30 8 0.06-0.12 0.2-0.5 0.8-5.0



























Click for more information
