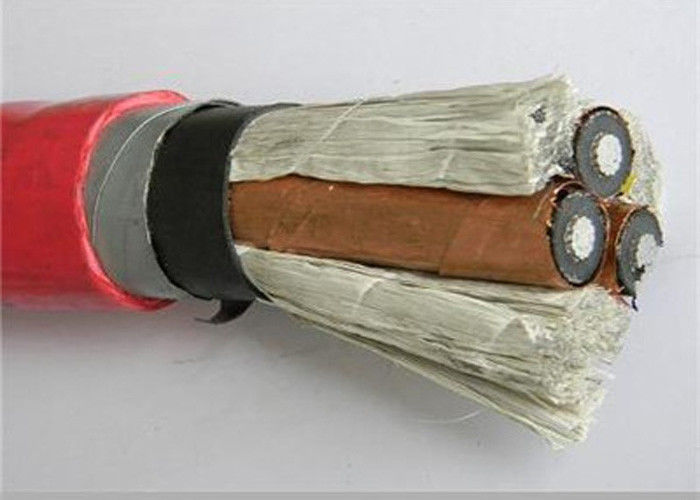

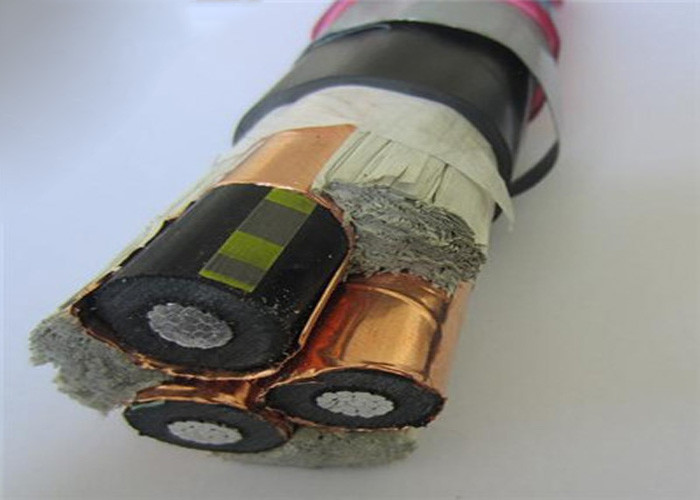

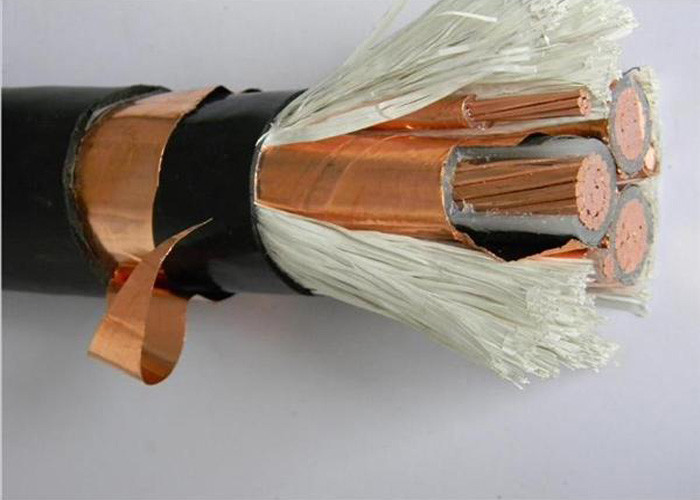

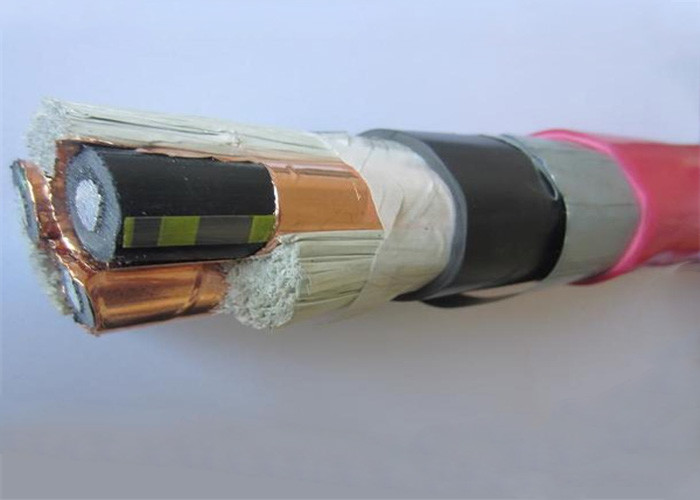

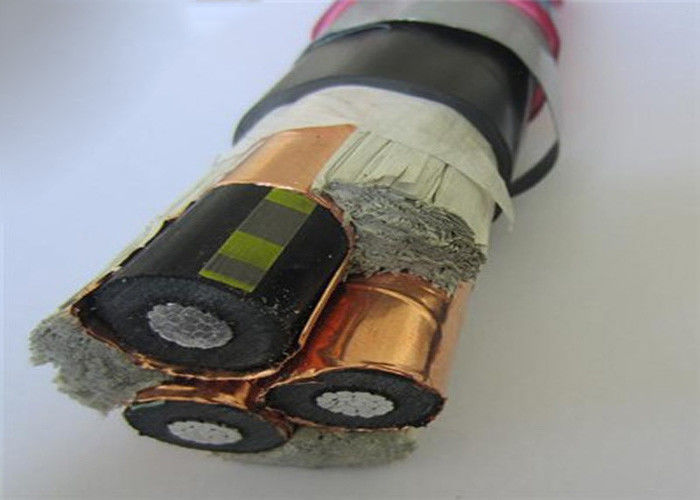

120 Sq Mm TRXLPE Xlpe Copper Tape Screen Cable With PE / PVC Jacket

China 120 Sq Mm TRXLPE Xlpe Copper Tape Screen Cable With PE / PVC Jacket supplier
120 Sq Mm TRXLPE Xlpe Copper Tape Screen Cable With PE / PVC Jacket supplier 120 Sq Mm TRXLPE Xlpe Copper Tape Screen Cable With PE / PVC Jacket supplier 120 Sq Mm TRXLPE Xlpe Copper Tape Screen Cable With PE / PVC Jacket supplier 120 Sq Mm TRXLPE Xlpe Copper Tape Screen Cable With PE / PVC Jacket supplier

Large Image :  120 Sq Mm TRXLPE Xlpe Copper Tape Screen Cable With PE / PVC Jacket

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: CN
Model Number: MV

Payment & Shipping Terms:

Minimum Order Quantity: 200 Meter/Me
Price: US $1-100 / Meters | 200 Meter/Meters (Min. Order)
Contact Now
Detailed Product Description
Insulation Material: XLPE Type: Medium Voltage
Application: Underground Conductor Material: Aluminum
Jacket: PVC Product Name: Copper Tape Shield 120 Sq Mm Xlpe Power Cable With PE / PVC Jacket
Rated Voltage: 1-35KV Conductor: Al/Cu
Core: 1 Core / 3 Core Sheath: PVC/PE
Armour: SWA STA AWA ATA Color: Black/Red
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel

Copper tape shield 120 sq mm xlpe power cable with PE / PVC jacket

Product Description

armoured cable.jpg


Application:
The product is used in power transmission and  distribution line at voltage up to  46KV. It does not only have  excellent  electric, mechanical properties, but  also has powerful resistance against chemical corrosion, heat aging and environmental stress.

Applicable Standard:
We can produce according to standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C-68.3, ICEA S-93-639, ICEA S-94-649, CSA C68.5, IS 7098, etc.

Cable Characteristics:
Rated Voltage: 1KV to 35KV
Cross-section area: up to 1000 .
Conductor long-time operating temperature: 90℃
Short circuit conductor highest temperature: 250℃


Cable Structure:
Core Number: 1 Core / 3 Core
Conductor: Cu / AL
Insulation: XLPE / TRXLPE
Metallic screen: Cu tape / Cu wire screen / Al-Plastic Tape screen
Armor type: AL Tape / AL Wire / STA / SWA
Outer sheath: PVC / PE / LDPE / LLDPE / LSHF
