TFL Communication Multi Core Copper Cable Flame Retardant Polyolefin Insulation

Product Description

Max. rated voltage 600v TFL Communication multicore Copper cable

Application:

Halogen free, flame retardant and shielded cable with multiple conductors to power supply several radio units and other telecom
equipment. Sunlight resistant per UL 1581 sec 1200, not for direct burial. CPR and UL listed. Indoor and outdoor use.

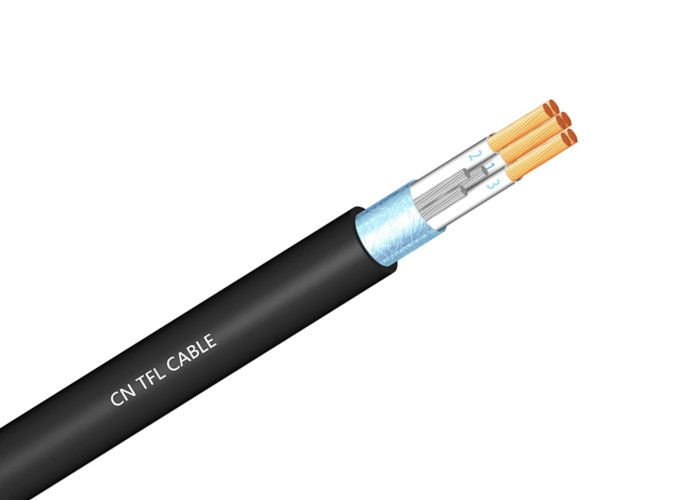

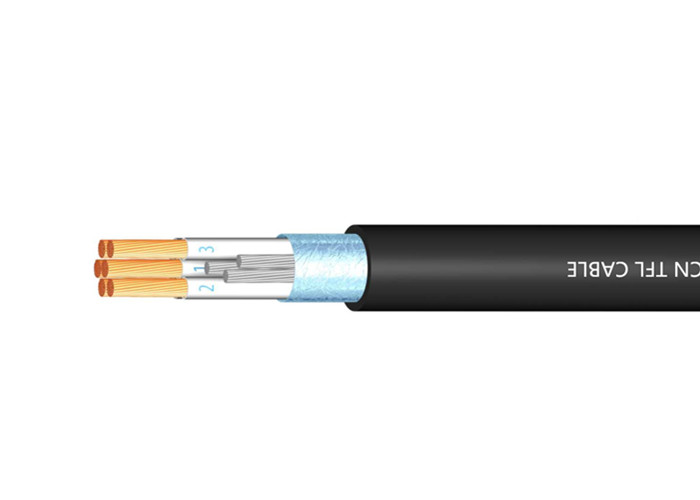

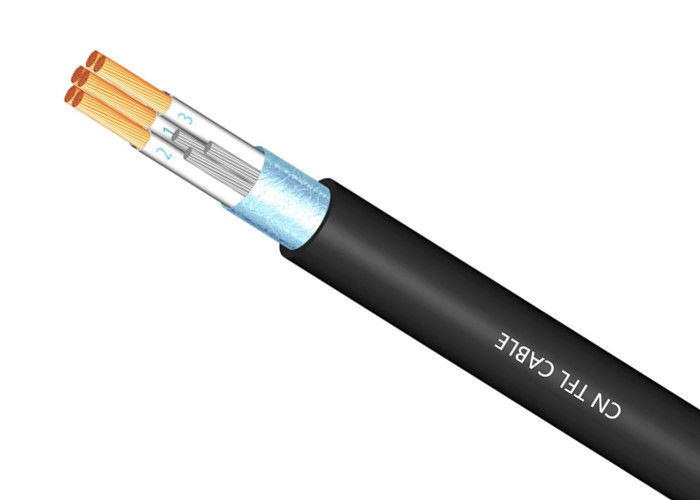

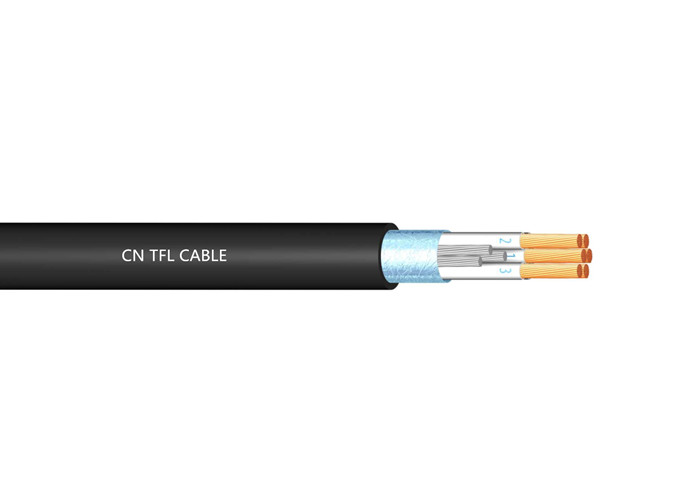

Construction:
1. Conductor: Stranded, annealed copper wires class 5 IEC 60228.
2. Insulation: Flame retardant polyolefin. Printed digits for conductor identification: 1, 2, 3, 4 etc.
3. Shield: AL/PET tape with tin-plated, annealed copper wires.
4. Sheath: Flame retardant black polyolefin.

Properties:
Rated voltage : Max 600 V

Fire classification : IEC 60332-3-24 (Cat C) UL 1685, Vertical Tray CPR Class Dca
Minimum operating temperature: -20°C (-40°C when fixed)
Fulfils low voltage directive, CE: Yes
Maximum operating temperature: +90°C

Fulfils RoHS :Yes
Minimum bending radius : 6 x Outer diameter(4 x OD when fixed)
Fulfils REACH :Yes

Technical data:
