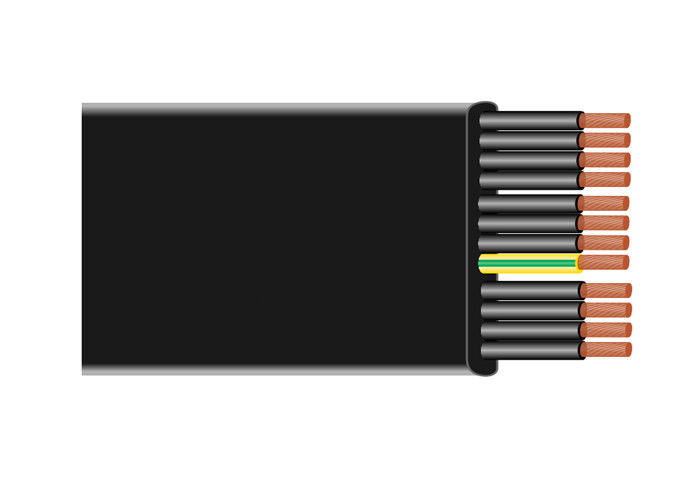

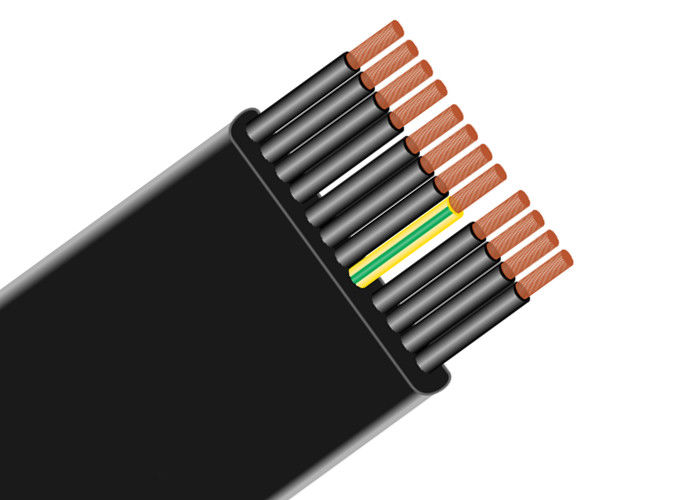

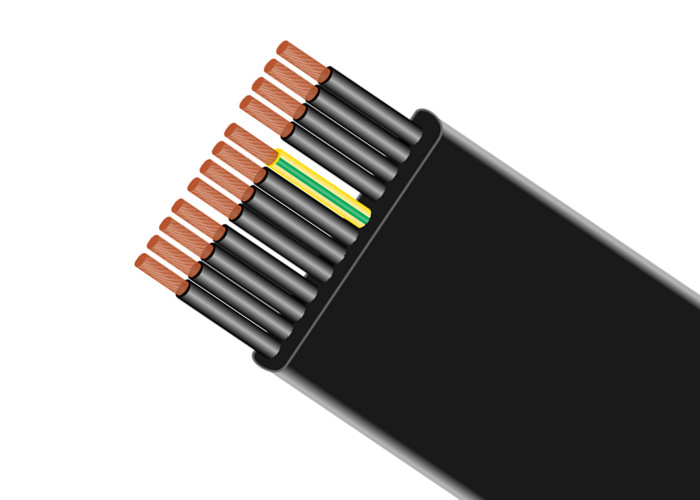

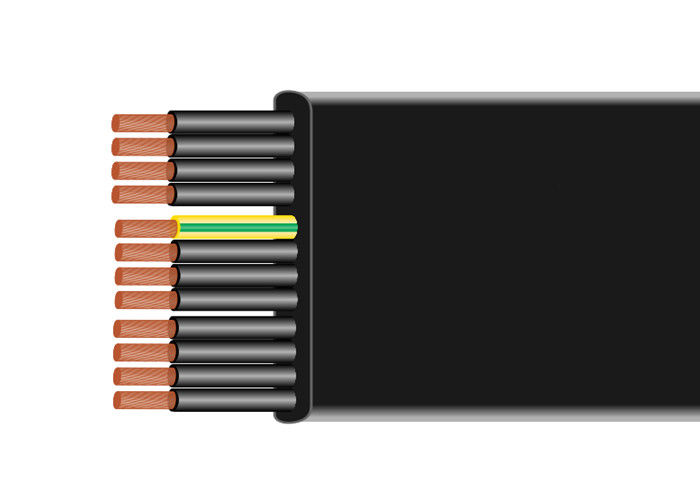

Rated Voltage 300 / 500V Flat PVC Cable Max Core Temperature 70℃ OEM Service
Rated Voltage 300 / 500V Flat PVC Cable Max Core Temperature 70℃ OEM Service Rated Voltage 300 / 500V Flat PVC Cable Max Core Temperature 70℃ OEM Service Rated Voltage 300 / 500V Flat PVC Cable Max Core Temperature 70℃ OEM Service Rated Voltage 300 / 500V Flat PVC Cable Max Core Temperature 70℃ OEM Service
Contact Now

Rated Voltage 300 / 500V Flat PVC Cable Max Core Temperature 70℃ OEM Service

Minimum Order Quantity : 1000metres Packaging Details : Roll
Delivery Time : 20days after payment Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE Model Number: H05VVH6-F ,H07VVH6-F

Detail Information
Conductor: Flexible Bare Copper Class 5 Insulation: PVC
Outer-sheath: PVC Color: Black
High Light:

copper welding cable

,

special power cable

Product Description

Rated voltage 300/500v or 450/750v H05VVH6-F/H07VVH6-F/Flat PVC Cables Overhead Cranes Cables



Applications
These power and control flat cables can be used on festoons systems on handling equipment as overhead cranes. They are designed for indoors and outdoors for ambient temperature down to -25°C. These cables can accept a trolley travelling speed up to 120m/mn.



Design

Max core temperature: 70 °C

Rated voltage: 300/500 V
450/750 V


Conductor

Flexible bare copper Class 5 IEC 60228

Insulation

PVC (polyvinyl chloride)

A striping thread can be used in each group of cores

Outer-sheath
PVC (polyvinyl chloride)
Color: black

Core Identification
Color coding:
Core 1: black
Core 2: light-blue
Core 3: green-yellow
Core 4: brown
Core 5: black
From 6 cores: printed numbers with (or without) a green/yellow core.



H05VVH6-F and H07VVH6-F

Cables
(mm2)		 Overall
dimensions
(mm)		 Permissible
current rating
(A)**		 D U
(cos j = 0.8)
Voltage drop
(V/A x km)		 Weight
approx.
(kg/km)

4 x 1.5

4 G 1.5

4 G 2.5

4 G 4

4 G 6

4 G 10

4 G 16

4 G 25
4 G 35

4 G 50

4 G 70

4 G 95

5 G 1.5

5 G 2.5
5 G 4
5 G 6
5 G 10
7 G 1.5
7 G 2.5
7 G 4
8 x 1.5
8 G 1.5
8 G 2.5
10 G 1.5
12 G 1***
12 x 1.5
12 G 1.5
12 G 2.5
12 G 4
14 G 1.5
16 G 1.5
18 G 1***
18 G 1.5
24 G 1***

 15 x 5
15 x 5
18.5 x 5.7
21 x 6.5
23 x 7
28.8 x 9
36.8 x 10.8
45.5 x 13.5
50.5 x 14.8
56 x 16.5
63 x 18
72.5 x 20.5
18 x 5
22 x 5.7
27 x 6.5
27 x 7
34.5 x 9
26 x 5
32.3 x 5.7
40 x 6.8
29 x 5
29 x 5
34.5 x 5.7
35 x 5
33.5 x 4.5
40.5 x 5
40.5 x 5
50.5 x 5.7
57 x 6.8
47.5 x 5
53.5 x 5
50.5 x 4.5
58 x 5
6.5 x 4.5

20
20
27
36
48
63
85
112
138

168

213
258

20.2

25

36
48 5
63
15

20

25
14
14
20
12
8
11

11
16
20
11
10
6
8
6

20.2
20.2
12.3
7.8
5.3
3.2
2.0
1.3
0.97
0.74
0.55
0.42
20.2
12.3
7.8
5.3
3.2
20.2
12.3
7.8
20.2
20.2
12.3
20.2
38.2
20.2
20.2
12.3

7.8
20.2
20.2
38.2
20.2
38.2

150
150
210
300
385
620
990
1550
2030
2650
3650
4550
180
260
380
480
780
260
380
550
300
300
405
360
320
420
420
620

880
490
560
470
620
610
