Outdoor / Indoor Two Cores Telephone Drop Wire With PVC / HDPE Insulation

Minimum Order Quantity : 10000meters Packaging Details : roll, wooden drum or request
Delivery Time : 20days after payment Payment Terms : L/C, T/T
Supply Ability : 1000000meters per month
Place of Origin: HENAN Brand Name: CN CABLE
Certification: CE Model Number: DROP WIRE

Detail Information

Conductor: Copper/tinned Copper,CCS, CCA Insulation: PVC/HDPE
Name: Telephone Drop Wire Type: Special Cables
Certification: CE Application: Outdoor / Indoor
High Light:

copper welding cable

,

special power cable

Product Description

Use for Outdoor/indoor two cores flat 8 configuration telephone drop wire



Application:

Drop cable is for connecting power amplifier and broadcasting systems, transmitting the audio signals amplified by the amplifier



Construction:

1: conductor : 0. 5mm, 0. 6mm, 0. 8mm or 0. 9mm bare/ tinned copper wire request

2: insulation: HDPE, PVC or request

3. The assembly should be consisting of two conductor lay parallel insulated to form a figure 8 configuration. It should be possible to separate the drop wire into two fully insulated conductors by cutting along the interconnecting web.

4. Polarity identification should be provide by a single ridge tracer longitudinally molded along the jacket throughout the intere length the drop wire unaided eye and to the touch.

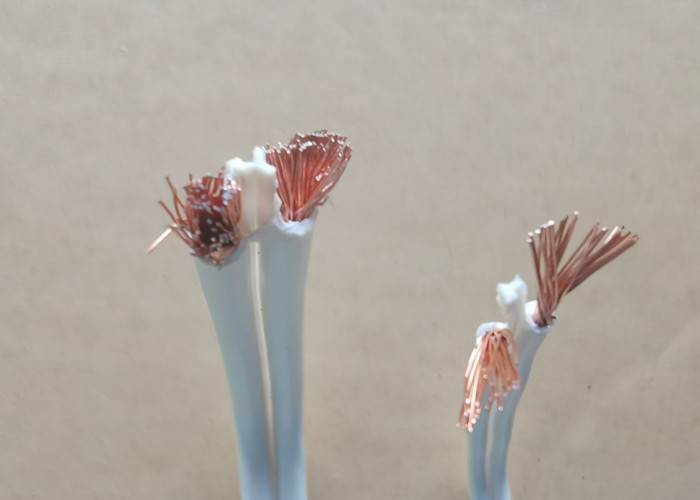

Outdoor / Indoor Two Cores Telephone Drop Wire With PVC / HDPE Insulation 0

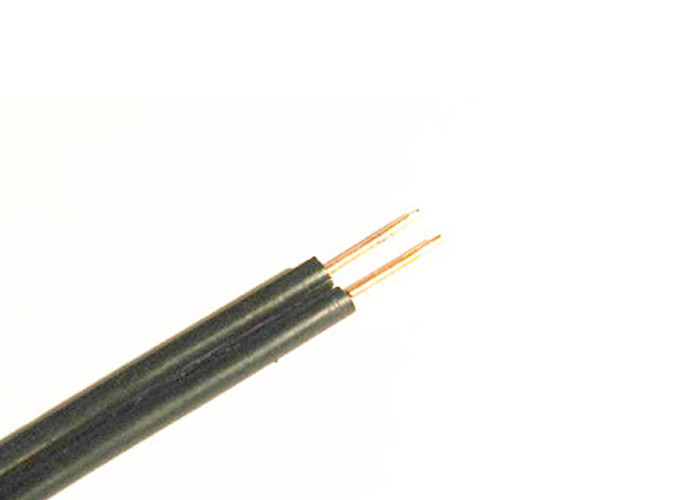

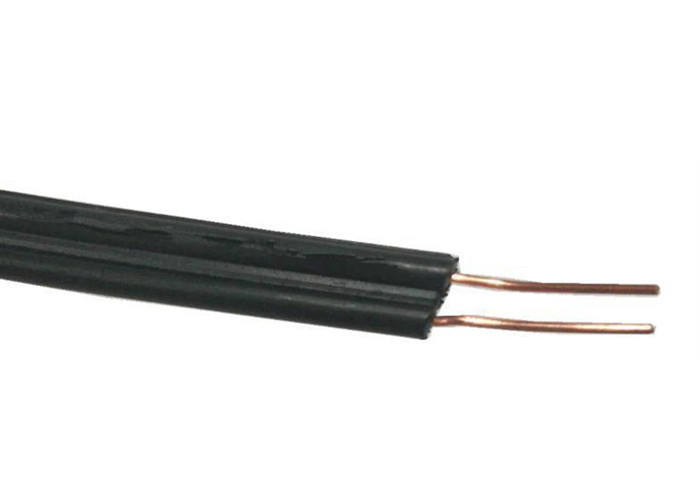

Outdoor / Indoor Two Cores Telephone Drop Wire With PVC / HDPE Insulation 1Outdoor / Indoor Two Cores Telephone Drop Wire With PVC / HDPE Insulation 2

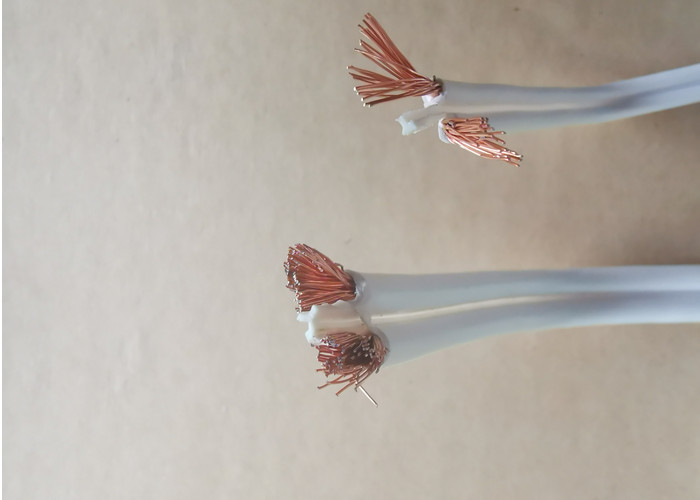

Outdoor / Indoor Two Cores Telephone Drop Wire With PVC / HDPE Insulation 3



Data sheet



Number of core Minimum insulation thickness Maximum cable dimension diameter * height Nominal weight

mm

mm

kg/km

0.71mm conductor ,2.75mm insulated wire

2

1.02

2.75*6.0

20

0.81mm conductor ,2.41mm insulated wire

2

0.8

2.5*5.4

23

0.91mm conductor ,2.41mm insulated wire

2

0.75

2.7*5.6

25

1.14mm conductor ,4.18mm insulated wire

2

1.52

4.44*9.4

34



Electrical requirements and tests:

Sparkling: Voltage application during the manufacturing process (after the extrusion) in order to detect pores or other insulation failures
Minimum insulation resistance at 15.6 ºC:
- Between conductors: 92 Mohm/km (500 VCC power must be applied during 1 minute. This test must be realized dry. )
Minimum dielectric breakdown strength at VCC:
- between both conductors: The insulation must resist during 3 minutes a continuous voltage of 7500 VCC. This test must be realized dry)
Mutual capacity: 64 - 79 nF/km at 1 KHz
Characteristic impedance: 124 ± 20 Ohms



  Maximum Individual Maximum Average
1 KHz 1.3 dB/km 0.95 dB/km
150 KHz 5.2 dB/km 4.70 dB/km
772KHz 18.0 dB/KM 15.00 dB/km
