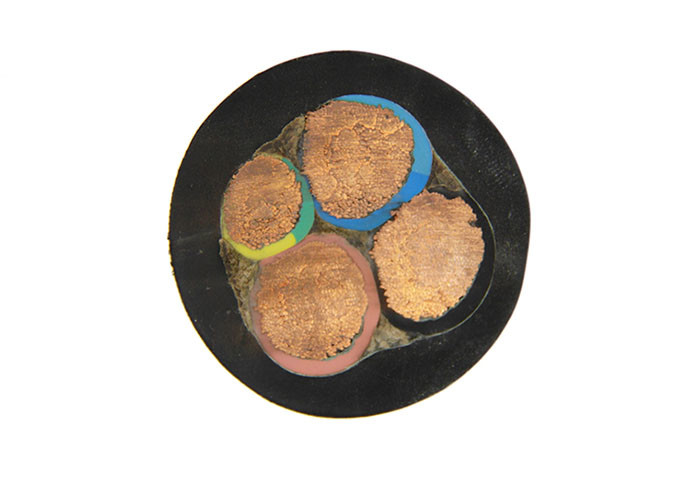

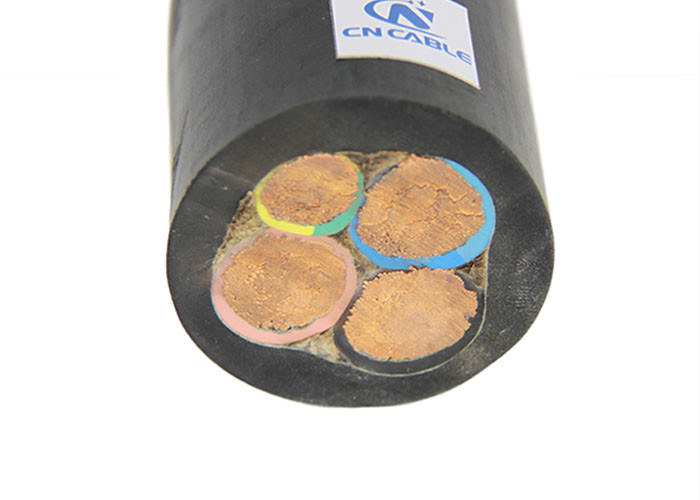

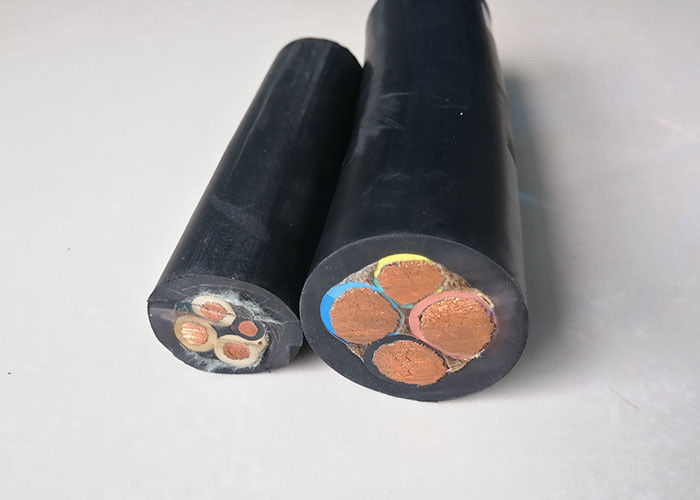

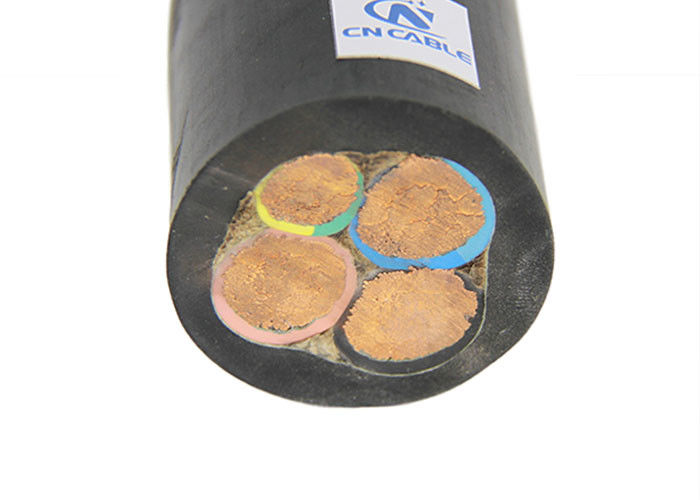

Anti UV H07RN-F Multi Cores 600V EPR Rubber Sheath Cable

Minimum Order Quantity : 500meters Packaging Details : Iron-wooden drum
Delivery Time : 30days after payment Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE Model Number: Mining H07RN-F Cable

Detail Information

Conductors:: Soft Or Annealed Tinned Coated Copper Insulation: EPR Rubber
Outer Sheath: CPE Rubber Voltage: 600V
High Light:

EPR Rubber Sheath Cable

,

600V Rubber Sheath Cable

,

H07RN-F Cable

Product Description

Heavy Duty Multi Cores Electric Neoprene Rubber Sheath Flexible Mining H07RN-F Cable







Product Description



Application

The H07RN-F rubber cable is used to connect heating units, industrial tools, mobile equipment and machinery such as vulcanizing plates, manual operation equipment, transportation motors, etc. It can be used in dry and humid areas under ordinary mechanical loads, outdoors and explosive areas, and is also suitable Industrial and agricultural applications and construction installations.



Standard

DIN VDE 0282 Part1art 4
HD 22.1
HD 22.4



Features

Low hardness with very good flexibility, high tear strength, flame retardant, Thermal stable, can bear from -30℃ ~ +70℃. It’s also good for anti-UV, ozone.



Custom options

Voltage 300V/500V, 450/750V, 600/1000V
Core No. 1, 2, 3, 4, 5 cores
Insulation EPR/EPDM
Outer sheath CR/PCP/CPE



Technical parameter

Model

Core number nominal sectional area of conductor

(mm2)

Approx. cable dia

(mm)

Approx. Cable weigh

(kg/km)

YC 2×1
2×1.5
2×2.5 11.12 165.84
2×4 12.82 227.29
2×6 14.4 293.87
2×10 19.52 575.35
2×16 23 768.09
2×25 27.8 1110.39
2×35 32.18 1488.8
2×50 37.28 1997.12
2×70 42.24 2621.53
2×95 46.7 3328.67
2×120
YC 3×1
3×1.5
3×2.5 11.91 216.21
3×4 13.73 300.17
3×6 15.4 397.17
3×10 20.95 763.38
3×16 24 1023.08
3×25 29.79 1490.06
3×35 34.46 1974.22
3×50 30.87 2702.18
3×70 45.18 3570.46
3×95 50.13 4580.42
3×120 54.5 5603.61
YC 3×1.5+1×1
3×2.5+1×1.5 12.92 261.53
3×4+1×2.5 14.68 355.07
3×6+1×4 16.6 476.63
3×10+1×6 21.2 797.18
3×16+1×6 24.96 1110.26
3×25+1×10 30.67 1628.45
3×35+1×10 34.09 2090.33
3×50+1×16 40.89 3018.41
3×70+1×25 46.13 3864.72
3×95+1×35 50.58 4957.48
3×120+1×35 53.75 5869.51



miming cable 09.jpg

LV Related Cables
Multi core LV cable.png aluminum  lv cable.png Electric wire.png
medium voltage cable (3).png High Voltage CABLE (8)0.png Service drop cable.png





Packaging & Shipping

Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum

Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port


Company Information
lv-power-cable_19

CN Cable Group is specialized in development, design, production, sales, installation and technology service of wires & cables and accessories. We have strong manufacturing capacity and rich export experience for more than 15 years. The main products of the company include: Power cables up to 500KV, bare conductors (AAC/AAAC/ ACSR/ACAR/Galvanized steel wires, etc.), ABC cables, Electric wires and Electric equipment cables, Rubber cables, Special cables, cable accessories, etc.



The company has passed Quality Management System ISO 9001:2015 and ISO 14001:2015, owned CE certificate and IEC certificate, etc. Advanced production technology and production equipments are also adopted .Some advanced producing and testing equipments are imported from Switzerland, Finland, Germany, the United States and other countries. For example, CCV cross-linked production line from Finland, and VCV cross-linked production line from German Troester, etc.



There are more than 300 workers in the factory; most of them have rich experiences in the field of cable manufacturing, engineering technology, and enterprise management. More than 40 persons are of senior professional and technical personnel, who are the upgraded technology experts and academic technology leaders. Design and production of all of our products are strictly according to the relative standards, such as ASTM, Australian standard, BS, CSA, CCITT, DIN,GB, IEC, JIS, NFC, UL, etc. Our products have been exported to more than 80 countries and regions. Such as Australia, Bangladesh, Brazil, Canada, Chile, Congo, Dominican, Ghana, Indonesia, Iran, Kenya, Nigeria, Peru, Philippines, Rwanda, Saudi Arab, South Africa, Sudan, Togo, Uganda, US, UK, Zambia.

CCA_15

Our Services



photobank (24)0.jpg



Buyer Feedback

Feedback 02.jpg



Feedback 01.jpg



Feedback 010.jpg



FAQ




Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.

Q2: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.



Q3: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!

Q4: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .
