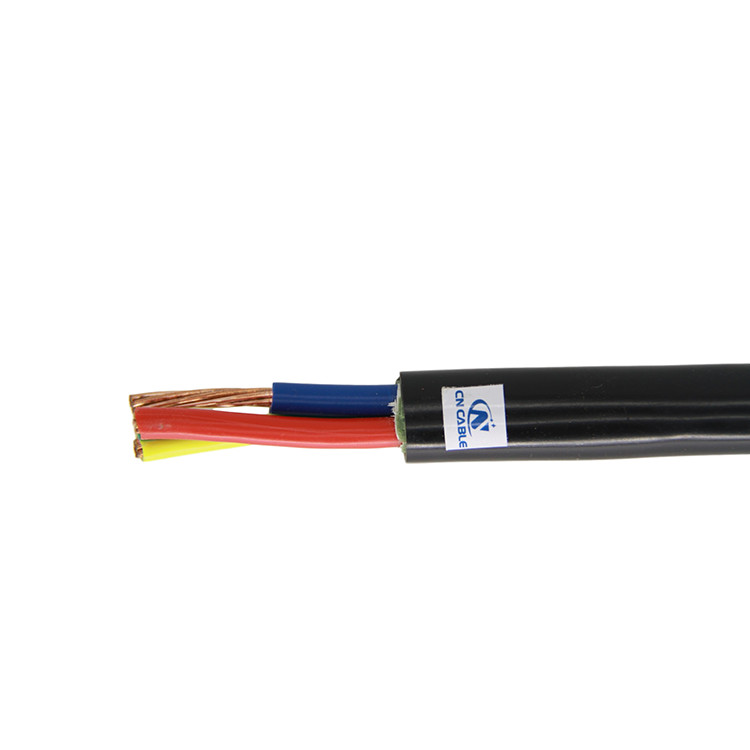

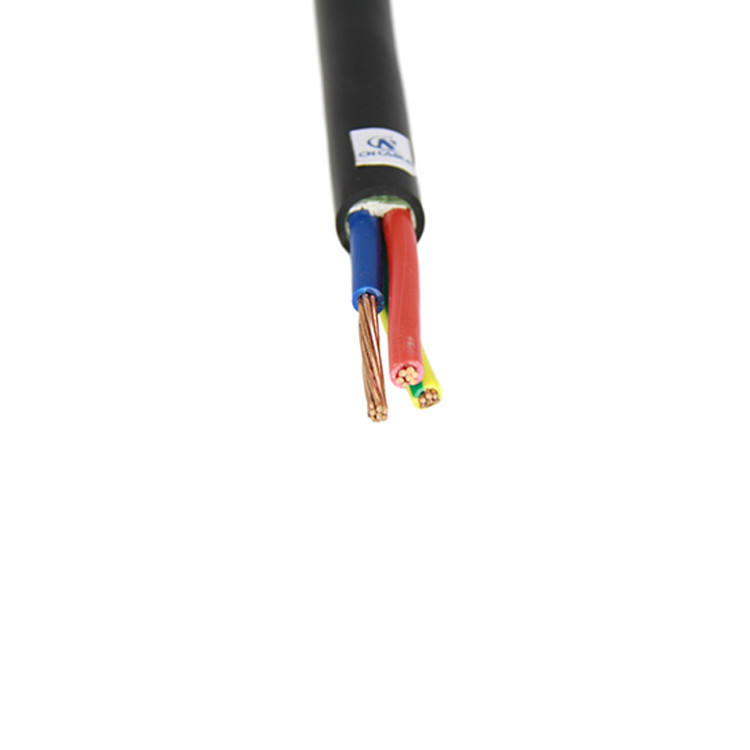

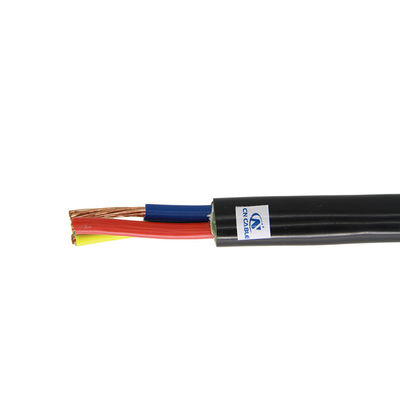

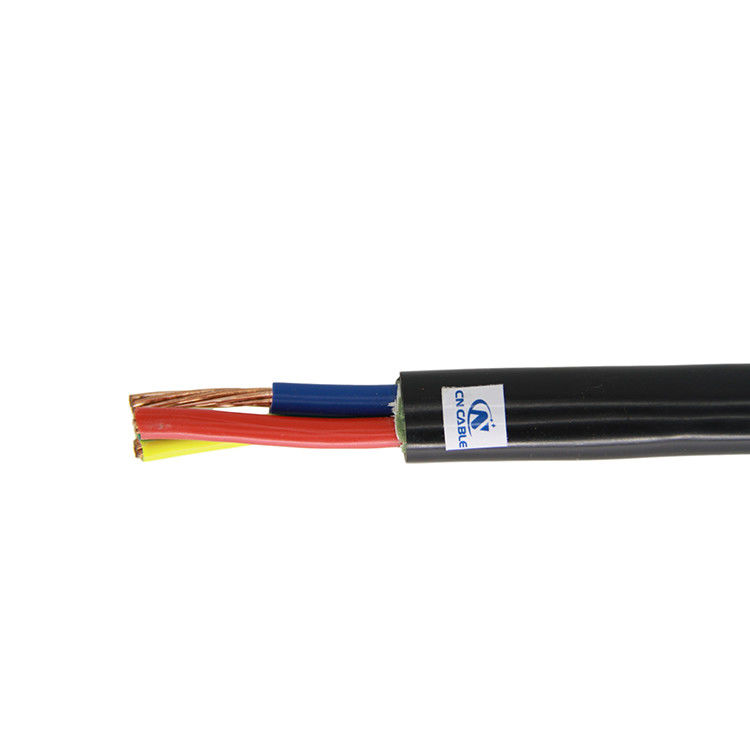

Rubber Insulated Building Site Polyurethane Cable
Rubber Insulated Building Site Polyurethane Cable Rubber Insulated Building Site Polyurethane Cable
Contact Now

Rubber Insulated Building Site Polyurethane Cable

Minimum Order Quantity : 200meters Packaging Details : Iron-wooden drum
Delivery Time : 1-4 weeks Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE Model Number: H07BQ-F

Detail Information
Conductor: Fine-stranded Tinned Or Bare Copper Core: 4 Cores
Insulation: LSOH Cross-link Polyolefin Insulation Jacket: PUR
Color: Black Sample: Free
High Light:

Building Site Polyurethane Cable

,

Rubber Insulated Polyurethane Cable

,

PUR Jacket Polyurethane Cable

Product Description

Copper Conductor Rubber Insulated H07BQ-F Polyurethane Building Site Cable







Application and Description

The H07BQ-F is termination and connection cable with high mechanical stress-resistance.
It can be used in dry, damp or wet rooms as well as in the open-air. It is ideal for
application in industrial plants, building sites, in fact everywhere where
extreme wear and tear resistance is required and where the cable is subjected
to hard utilisation.



Standard

HAR HD 22.10
VDE 0282/10

DIN EN 60228 class 5 (construction)
HD 308 S2 (core identification)



Cable Construction
Conductor: Fine-stranded tinned or bare copper
Insulation: Rubber compound (EL6)
Outer Sheath:Polyurethane (PUR), orange



Technical Characteristics:

Nominal voltage Uo/U [V] 450 / 750 Volt
Test voltage [V]AC 2500
Temperature range in motion -40°C till +90°C
Operating temperature: 200
Short circuit time: 5
Bending radius: 4
Bending radius: 5
Oil-resistant: EN 60811-2-1
Flammability: EN 60332-1-2

Cable Parameter
AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
# x mm^2 mm mm mm kg/km kg/km
16(30/30) 2 x 1.5 0.8 1.0 7.6 - 9.8 29 92
16(30/30) 3 x 1.5 0.8 1.0 8.0 - 10.4 43 109
16(30/30) 4 x 1.5 0.8 1.1 9.0 - 11.6 58 145
16(30/30) 5 x 1.5 0.8 1.1 9.8 - 12.7 72 169
14(50/30) 2 x 2.5 0.9 1.1 13.0 - 15.0 101 230
14(50/30) 3 x 2.5 0.9 1.1 17.0 - 20.0 173 398
14(50/30) 4 x 2.5 0.9 1.2 9.0 - 11.6 48 121
14(50/30) 5 x 2.5 0.9 1.3 9.6 - 12.4 72 164
12(56/28) 2 x 4 1.0 1.2 10.7 - 13.8 96 207
12(56/28) 3 x 4 1.0 1.2 11.9 - 15.3 120 262
12(56/28) 4 x 4 1.0 1.3 10.6 - 13.7 77 194
12(56/28) 5 x 4 1.0 1.4 11.3 - 14.5 115 224
10(84/28 2 x 6 1.0 1.3 12.7 - 16.2 154 327
10(84/28 3 x 6 1.0 1.4 14.1 - 17.9 192 415
10(84/28 4 x 6 1.0 1.5 11.8 - 15.1 115 311
10(84/28 5 x 6 1.0 1.6 12.8 - 16.3 173 310
