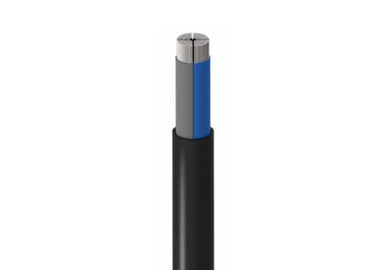

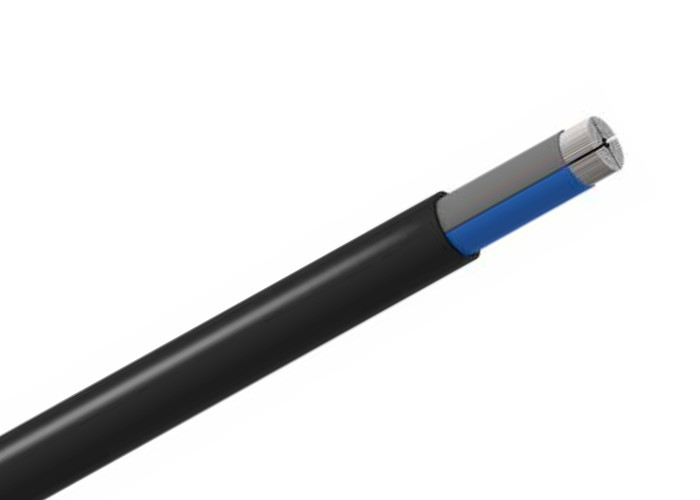

Telecommunication Equipment 600V Low Smoke Halogen Free RRU Power Cable
Contact Person : Andrea
Phone Number : 0086-371-60547601
whatsapp : +8613598873045
| Minimum Order Quantity : | 1000meters | Packaging Details : | wooden drun |
|---|
| Place of Origin: | Henan | Brand Name: | CN CABLE |
|---|---|---|---|
| Certification: | IEC | Model Number: | NA2XH |
|
Detail Information |
|||
| Conductor: | RE: Class 1 Solid Aluminum-circular Or Circular Compacted Conductor RM: Class 2 Stranded Conductor SE: Class 1 Solid Sector - Shaped Or Stranded Conductor SM: Class 2 Sector - Shaped Conductor | Insulation: | XLPE |
|---|---|---|---|
| Sheath: | Thermoplastic Halogen Free Compound Type HM4 According To HD 604 S1 | ||
| High Light: | lv armoured cable,low voltage electrical cable,low voltage power cable |
||
Product Description
APPLICATION:
XLPE insulated and halogen-free thermoplastic compound sheathed power and auxiliary control cables for the supply of electrical energy. Installations where fire and emissions of smoke and toxic fumes create a potential threat. Not suitable for use in water.
CONSTRUCTION:
Conductor
RE: Class 1 solid aluminum-circular or circular compacted
conductor
RM: Class 2 stranded conductor
SE: Class 1 solid sector - shaped or stranded conductor
SM: Class 2 sector - shaped conductor
Insulation
XLPE (Cross-Linked Polyethylene) Type DIX3 according to HD
603.1
Sheath
Thermoplastic halogen free compound Type HM4 according to
HD 604 S1
CHARACTERISTICS
Voltage Rating (Uo/U)
600/1000V
Temperature Rating
Fixed: -40oC to +90oC
Maximum Short-Circuit Conductor Temperature
+250oC
Minimum Bending Radius
Single core: 15 x overall diameter
Multi-core: 12 x overall diameter
Maximum Permissible Tensile Stress With Cable Grip For
Cu-Conductor
50N/mm2
Sheath Colour
Black
Core Identifcation
| NO. OF CORES | NA2XH - J | NA2XH-O |
| 1 2 3 3* 4 4* 5 7 and more | Green/Yellow - Green/Yellow Blue Brown - Green/Yellow Brown Black Grey Green/Yellow Blue Brown Black Green/Yellow Blue Brown Black Grey Green/Yellow, other cores Black with White numbering | Black Blue Brown Brown Black Grey Blue Brown Black Blue Brown Black Grey Blue Brown Black Grey Black Black with White numbering |
DIMENSIONS
| NO. OF CONDUCTOR | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 1 1 1 1 1 1 1 1 1 1 1 1 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 | 25 35 50 70 95 120 150 185 240 300 400 500 16 25 35 35 50 50 70 70 95 95 120 120 150 150 185 185 240 240 70 + 35 120 + 70 150 + 70 185 + 95 240 + 120 | RM RM RM RM RM RM RM RM RM RM RM RM RM RM RM SE SM SE SM SE SM SE SM SE SM SE SM SE SM SE SM+SM SM+SM SM+SM SM+SM SM+SM | 9.9 11 12.5 14.1 16.1 17.5 19.6 21.8 24 26.7 29.7 33.1 16.3 19.6 22.1 19 22.4 21.2 26.1 25.2 29.1 27.8 32.2 30.8 36.2 33.9 40.1 37.6 44.9 41.8 28.3 35.1 39.7 43.7 49.1 | 132 166 211 283 376 456 560 697 878 1073 1347 1705 364 530 684 486 655 622 903 859 1174 1115 1446 1379 1780 1685 2197 2089 2782 2634 1044 1704 2065 2563 3237 |
| NO. OF CONDUCTOR | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 5 5 5 5 5 5 5 5 5 | 25 35 35 50 50 70 70 95 95 120 120 150 150 185 185 240 240 25 35 50 70 95 120 150 185 240 | RM SM SE SM SE SM SE SM SE SM SE SM SE SM SE SM SE RM RM RM RM SM SM SM SM SM | 21.7 22.4 21.6 25.4 24.6 29.7 28.8 33.3 32.1 37.2 35.5 41.3 39.4 45.7 43.4 51.2 48 23.9 27 31.3 35.8 36.5 39.2 45.4 50.1 55.2 | 636 649 623 845 810 1178 1126 1538 1467 1903 1817 2328 2223 2874 2750 3646 3465 763 986 1309 1771 1891 2306 2865 3534 4482 |
ELECTRICAL CHARACTERISTICS
Current Carrying Capacity
| NO. OF LOADED CORES | 1 | 3 | 3 |
| NOMINAL CROSS SECTIONAL AREA mm2 | LAYING IN AIR AT 30ºC A | ||
| 25 35 50 70 95 120 150 185 240 300 400 500 | 136 166 205 260 321 376 431 501 600 696 821 971 | 102 126 149 191 234 273 311 360 427 507 600 695 | 106 130 161 204 252 295 339 395 472 547 643 754 |
DE-RATING FACTORS
| AMBIENT TEMPERATURE | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
| RATING FACTOR | 1.15 | 1.12 | 1.08 | 1.04 | 1.00 | 0.96 | 0.91 | 0.87 | 0.82 |
