BS 6004 Single Wire 300/500V 450/750V LV Power Cable
BS 6004 Single Wire 300/500V 450/750V LV Power Cable
Contact Now

BS 6004 Single Wire 300/500V 450/750V LV Power Cable

Minimum Order Quantity : 1000meters
Place of Origin: Henan ,China Brand Name: CN CABLE
Certification: VDE 0281-3 , VDE 0295 ,IEC 60228 Model Number: H05V-R ,H07V-R

Detail Information
Conductor: Stranded Copper Wire Insulated: PVC
Colour: Black/Brwon/Blue/Green/Grey/Orange/Red/Yellow ,etc Application: Fix Installation
Type: Low Voltage Jacket: N.A.
High Light:

BS 6004 LV Power Cable

,

450/750V LV Power Cable

,

300/500V LV Power Cable

Product Description



H05V-R / H07V-R Wire and cable PVC Insulated single wire

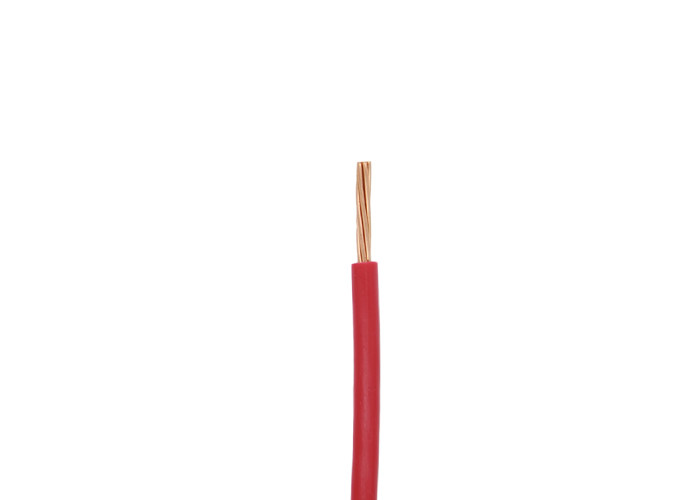

BS 6004 Single Wire 300/500V 450/750V LV Power Cable 0



Application

These cables are used for installation indoors, in cable tubes, exposed or buried in plaster, and in industrial plants or switching stations, underground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required.

Standard

BS 6004, VDE 0281-3

Cable Construction

Conductor: Stranded bare copper wire , class 2

Insulation: PVC

Color available: Black/Brwon/Blue/Green/Grey/Orange/Red/Yellow ,etc

Technical Characteristics:

Rated voltage: 300/500v (H05V-R)/ 450/750v (H07V-R)

Test voltage: 2000V(H05V-R)/2500V (H07V-R)

Flexing bending radius: 15 x D

Static bending radius: 15 x D

Temperature range: -5℃ to +70℃

Short circuit temperature: 160 ℃

Flame retardant: IEC 60332.1

Parameter



Conductor size Conductor PVC Insulation Cable overall Dia. Weight
AWG MM2 Stranding no. Single Wire dia. Dia. Thickness mm kg/km
20 0.5189 7 0.31 0.93 0.6 2.1 9
18 0.8107 7 0.39 1.17 0.6 2.4 13
16 1.318 7 0.49 1.47 0.7 2.9 19
14 2.075 7 0.62 1.86 0.8 3.5 29
12 3.332 7 0.78 2.34 0.8 3.9 42
10 5.26 7 0.98 2.94 0.8 4.5 61
8 8.37 7 1.23 3.69 1 5.7 98
6 13.3 7 1.56 4.68 1 6.7 147
4 21.15 19 1.19 5.95 1.2 8.4 231
3 26.67 19 1.34 6.7 1.2 9.1 287
2 33.62 19 1.5 7.5 1.2 9.9 352
1 42.41 19 1.69 8.45 1.4 11.3 449
2/0 67.43 19 2.13 10.65 1.4 13.5 690
4/0 107.2 19 2.68 13.4 1.6 16.6 1078
-- 1.5 7 0.52 1.56 0.7 3 21
-- 2.5 7 0.67 2.01 0.8 3.6 33
-- 4 7 0.85 2.55 0.8 4.2 49
-- 6 7 1.04 3.12 0.8 4.7 68
-- 10 7 1.35 4.05 1.0 6.1 114
-- 16 7 1.71 5.13 1.0 7.1 175
-- 25 7 / 6.0 1.2 8.8 268
-- 35 7 / 7.0 1.2 10 365
-- 50 19 / 8.2 1.4 12 520
-- 70 19 / 9.9 1.4 13.7 714
-- 95 19 / 11.6 1.6 15.8 961
-- 120 37 / 13.0 1.6 17.4 1190
-- 150 37 / 14.4 1.8 19.5 1488
