Detail Information |
|||
Conductor: | Solid Copper Wire | Insulated: | PVC |
---|---|---|---|
Colour: | Black/Brwon/Blue/Green/Grey/Orange/Red/Yellow ,etc | Application: | Fix Installation |
Type: | Low Voltage | Jacket: | N.A. |
High Light: | 2000V PVC Insulated Cable,2500V PVC Insulated Cable,VDE 0295 PVC Insulated Cable |
Product Description

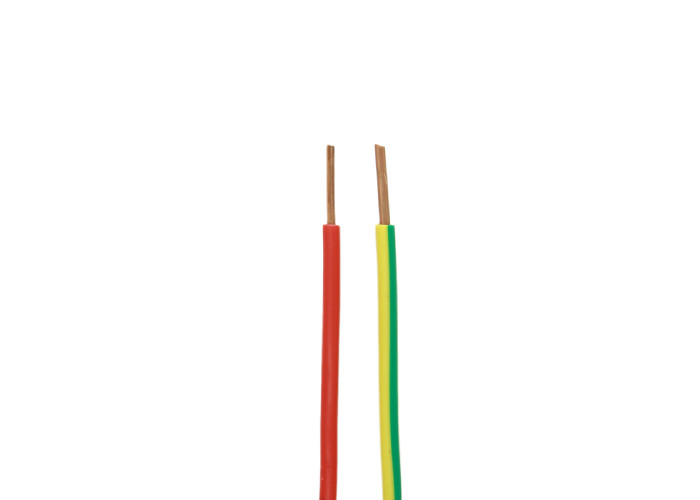

Electric wire and PVC Insulated cable H05V-U / H07V-U
Application:
H05V-U cables are used for protected fixed installations inside appliances and in or on lighting fittings. in dry rooms, in production facilities, switch and distributor boards, in pipes, under and surface mounting of plasters.
Application:
H07V-U Cables are used for indoor fixed installations in dry locations, in switchboards and distributors, under and surface mounting of plasters or on suitably objects. They are not allowed to install for direct laying in cable trays, channels or tanks.
Production Standard:
VDE 0281-3 , VDE 0295 ,IEC 60228
Cable Construction:
Conductor: Solid bare copper wire
Insulation: PVC
Color available: Black/Brwon/Blue/Green/Grey/Orange/Red/Yellow ,etc
Technical Characteristics:
Rated voltage: 300/500v (H05V-U)/ 450/750v (H07V-U)
Test voltage: 2000V(H05V-U)/2500V (H07V-U)
Flexing bending radius: 15 x D
Static bending radius: 15 x D
Temperature range: -5℃ to +70℃
Short circuit temperature: 160 ℃
Flame retardant: IEC 60332.1
Conductor size | Conductor | PVC Insulation Thickness | Cable overall Dia. |
Weight kg/km |
|||
Stranding no. | Single Wire dia. | Dia. | |||||
AWG | MM2 | / | mm | mm | mm | mm | |
20 | 0.51 | 1 | 0.81 | 0.81 | 0.6 | 2 | 9 |
18 | 0.81 | 1 | 1.02 | 1.02 | 0.6 | 2.2 | 12 |
16 | 1.31 | 1 | 1.3 | 1.3 | 0.7 | 2.7 | 19 |
14 | 2.07 | 1 | 1.63 | 1.63 | 0.8 | 3.2 | 28 |
12 | 3.33 | 1 | 2.06 | 2.06 | 0.8 | 3.7 | 41 |
10 | 5.26 | 1 | 2.59 | 2.59 | 0.8 | 4.2 | 60 |
-- | 0.5 | 1 | 0.80 | 0.80 | 0.6 | 2 | 8 |
-- | 0.75 | 1 | 0.98 | 0.98 | 0.6 | 2.2 | 12 |
-- | 1 | 1 | 1.13 | 1.13 | 0.6 | 2.3 | 14 |
-- | 1.5 | 1 | 1.38 | 1.38 | 0.7 | 2.8 | 20 |
-- | 2.5 | 1 | 1.78 | 1.78 | 0.8 | 3.4 | 32 |
-- | 4 | 1 | 2.26 | 2.26 | 0.8 | 3.9 | 48 |
