Dc 3 Phase 4 Wire Copper Underground Multicore Power Cable PVC Jacket
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
Detail Information |
|||
Conductor: | Flexible Copper Or Tinned Copper | Insulated: | Flame Retardant Low Smoke Halogen Free Polyolefi |
---|---|---|---|
Colour: | Black And Grey | Application: | Industrial,Construction |
Type: | Low Voltage | Jacket: | Flame Retardant Low Smoke Halogen Free Polyolefin |
High Light: | Halogen Free RRU Power Cable,600V RRU Power Cable,Low Smoke RRU Power Cable |
Product Description

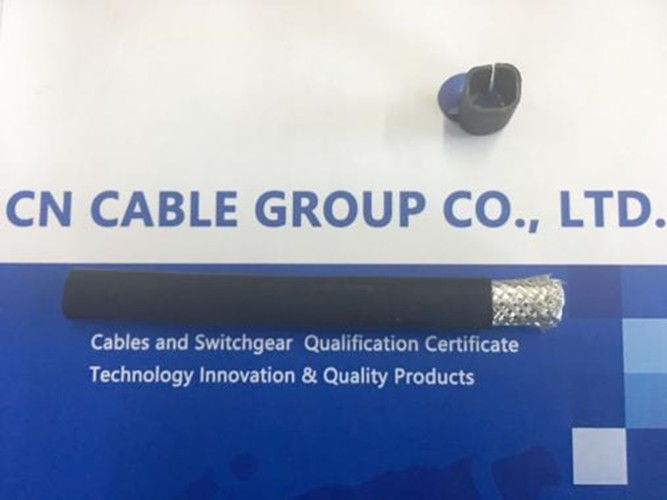

600V Telecommunication Equipment Low Smoke Halogen Free RRU Power Cable
Cable Application
Halogen free, shielded and flexible connecting cable for use in telecom equipment where there are requirements for low inductance and good temperature resistance. Suitable in areas that require high electromagnetic compatibility. Grey jacket for indoor use. Black jacket is sunlight resistant, for outdoor use.
Cable Construction
Conductor:Stranded, annealed copper, tinned, flexible, according to IEC 60228, class 5. Three parallel cores to form a flat conductor.
Insulation:Flame retardant Low Smoke Halogen Free Polyolefin, black and grey.
Shield:AL/PE laminate together with braid of annealed and tinned copper wires + Al-polyester foil.
Sheath: Flame retardant Low Smoke Halogen Free Polyolefin, black and grey.
Other Properties:
Operating voltage : Max 600V
Operating temperature : Max 90ºC, dry
Fire resistance IEC 60332-3 cat C
Product No. | Conductor | Application | Insulation Thickness (mm) |
Insulation Color |
Sheath Color |
Sheath Nominal Size (mm) |
TFL 492 322 |
2×2.5mm2 (14AWG) |
Indoor | 0.6 |
Black |
Grey | 7.0×7.3 |
TFL 492 324 |
2×6mm2 (10AWG) |
Indoor | 0.7 |
Grey and Black |
Grey | 9.5×9.5 |
TFL 492 324/0 |
2×6mm2 (10AWG) |
Outdoor | 0.7 |
Grey and Black |
UV-stabilized |
9.5×9.5 |
TFL 492 325 |
(8AWG) |
Indoor | 0.7 |
Grey and Black |
Grey | 10.5×11.5 |
TFL 492 325/0 |
2×10mm2 (8AWG) |
Outdoor | 0.7 |
Grey and Black |
Black UV-stabilized |
10.5×11.5 |
TFL 492 326/0 |
2×16mm2 (6AWG) |
Outdoor | 0.7 |
Grey and Black |
Black UV-stabilized |
11.8×13.6 |
