Dual Conductor Maximum Rated Voltage 600V TEL Cable Durable For Communication

Minimum Order Quantity : 1000meters Packaging Details : wooden- drum
Delivery Time : 20days after payment
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE Model Number: dual TEL

Detail Information

Conductor: Copper Insulation: Flame Retardant Polyolefin.
Color Identification: Grey And Black Shield: AL/PET Tape With Annealed Aluminum Wires
Sheath:: Flame Retardant, Black Polyolefin
High Light:

copper welding cable


special power cable

Product Description

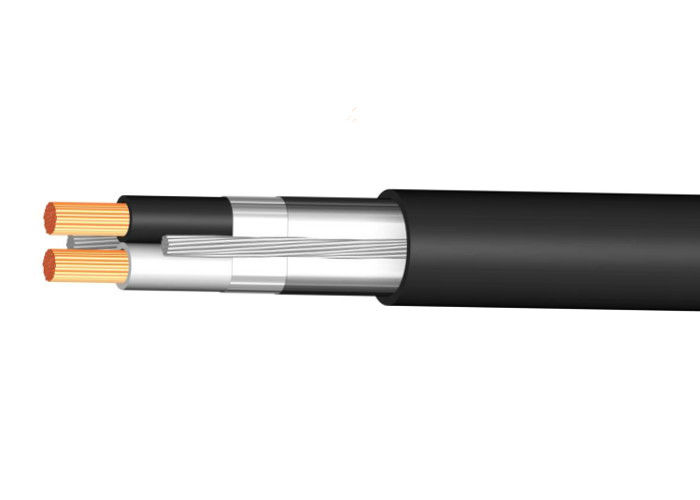

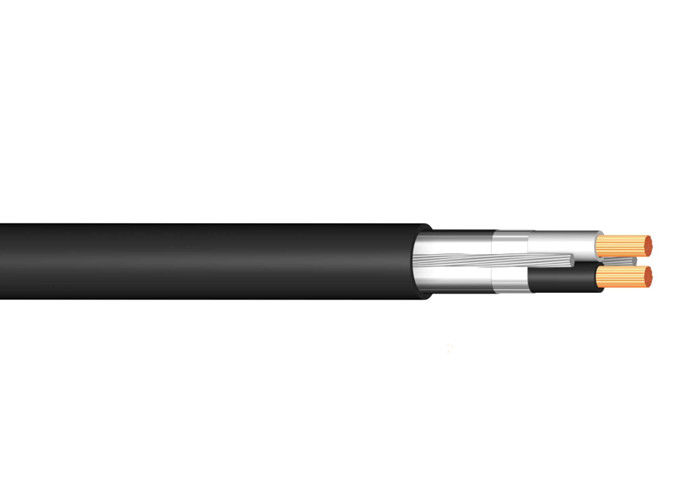

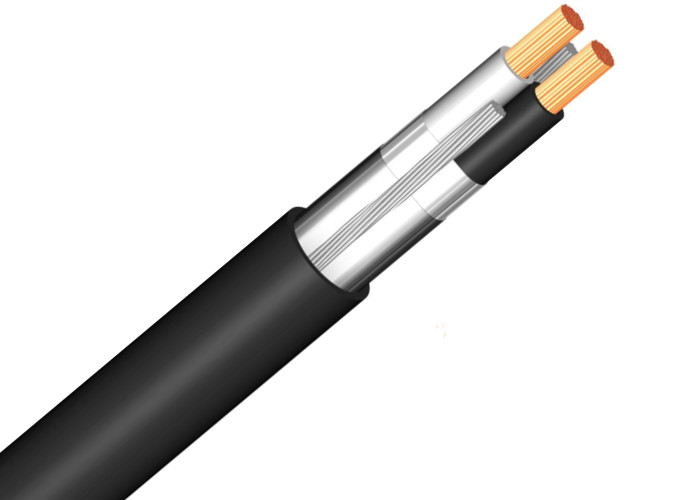

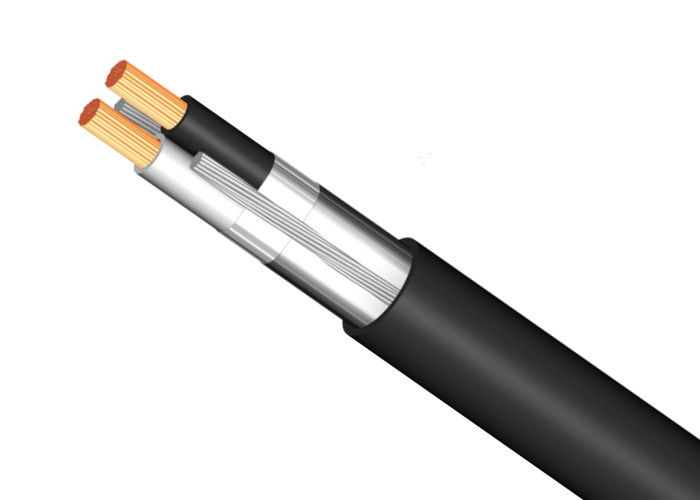

Dual conductor maximum rated voltage 600v TEL cable use for communication



Halogen free, flame retardant and shielded cable for power supply to radio and other telecom equipment. Sunlight resistant per UL 1581 sec 1200, not for direct burial. CPR and UL listed. Indoor and outdoor use.

1. Conductor: Stranded, annealed copper wires class 5IEC 60228.
2. Insulation: Flame retardant polyolefin.

Color identification: grey and black.
3. Shield: AL/PET tape with annealed aluminum wires. Max. resistance 4.95 Ω/km.
4. Sheath: Flame retardant, black polyolefin.

Rated voltage: Max. 600 V

Fire classification IEC 60332-3-24 (Cat C)
UL 1685, Vertical Tray
CPR Class Dca
Minimum operating temperature: -20°C(-40°C when fixed)
Fulfils low voltage directive, CE: Yes
Maximum operating temperature+90°C

Fulfils RoHS: Yes
Minimum bending radius :5 x Outer diameter

Fulfils REACH: Yes


Dual Conductor Maximum Rated Voltage 600V TEL Cable Durable For Communication 0


Technical data:

No. of cores and cross-section


Outer Diameter


Cable Weight


Effective resistance of conductor and shield




2*2.5(2*14AWG) 7.7 91 7.98 0.6
2*4(2*12AWG) 8.6 124 4.95 0.6
2*6(2*10AWG) 9.4 160 3.30 0.6
2*10(2*8AWG) 10.7 237 1.91 0.6
2*16(2*6AWG) 12.5 346 1.21 0.6
