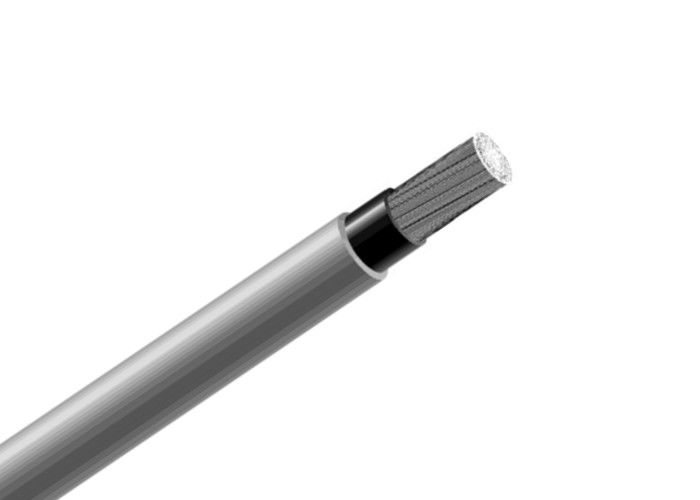

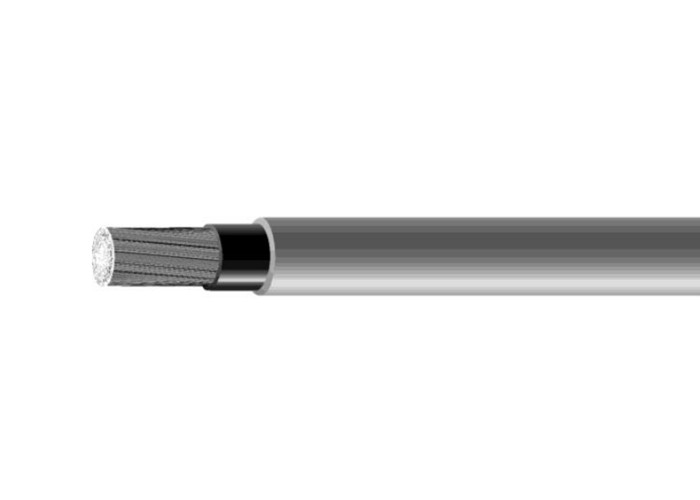

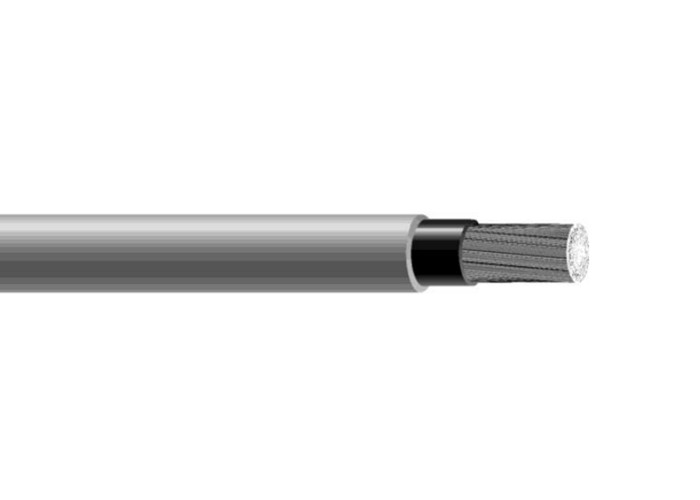

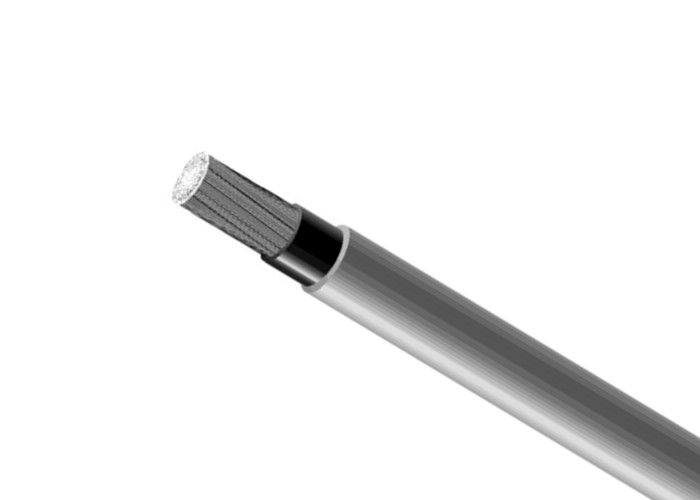

Annealed Bare Copper Single Core Special Power Cable TFL Power Cables
Annealed Bare Copper Single Core Special Power Cable TFL Power Cables Annealed Bare Copper Single Core Special Power Cable TFL Power Cables Annealed Bare Copper Single Core Special Power Cable TFL Power Cables Annealed Bare Copper Single Core Special Power Cable TFL Power Cables
Contact Now

Annealed Bare Copper Single Core Special Power Cable TFL Power Cables

Minimum Order Quantity : 1000meters Packaging Details : Roll , drum
Delivery Time : 20 days after payment Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN cable
Certification: CE Model Number: TFL

Detail Information
Conductor: Stranded, Annealed Bare Copper, Flexible Insulation: TPE, Black
Jacket: TPE, Grey Operating Voltage: 0,6 / 1kV
High Light:

copper welding cable

,

special power cable

Product Description

Use for communication stranded annealed bare copper single core TFL power cable



Application

Flexible, halogen free cable for connection of back-up batteries, central office power distribution or grounding.

Conductor

Stranded, annealed bare copper, flexible according to IEC 60228 class 5.

Insulation

Flame retardant TPE, black

Jacket

Flame retardant TPE, grey

Approvals

UL-listed, “Cable Tray Use”

Operating voltage

0,6 / 1kV

Operating temperature

Max 90 ºC

Fire resistance

IEC 60332-3 cat C UL 1685, Vertical Tray Flame Test



Technical Data

Conductors x size Diameter, nom. (mm) Weight/100m Resistance
Conductor Insulation Jacket (kg) (W/km)
1 x 25mm² (4 AWG) 7,2 10,0 12,8 35 0,780
1 x 35mm² (2 AWG) 7,8 10,6 13,4 45 0,554
1 x 50mm² (1 AWG) 9,5 12,3 15,1 60 0,386
1 x 70mm² (2/0 AWG) 11,0 13,8 16,7 77 0,272
1 x 95mm² (3/0 AWG) 12,5 15,7 18,9 102 0,206
1 x 150mm² (250 kcmil) 16,5 20,1 23,3 155 0,129
1 x 300mm² (500 kcmil) 23,0 27,9 31,8 313 0,064























Ordering Information

Conductors x size Length Total weight
(m) (kg)
1 x 25mm² (4 AWG) 500 200
1 x 35mm² (2 AWG) 500 250
1 x 50mm² (1 AWG) 500 324
1 x 70mm² (2/0 AWG) 500 413
1 x 95mm² (3/0 AWG) 500 593
1 x 150mm² (250 kcmil) 240 402
1 x 300mm² (500 kcmil) 250 898



Annealed Bare Copper Single Core Special Power Cable TFL Power Cables 0
