SY Control Flexible Special Cables Aluminium Ally 8000 Conductor Design

Contact Now

SY Control Flexible Special Cables Aluminium Ally 8000 Conductor Design

Minimum Order Quantity :	10000meters	Packaging Details :	Roll, drum
Delivery Time :	20days after payment	Payment Terms :	L/C, T/T

Place of Origin:	Henan	Brand Name:	CN CABLE
Certification:	CE	Model Number:	CONCENTRIC CABLE

Detail Information
Conductor:	Aluminium Ally 8000 Conductor	Insulation:	XLPE
Outer Sheath:	PE
High Light:	copper welding cable , special power cable

Product Description

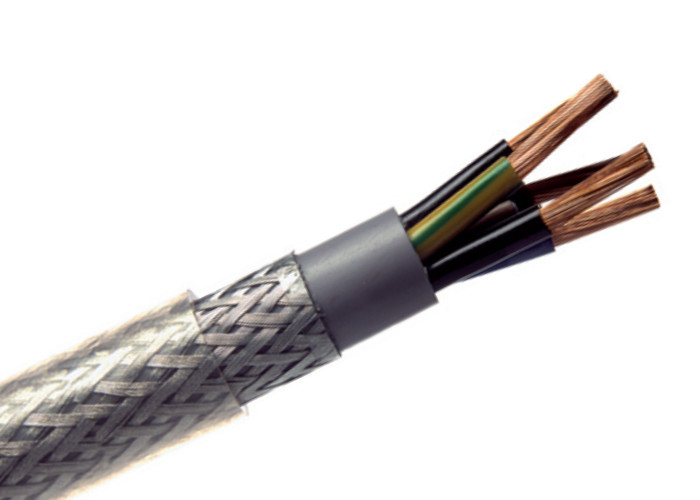

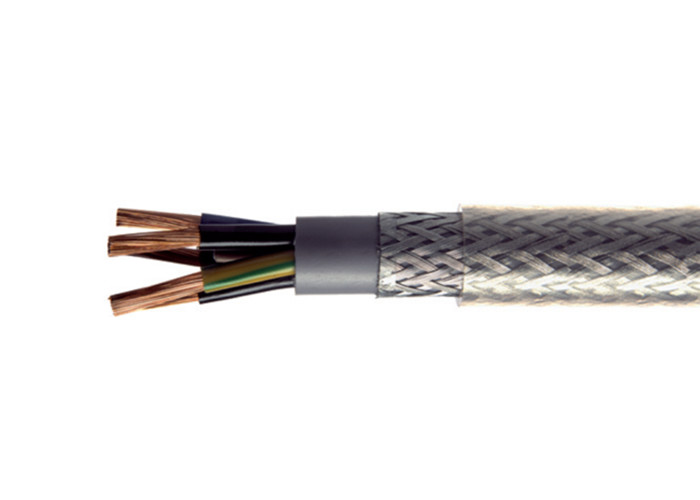

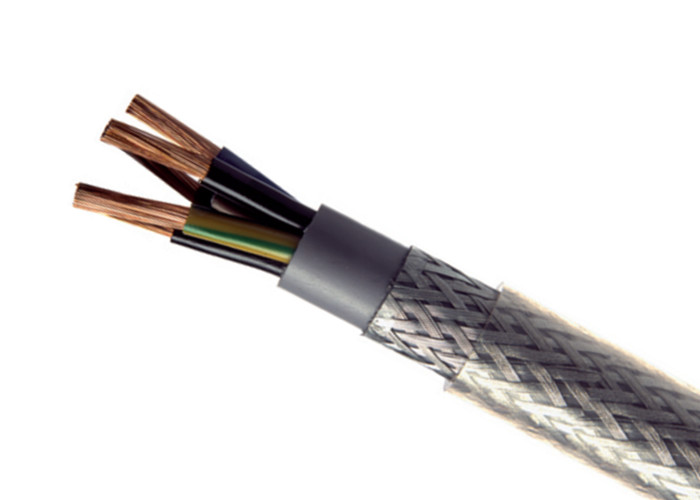

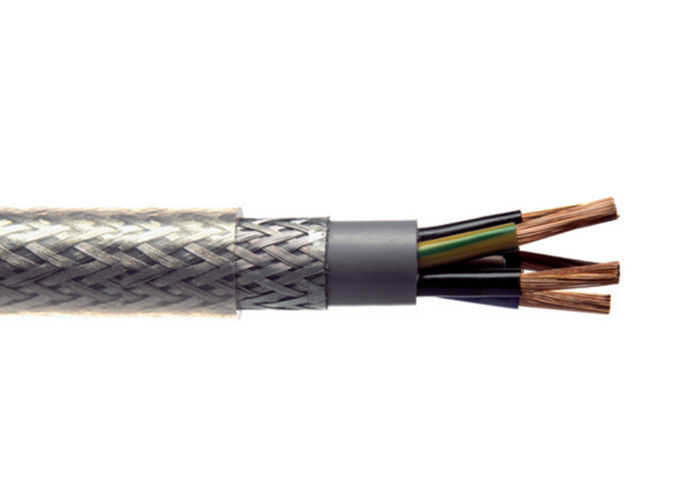

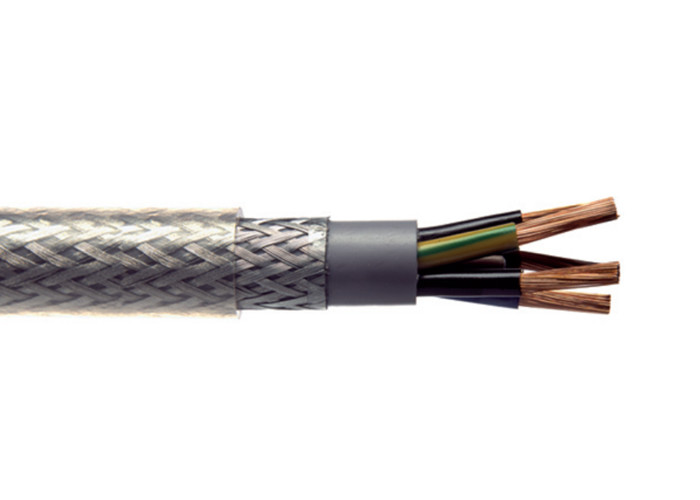

SY Control Flexible Cable can be used outdoors when protected, and in dry or moist conditions indoors

Application

Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for ﬂexible use in conditions of light mechanical stress. Can be used outdoors when protected,

and in dry or moist conditions indoors.

Standards

Generally to BS6500, VDE0250

Conductor

Class 5 ﬂexible plain stranded copper conductors to BS EN 60228:2005 (previously BS6360), VDE0295, IEC60228.

Insulation: PVC

Bedding: PVC
Braiding: GSWB (Galvanised Steel Wire Braid)
Sheath: PVC

Sheath Color: Transparent
Voltage Rating: 300/500V
Temperature Rating: Fixed: -35 to +70°C, Flexing: -15 to +70°C
Minimum Bending Radius: 10 x overall diameter
Core Identification: lack with White numbers. (3 Cores and above to include Green/Yellow) Colored cores available
Note
SY Cables are not suitable for direct connection to the public mains supply.

SY Control Flexible Special Cables Aluminium Ally 8000 Conductor Design 0

Dimensions

No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Overall Diameter mm	Nominal Weight kg/Km	FCGCXT Gland
SY Control Flexible Cable - 2 Cores
2 x 0.50	5.3	84	16/20SS
2 x 0.75	7.5	73	20S
2 x 1.00	7.7	79	20S
2 x 1.50	8.5	96	20S
2 x 2.50	9.2	130	20S
SY Control Flexible Cable - 3 Cores
3 x 0.50	6.3	85	16/20SS
3 x 0.75	7.8	82	20S
3 x 1.00	8.0	90	20S
3 x 1.50	8.5	117	20S
3 x 2.50	9.7	155	20S
3 x 4.00	11.4	216	20
3 x 6.00	13.1	307	25
3 x 10.00	16.3	483	25
3 x 16.00	19.6	760	32
SY Control Flexible Cable - 4 Cores
4 x 0.50	7.3	82	20S
4 x 0.75	8.2	89	20S
4 x 1.00	8.5	106	20S
4 x 1.50	9.2	132	20S
4 x 2.50	10.7	191	20S
4 x 4.00	12.3	271	20
4 x 6.00	14.5	379	25
4 x 10.00	18.0	608	25
4 x 16.00	21.8	945	32
4 x 25.00	25.1	1349	32
4 x 35.00	29.6	1839	40
4 x 50.00	34.3	2605	50S
4 x 70.00	38.5	3453	50
4 x 95.00	43.0	4544	50
SY Control Flexible Cable - 5 Cores
5 x 0.50	8.3	90	20S
5 x 0.75	8.8	101	20S
5 x 1.00	9.1	119	20S
5 x 1.50	9.7	147	20S
5 x 2.50	11.5	224	20
5 x 4.00	13.8	330	25
5 x 6.00	16.4	474	25
5 x 10.00	19.5	734	32
5 x 16.00	23.4	1123	32
5 x 25.00	28.3	1670	40
5 x 35.00	32.0	2197	50S
SY Control Flexible Cable - 6 Cores
6 x 1.50	11.5	213	20
SY Control Flexible Cable - 7 Cores
7 x 0.50	9.1	117	20S
7 x 0.75	9.3	127	20S
7 x 1.00	9.7	145	20S
7 x 1.50	10.6	184	20S
7 x 2.50	12.6	285	20
7 x 4.00	15.4	442	25
7 x 6.00	17.7	615	25
7 x 10.00	21.6	920	32
7 x 16.00	26.0	1494	40
SY Control Flexible Cable - 8 Cores
8 x 1.50	11.7	207	20
SY Control Flexible Cable - 9 Cores
9 x 1.50	13.3	254	25
SY Control Flexible Cable - 12 Cores
12 x 0.50	10.6	153	20S
12 x 0.75	11.5	187	20
12 x 1.00	12.1	226	20
12 x 1.50	13.5	293	25
12 x 2.50	16.6	460	25
SY Control Flexible Cable - 14 Cores
14 x 1.50	14.2	332	25
SY Control Flexible Cable - 14 Cores
18 x 0.50	11.6	255	20
18 x 0.75	13.3	258	25
18 x 1.00	13.8	311	25
18 x 1.50	16.3	433	25
18 x 2.50	19.3	654	32
SY Control Flexible Cable - 21 Cores
21 x 0.50	13.4	244	25
21 x 0.75	14.3	368	25
SY Control Flexible Cable - 25 Cores
25 x 0.75	16.3	370	25
25 x 1.00	16.9	438	25
25 x 1.50	19.0	572	25
25 x 2.50	23.2	891	32
SY Control Flexible Cable - 34 Cores
34 x 0.75	18.0	473	25
34 x 1.00	18.5	561	25
34 x 1.50	21.2	739	32
SY Control Flexible Cable - 42 Cores
42 x 1.50	22.8	906	32
SY Control Flexible Cable - 50 Cores
50 x 0.75	20.5	649	32
50 x 1.00	22.4	794	32
50 x 1.50	28.1	1227	40
SY Control Flexible Cable - 61 Cores
61 x 1.00	27.3	999	40
SY Control Flexible Cable - 65 Cores
65 x 1.00	27.5	1091	40

Class 5 ﬂexible Copper Conductors for Single Core and Multi-Core cables

1	2	3
Nominal Cross Sectional Area mm2	Maximum Diameter of Wires in Conductor mm	Maximum Resistance of Conductor at 20ºC
Nominal Cross Sectional Area mm2	Maximum Diameter of Wires in Conductor mm	Plain Wires ohms/Km
0.75	0.21	26.0000
1.00	0.21	19.5000
1.50	0.26	13.3000
2.50	0.26	7.9800
4.00	0.31	4.9500
6.00	0.31	3.3000
10.00	0.41	1.9100
16.00	0.41	1.2100
25.00	0.41	0.7800
35.00	0.41	0.5540
50.00	0.41	0.3860
70.00	0.51	0.2720
95.00	0.51	0.2060

Current Carrying Capacity (amperes) at 30ºC

Nominal Cross Sectional Area mm²	Current Rating Amps
0.50	7
0.75	12
1.00	15
1.50	18
2.50	26
4.00	34
6.00	44
10.00	61
16.00	82
25.00	108
35.00	135
50.00	168
70.00	207
95.00	250

Conversion Factors
Multi-Conductor cables with cross sectional area up to 10mm2

No. of Cores	Conversion Factor
5	0.75
7	0.65
10	0.55
14	0.50
19	0.45
24	0.40
40	0.35
61	0.30
