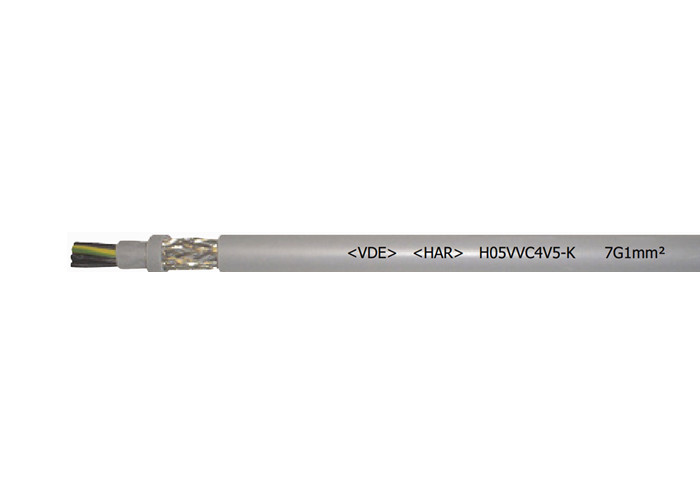

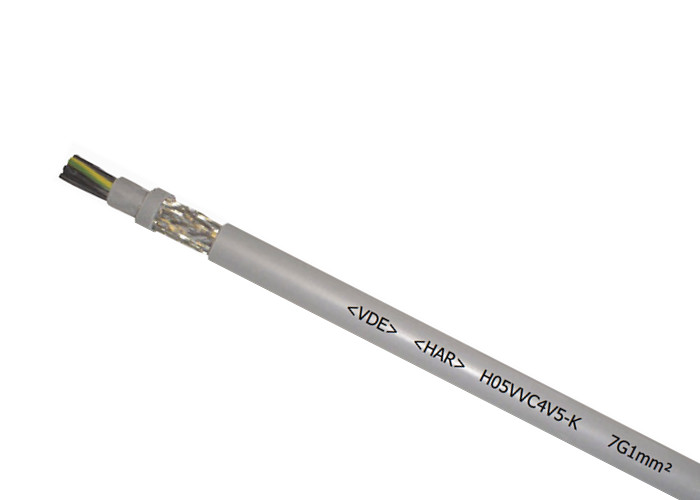

H05VVC4V5-K Flexible Special Cables PVC Outer Sheath With VDE Approval

Product Description

H05VVC4V5-K flexible cable, number coded, Cu-screened and with VDE approval (NYSLYCYÖ –JZ).

APPLICATIONS

They are used as measuring and control cables in tool machinery, air-conditioners, conveyor belts and as connecting cables to machines.The above cables have been manufactured and tested according to DIN VDE 0250 part 405. They are totally oil and chemical resistant, they are ideal for protection from electromagnetic interferences. They are recommended for medium mechanical stresses.

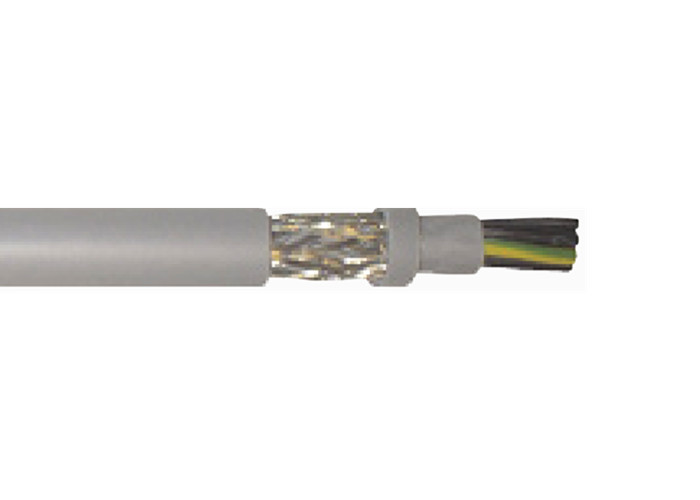

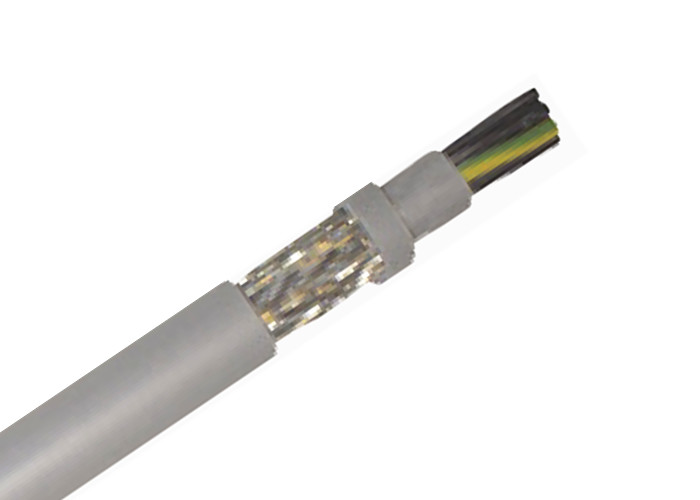

CABLE STRUCTURE Cores : bare copper, fine stranded wire conductors to DIN VDE 0295 cl.5 and IEC 228 cl.5 .

Cores insulation : from PVC TI2 . Cores stranded in layers .

Color code: black with white numbering according to DIN VDE 0293. All cables from 3 cores and above contain green-yellow earth core in the outer layer .

Inner sheath : from special PVC TM2 .

Screen : tinned copper, braid, with coverage 85%.

Outer sheath : special PVC TM5, grey color RAL 7001 self-extinguishing and flame retardant according to DIN VDE 0472 part 804 and IEC 60332-1

Specifications: Control cables from special PVC, according to DIN VDE 0250 part 405 to HD 21.13S1.

Temperature range: Flexing from –5°C to +70°C；Fixed installation from -40°C to +70 C .

Nominal voltage : Uo/U 300/500V.

Insulation resistance : 20 x km min.

Minimum bending radius: 10 x cable Ø minimum
