EPR / CPE 2000 Volts Special Cables Three Annealed Copper Conductor Power Cable

Product Description

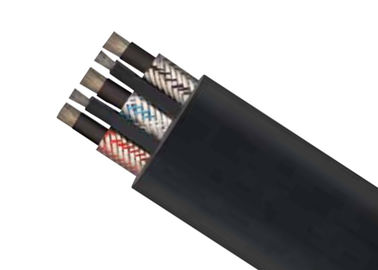

SHD Power, Flat Portable w/Ground, EPR/CPE 2000 Volts, 90˚C, Three Conductor power cable

Product Construction
Conductor:

2 AWG thru 3/0 AWG coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
Ethylene Propylene Rubber (EPR) insulation
Insulation Shield:
A flexible coated copper/textile braid shield is applied over a non-conducting overlapped tape

Grounding Conductors:
Coated copper, rope-lay-stranded per
ASTM B172
Two conductors, shaped and covered with an extruded semi-conducting shield
Jacket:
Reinforced, extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE)
Options:
Colored jackets are available jacket
Applications:
Designed for use as trailing cables on AC mining
equipment:
Where induced voltages in the grounding system will not produce a hazard
On low- and medium-voltage AC circuits where shielding is desired or required
Features:
Flexible insulation shield provides shock hazard
protection
Excellent heat, moisture, steam, oil, chemical and radiation resistance
Flexible for easy handling
Features (cont’d):

Resists cutting, impact, abrasion, flame and
sunlight
Excellent thermal stability and physical properties over a broad temperature range
Compliances:
ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
Meets flame test requirements and is accepted for listing by MSHA
Approved by the Pennsylvania Department of Environmental Protection
Packaging:
Material cut to length and shipped on nonreturnable reels

2 AWG THRU 3/0 AWG CONDUCTORS, THREE CONDUCTOR,
FLAT PORTABLE W/GROUND, TYPE SHD - 2000 VOLTS
