0.6/1kv 4 Core Cu Pvc Insulated Pvc Sheathed Cable XLPE Insulated 240 Sq Mm
Contact Person : Andrea
Phone Number : 0086-371-60547601
whatsapp : +8613598873045
| Minimum Order Quantity : | 1000meters | Packaging Details : | Drum |
|---|---|---|---|
| Delivery Time : | 15days after payment | Payment Terms : | L/C, T/T |
| Place of Origin: | Henan | Brand Name: | CN CABLE |
|---|---|---|---|
| Certification: | VDE | Model Number: | NYIFY / NYIF |
|
Detail Information |
|||
| Conductor: | Copper | Insulation: | PVC |
|---|---|---|---|
| NYIFY: | PVC Compound | NYIF: | Rubber Compound |
| IYYFI-J/O: | PVC-sheath | ||
| Highlight: | pvc insulated power cable,pvc jacket cable |
||
Product Description

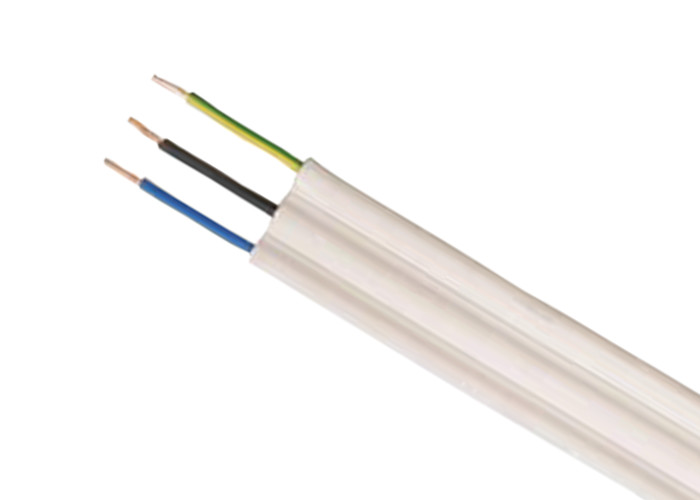

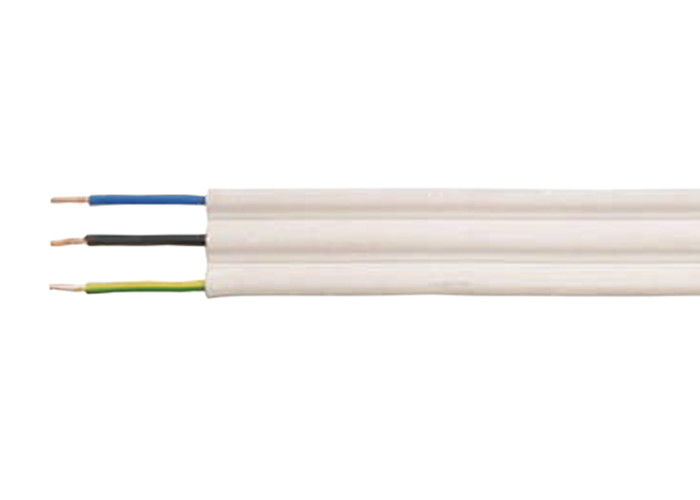

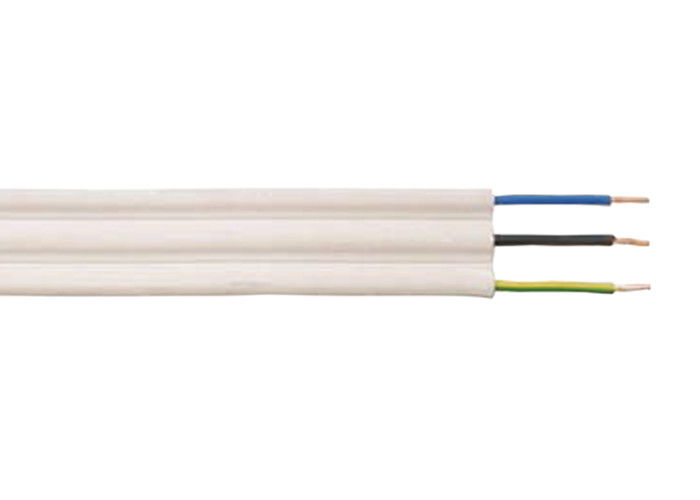

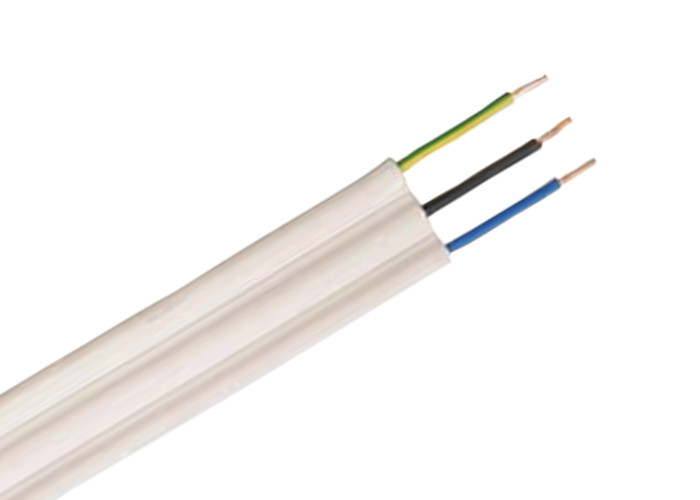

Copper conductor PVC insulation low voltage Flat webbed building wire NYIFY / NYIF
Application
For permanent installation in dry environment in and under plaster.
The product corresponds to the directive 2006/95/EG (low voltage directive).
Construction
Copper conductor: plain, solid, acc. to VED 0295
Insulation: PVC
Core identification: acc. to VDE 0293
Stranding: cores laying parallel next to each other
Outer sheath:
NYIFY: PVC compound YM1
NYIF: rubber compound
IYYFI-J/O: PVC-sheath
Technical data
Nominal voltage
NYIFY/NYIF: U0/U 230/400V
IYYFT-J/O: U0/U 300/500V
Test voltage: 2000V
Temperature range
Flexing 5℃~70℃
Fixed installation -30℃~70℃
Minimum bending radius
Fixed installation 15x cable diameter
| Section mm2 | Copper content kg/km | Section mm2 | Copper content kg/km |
| NYIFY-J | NYYFL-J | ||
| 3*1.5 | 43.0 | 3*1.5 | 43.0 |
| 4*1.5 | 58.0 | ||
| 5*1.5 | 72.0 | ||
| NYIF-J | |||
| 2*1.5 | 29.0 | 3*2.5 | 72.0 |
| 3*.15 | 43.0 | 4*2.5 | 96.0 |
| 5*2.5 | 120.0 | ||
| NYIF-J | IYYFL-O | ||
| 3*1.5 | 43.0 | 2*1.5 | 29.0 |
| 4*1.5 | 58.0 | ||
| 5*1.5 | 72.0 | 2*2.5 | 48.0 |
| 3*2.5 | 72.0 | ||
| 5*2.5 | 120.0 |
