300V Fire Resistant LSHF Pvc Insulated Flexible Cable

Minimum Order Quantity : 1000m Packaging Details : Coil,Pallet,Box,Drum
Delivery Time : 3-30 days Payment Terms : Western Union, L/C, T/T, MoneyGram
Supply Ability : 3000km per month
Place of Origin: Henan, China (Mainland) Brand Name: CN Cable Group
Certification: CE Model Number: Electric wire

Detail Information

Type: Low Voltage Application: Fixed Installations
Conductor: Cu Core Number: 1
Insulation: PVC Outer Characters: Flame Retardant, Fire Resistant, LSHF
Rated Voltage: 300/500V,450/750V Certificate: ISO9001/ISO14001 ,CE
Standard: IEC, BS, ICEA, CSA, NF, AS-NZS Colour: Black,grey,yellow/green/blue/brown/
High Light:

LSHF Pvc Insulated Flexible Cable


Fire Resistant PVC Insulated Cable


300V Pvc Insulated Flexible Cable

Product Description








Cable H05V-K/H07V-K is used for installations that require a flexible cable due to the complex nature of their layout ,for protected fixed installations inside appliances and in or on lighting fittings, such as for equipment wiring, distributors, cabinets and lighting pipes on and under plaster, however, only for signal circuit.



DIN VDE 0281-3
DIN EN 60228 Class 5 (construction)

Cable Construction

Conductor: Flexible copper wire , class 5

Insulation: PVC

Color available: Black/Brown/Blue/Green/Grey/Orange/Red/Yellow ,etc

Technical Characteristics:

Rated voltage: 300/500v (H05V-K)/ 450/750v (H07V-K)

Test voltage: 2000V(H05V-R)/2500V (H07V-R)

Flexing bending radius: 4 x D

Static bending radius:4 x D

Temperature range: -5℃ to +70℃

Short circuit temperature: 160 ℃

Flame retardant: IEC 60332.1


Conductor size Conductor mm PVC Insulation Thickness Overall Cable Dia. Weight
MM2 Single Wire dia. Dia. mm mm kg/km
0.5 Max.0.21 0.94 0.6 2.1 9
0.75 Max.0.21 1.14 0.6 2.3 12
1 Max.0.21 1.34 0.6 2.5 15
1.5 Max.0.26 1.60 0.7 3 21
2.5 Max.0.26 2.10 0.8 3.7 33
4 Max.0.31 2.61 0.8 4.2 48
6 Max.0.31 3.97 0.8 5.6 71
10 Max.0.41 5.30 1.0 7.3 124
16 Max.0.41 6.00 1.0 8 175
25 Max.0.41 7.70 1.2 10.1 270
35 Max.0.41 9.47 1.2 11.9 371
50 Max.0.41 11.13 1.4 13.9 527
70 Max.0.51 13.32 1.4 16.1 728
95 Max.0.51 16.04 1.6 19.2 966
120 Max.0.51 16.75 1.6 20 1203
150 Max.0.51 19.74 1.8 23.3 1507
185 Max.0.51 21.54 2.0 25.5 1842
240 Max.0.51 23.45 2.2 27.9 2405

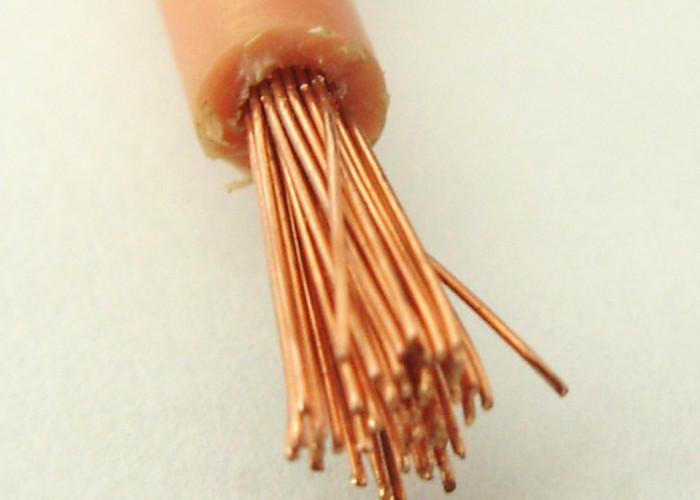

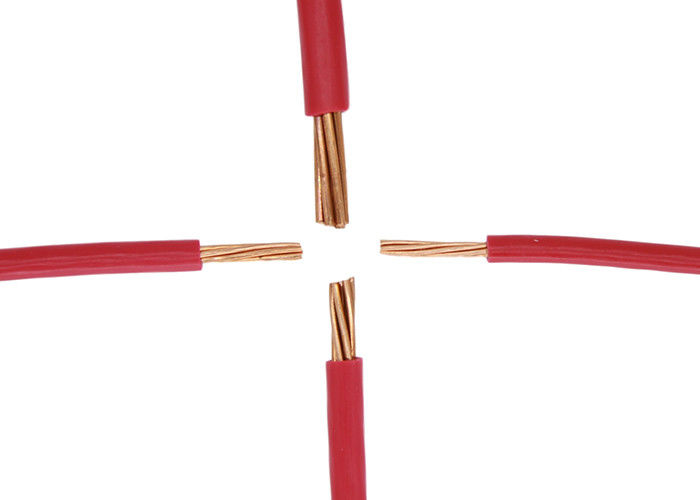

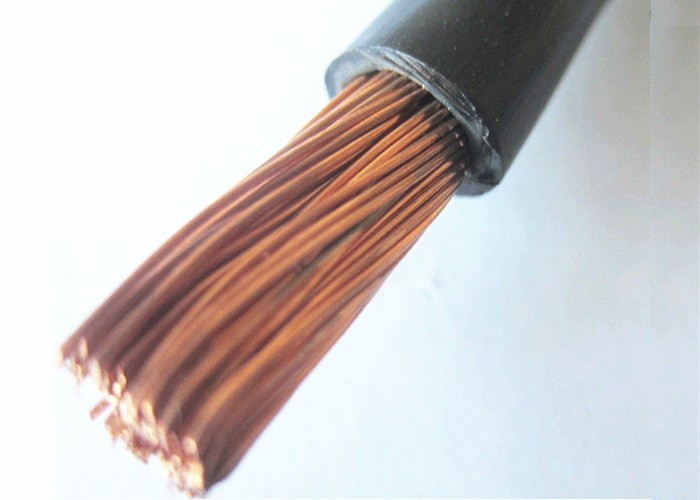

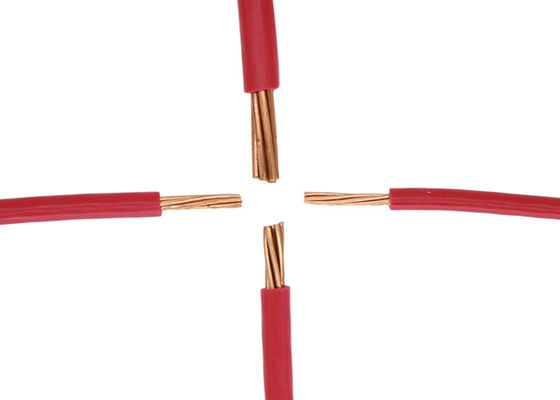

300V Fire Resistant LSHF Pvc Insulated Flexible Cable 0300V Fire Resistant LSHF Pvc Insulated Flexible Cable 1300V Fire Resistant LSHF Pvc Insulated Flexible Cable 2
Our Certificate
300V Fire Resistant LSHF Pvc Insulated Flexible Cable 3
Our Services


1.  Product consultation ,analysis, design, production

2.  Provide industry information, Product Training, Assist Product Marketing

3.  Provide project support such as tender assistant, cooperate visit customers,FAT support

4.  Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples

5.  OEM service

6.  Other services customized by clients





Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.


Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .


Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.

Looking forward to cooperating with you.
