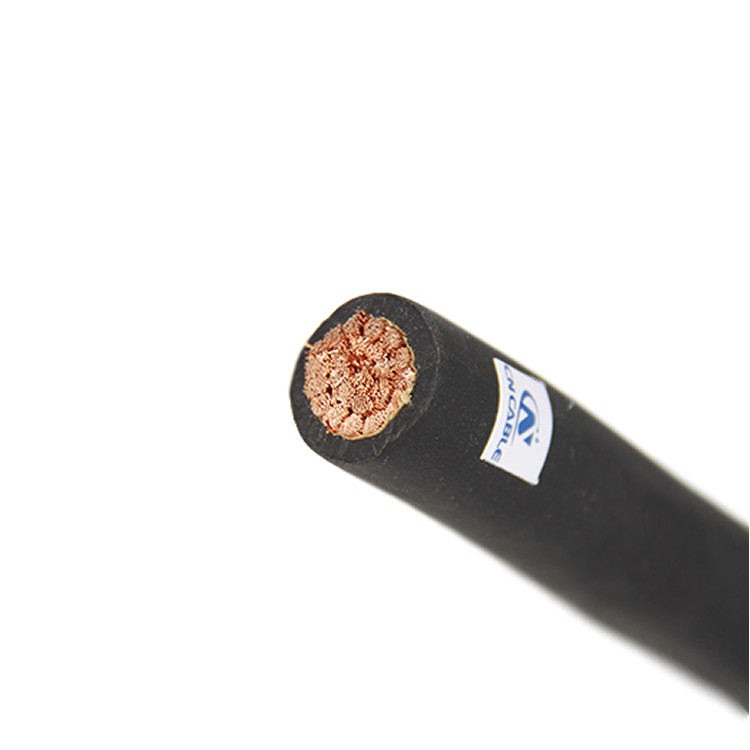

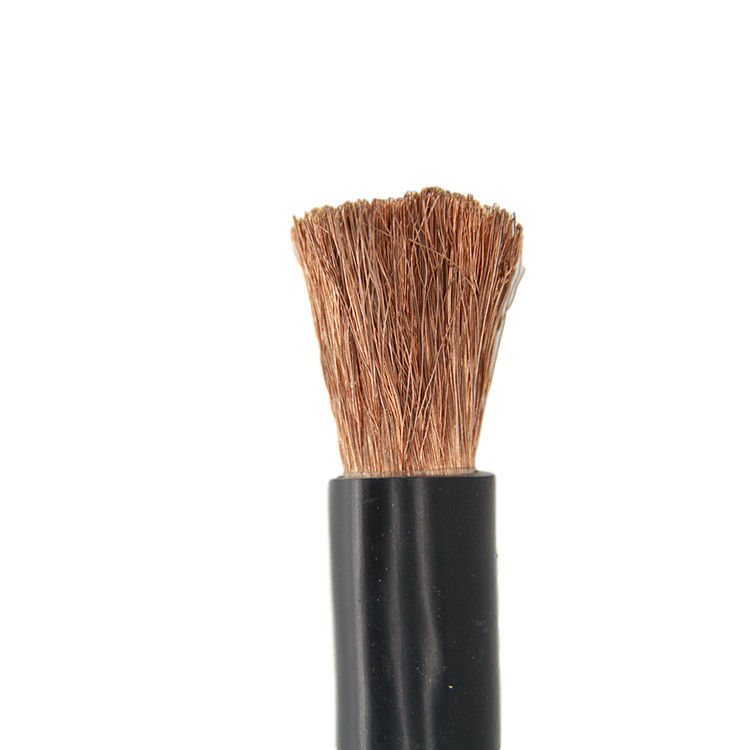

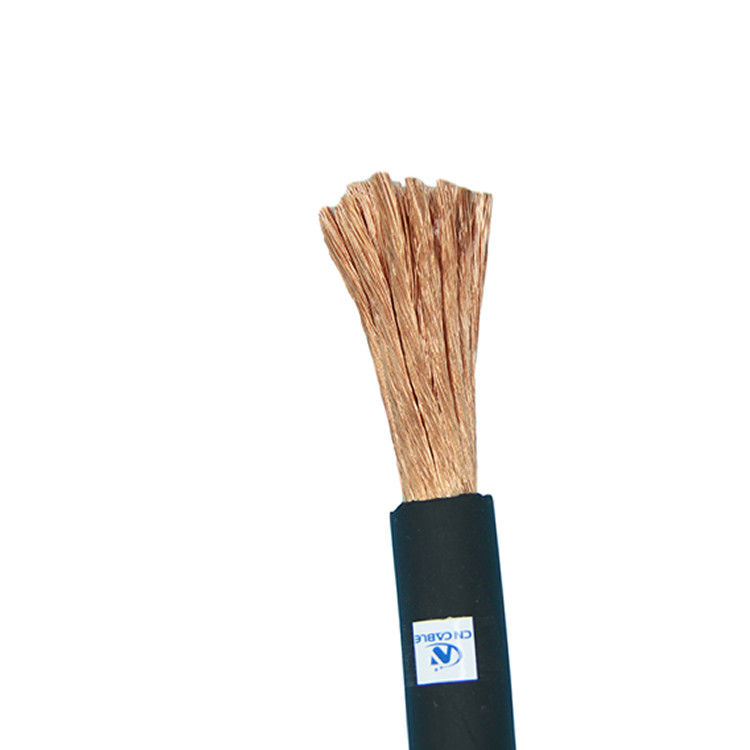

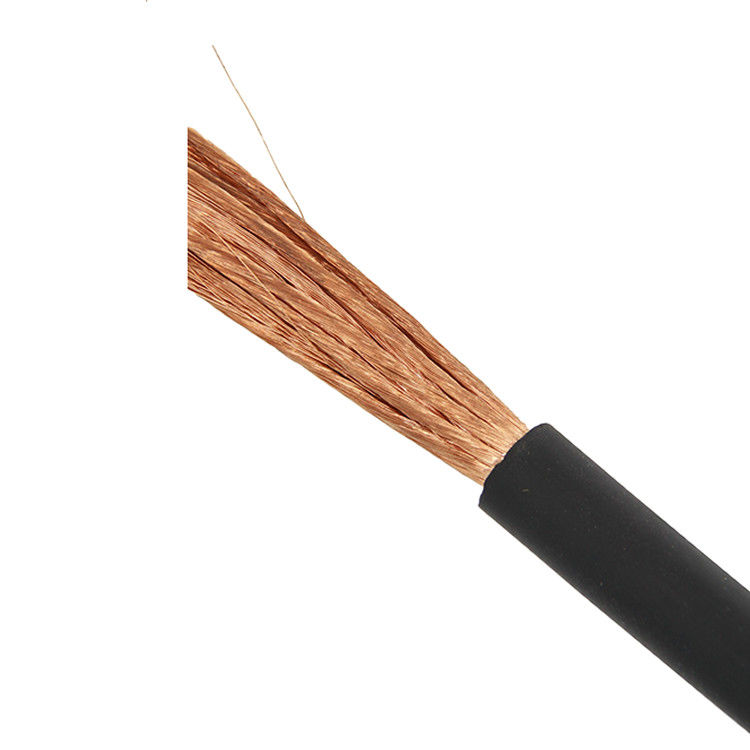

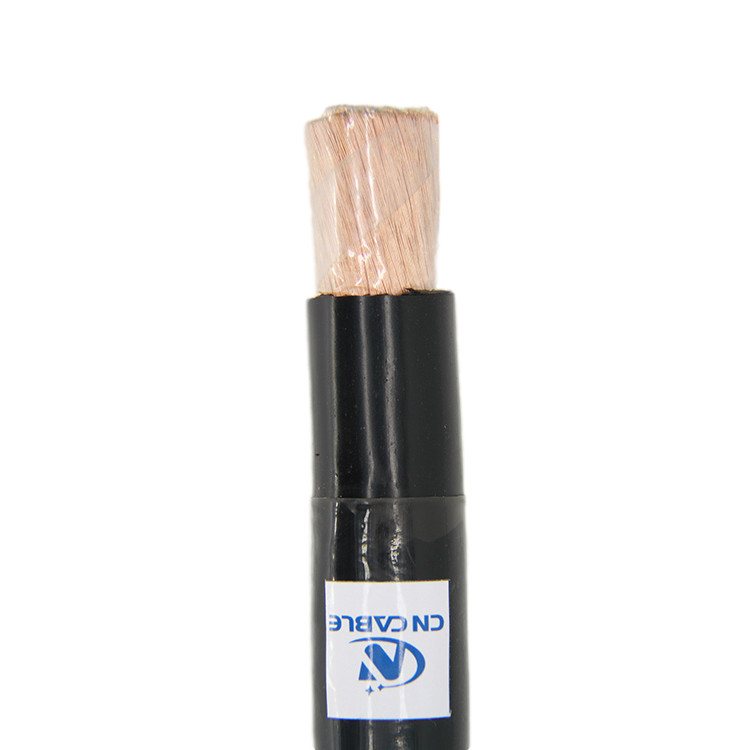

600V Flexible Copper Wire Battery PVC Insulated Cable

Minimum Order Quantity : 500meters Price : US $0.5-3.0 / Meters | 200 Meter/Meters (Min. Order)
Packaging Details : Coil,Pallet,Box,Drum Delivery Time : 1-4 weeks
Payment Terms : L/C, T/T Supply Ability : 3000km per month
Place of Origin: Henan, China (Mainland) Brand Name: CN Cable Group
Certification: CE Model Number: Battery Cable

Detail Information

Type: Battery Cable Application: Industries
Conductor: Cu Core Number: 1
Insulation: PVC Rated Voltage: 600/1000V
Certificate: ISO9001 Colour: Black Or Red Or According To Requirement
High Light:

Copper Wire PVC Insulated Cable


600V PVC Insulated Cable


0.8mm PVC Insulated Cable

Product Description

Top Quality 600V Flexible Copper Wire PVC Insulated Battery Cable



Applications of Battery Cables Battery cable is supplied to a number of industries and can be used in a variety of applications. Battery cables are the ideal solution for situations in which a simple connection between a battery and a starter is needed.
If you just need a simple connection between a battery and its starter, battery cable is the ideal solution. For applications with no sharp curves or those that have a direct shot to the power source, battery cable is the most efficient option.



Cable Construction

Conductor: Flexible copper wire ,class5 as per IEC60228
Material of insulation: PVC
Nominal thickness of insulation: 0.8mm
Colour of insulation: Black or Red or according to requirement





No. Description Unit Data Data
1 Voltage V 600 600
2 Area mm2 4 6
3 Conductor
  Magterial - Flexible copper wire ,class5 as per IEC60228 Flexible copper wire ,class5 as per IEC60228
  Approx. Dia. of conductor mm 2.6 3.9
4 Insulation
  Material of insulation -- PVC PVC
  Nominal thickness mm 0.8 0.8
  Colour of insulation -- Black or Red or according to requirement Black or Red or according to requirement
5 Approx. Overall Dia. of cable mm 4.2 5.6
6 Approx. Weight Kg/km 45 70
7 Max. DC Resistance @ 20 ℃ Ω/km 4.95 3.3
8 Current rating A 37 47
9 Operation temberature 70 70



600V Flexible Copper Wire Battery PVC Insulated Cable 0600V Flexible Copper Wire Battery PVC Insulated Cable 1600V Flexible Copper Wire Battery PVC Insulated Cable 2
Our Certificate
600V Flexible Copper Wire Battery PVC Insulated Cable 3
Our Services


1.  Product consultation ,analysis, design, production

2.  Provide industry information, Product Training, Assist Product Marketing

3.  Provide project support such as tender assistant, cooperate visit customers,FAT support

4.  Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples

5.  OEM service

6.  Other services customized by clients





Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.


Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .


Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.
