TM2 Sheath Low Voltage Multi Core Pvc Insulated Cable

Minimum Order Quantity : 1000m Packaging Details : Coil,Pallet,Box,Drum
Delivery Time : 3-30 days Payment Terms : Western Union, L/C, T/T, MoneyGram
Supply Ability : 3000km per month
Place of Origin: Henan, China (Mainland) Brand Name: CN Cable Group
Certification: CE Model Number: Electric wire

Detail Information

Type: Low Voltage Application: Fixed Installations
Conductor: Cu Core Number: 1
Insulation: PVC Sheath: PVC
Outer Characters: Flame Retardant, Fire Resistant, LSHF Rated Voltage: 300/500V,450/750V
Certificate: ISO9001/ISO14001 ,CE Standard: IEC, BS, ICEA, CSA, NF, AS-NZS
Colour: Black,grey,yellow/green/blue/brown/
High Light:

Multi Core Pvc Insulated Cable

,

TM2 Sheath Pvc Insulated Cable

,

Mechanical Pvc Insulated Cable

Product Description

PVC INSULATED CABLE MULTI-CORE CABLE H03VV-F/H03VVH2-F

H03VV-F / H03VVH2-F CABLE



Application

H03VV-F cable is widely used in dry locations for connections of portable electrical appliances submitted to weak mechanical strength, like radio sets and lighting fittings, but not for heating devices , not allowed to use the outdoor or industrial field.



Standard

DIN VDE 0281-3
DIN EN 60228 Class 5 (construction)



Cable Construction

Conductor: Flexible copper wire , class 5

Insulation: PVC

Sheath: PVC, TM2

Core colour code according to HD 308 S2

Jacket colour: Black , White ,Grey or others as per requirements



Technical Characteristics:

Rated voltage: 300/300V

Temperature Rating: +5°C to +70°C.

Short circuit temperature: 150°C

Minimum Bending Radius: 8 times of overall diameter



Parameter

Core No. Conductor Size Conductor PVC Insulation Thickness PVC Sheath Thickness Approx. Cable Dia. Approx. Cable Weight
Single wire dia. Overall Dia.(Approx.)
-- mm2 mm mm mm mm mm kg/km
2 0.5 0.2 0.94 0.6 0.7 5.7 38
3 0.5 0.2 0.94 0.6 0.7 6.1 48
4 0.5 0.2 0.94 0.6 0.8 6.8 62
5 0.5 0.2 0.94 0.6 0.8 7.4 73
2 0.75 0.2 1.14 0.6 0.8 6.3 48
3 0.75 0.2 1.14 0.6 0.8 6.7 60
4 0.75 0.2 1.14 0.6 0.8 7.3 76
5 0.75 0.2 1.14 0.6 0.9 8.2 94
2 1 0.2 1.34 0.6 0.8 6.7 56
3 1 0.2 1.34 0.6 0.8 7.1 72
4 1 0.2 1.34 0.6 0.9 8.0 93
5 1 0.2 1.34 0.6 0.9 8.7 111

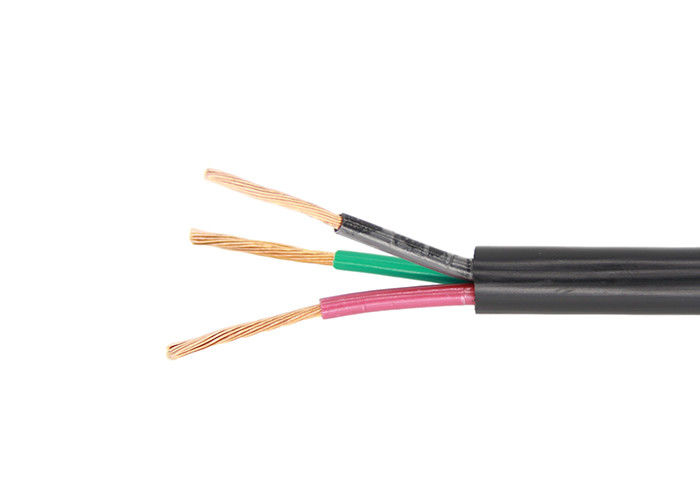

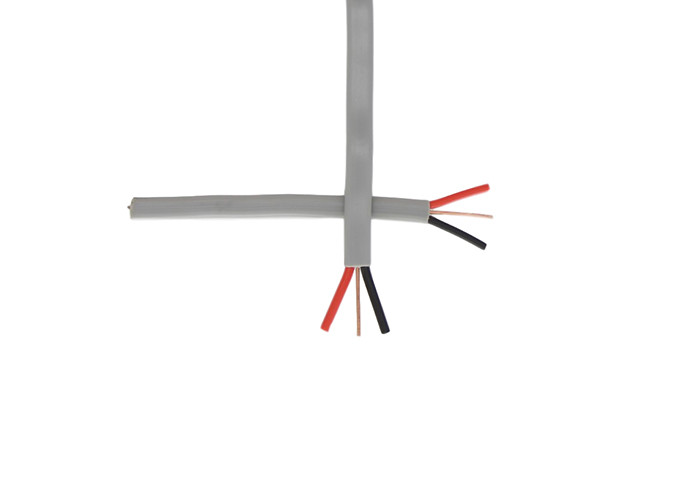

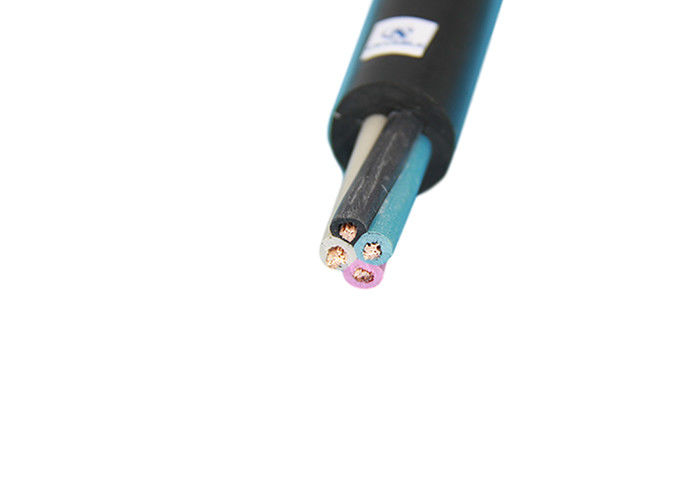

TM2 Sheath Low Voltage Multi Core Pvc Insulated Cable 0TM2 Sheath Low Voltage Multi Core Pvc Insulated Cable 1TM2 Sheath Low Voltage Multi Core Pvc Insulated Cable 2

Our Certificate

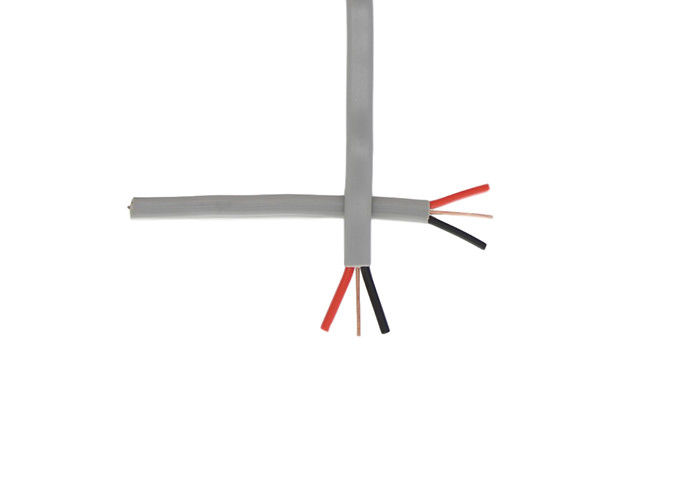

TM2 Sheath Low Voltage Multi Core Pvc Insulated Cable 3
