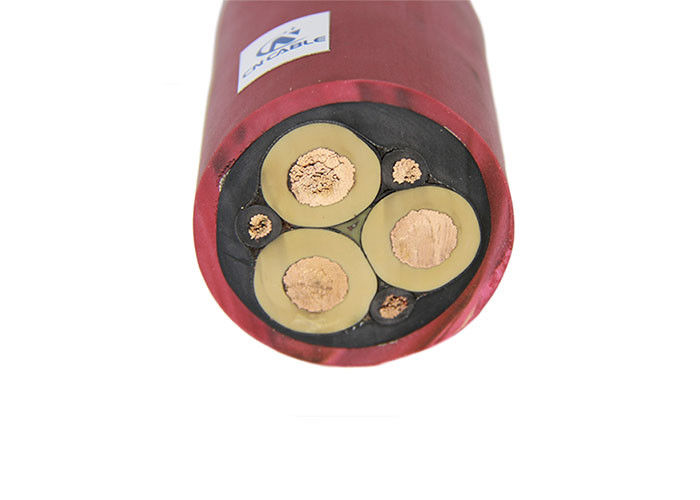

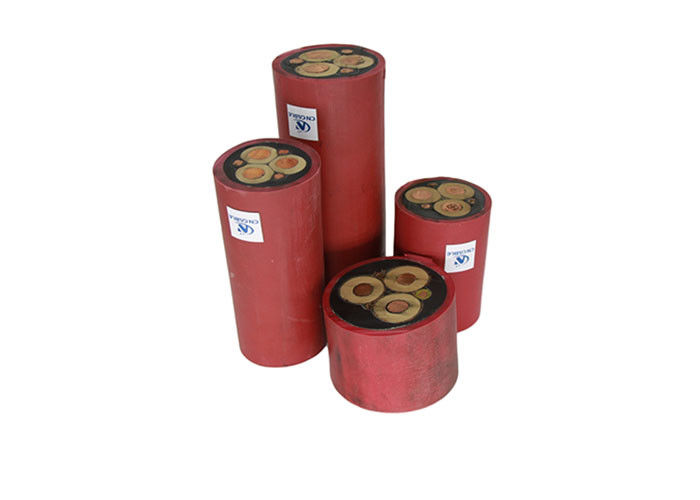

15KV 133% TS Copper Special Cables Armor X Cable XLPE Insulation
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
Detail Information |
|||
Conductors:: | Soft Or Annealed Tinned Coated Copper | Ground Conductor: | Tinned Copper |
---|---|---|---|
Insulation: | EPR | Jacket: | CPE |
Color: | Ted | Voltage: | 8.7/15KV |
High Light: | CPE Jacket EPR Insulated Cable,15KV EPR Insulated Cable,Flexible UGEFP Copper Mining Cable |
Product Description
Application:
This product is suitable for high-voltage rubber sheathed soft rubber with ethylene propylene rubber insulated neoprene sheath for heavy equipment with a rated voltage of 8.7 / 15kV and below.
Construction:

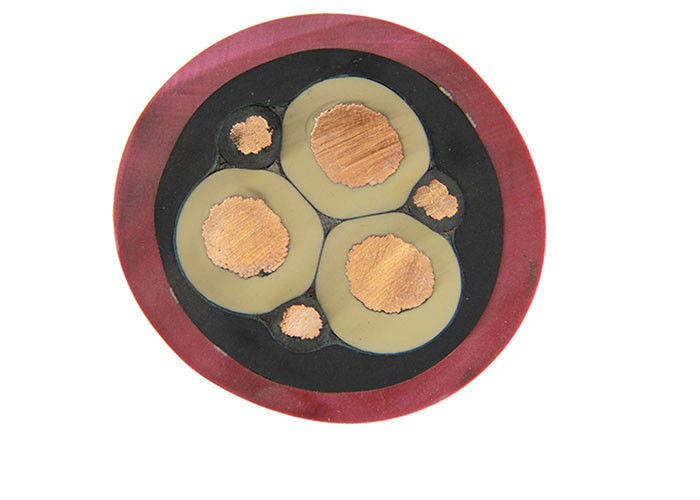

Description | Material | Dimension |
Phase core | Tinned flexible Cu Wire, Class5 | ≤0.41mm |
Cross sectional area | 70mm² | |
Core color | natural colour with black semiconductive layer | / |
Max. D.C. Resistance at 20 ℃ | / | 0.277Ω/km |
Conductor Screen | Semi-conducting compound | 0.4mm |
Insulation | EPR, rubber compound | 5.5mm |
Insulation screen | Semi-conducting Tape | 0.4mm |
Earth(Netrual) Core | Tinned flexible Cu Wire | ≤0.41 |
Earth Core Numbers | 3 | 16mm² |
Insulation | Semi-conducting compound | 2.0mm |
Filler Material(if any) | Rubber based compound | |
Inner sheath | Black Rubber compound | 2.8mm |
Antitwisting protection: | Textile braid of synthetic yarns between inner and outer sheath | / |
Outer sheath | Red CPE | 4.5mm |
Overall diameter (approx.) | / | 68mm |
Weight per km (approx.) | / | 7400kg |
Technical parameter:
Cores×Nor. Cross-sectional area mm2 |
Approx. overall diameter mm |
kg/km Approx. weight kg/km |
20℃ Phase Core Insulation Resistance ≥MΩ?km |
3×16+1×16 | 58.5-63.5 | 4648 | 610 |
3×25+3×10 | 56.2-61.2 | 5168 | 550 |
3×35+3×10 | 59.2-64.2 | 5861 | 500 |
3×50+3×16 | 63.1-68.1 | 7166 | 440 |
3×70+3×16 | 69.5-74.5 | 8771 | 390 |
3×95+3×16 | 74.0-79.0 | 10126 | 350 |
3×120+3×25 | 79.0-84.0 | 11827 | 330 |
3×150+3×25 | 83.3-88.3 | 13554 | 300 |
3×185+3×35 | 87.6-93.6 | 15489 | 280 |
Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum
Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port
CN Cable Group is specialized in development, design, production, sales, installation and technology service of wires & cables and accessories. We have strong manufacturing capacity and rich export experience for more than 15 years. The main products of the company include: Power cables up to 500KV, bare conductors (AAC/AAAC/ ACSR/ACAR/Galvanized steel wires, etc.), ABC cables, Electric wires and Electric equipment cables, Rubber cables, Special cables, cable accessories, etc.
