600V G/PG Flexible Rubber Insulated Mining Vfd Drive Cable

Application

VFD cable is mainly used for connecting the cable between the variable frequency power supply and the variable frequency motor, as well as the transmission and distribution lines with a rated voltage of 1 KV and below, for transmission of electrical energy. Especially suitable for papermaking, metallurgy, metal processing, mining, railway and food processing industries.

Construction

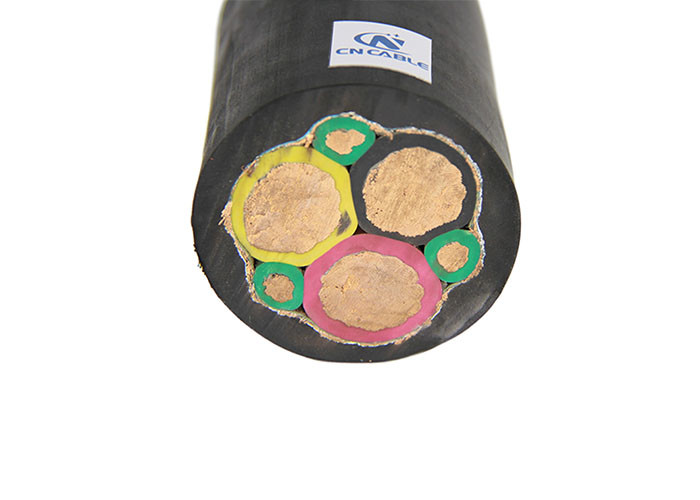

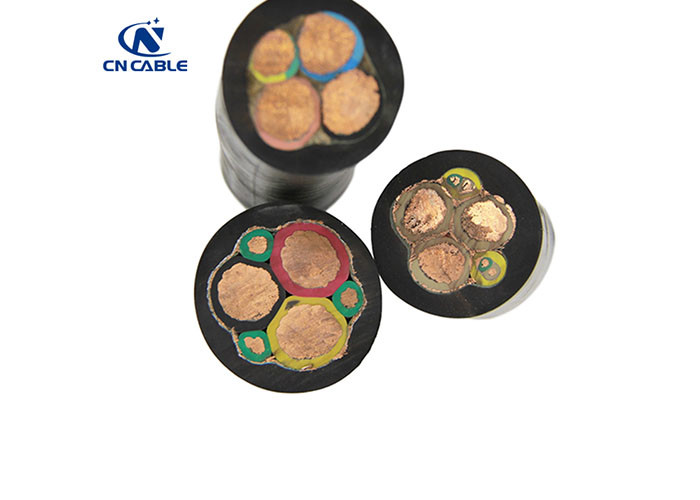

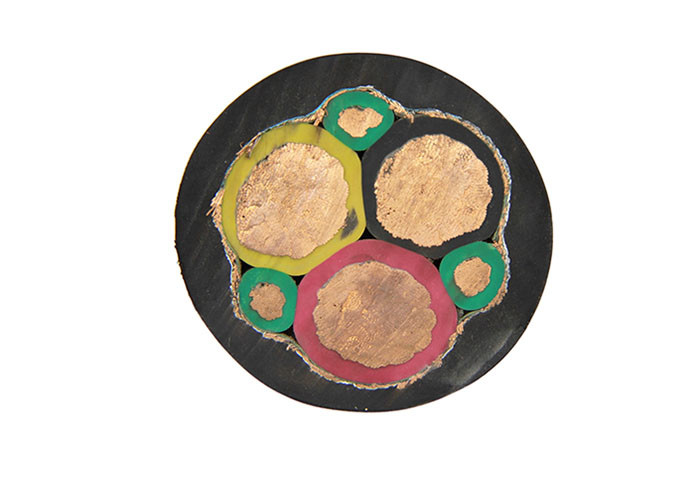

The structure includes three main core insulated and three earth core insulated . Outside includes wrapping layer , copper wire braided shielding layer, outer sheath. 3+3 core structure makes the cable has a strong voltage shock resistance, can withstand the pulse voltage of high frequency and frequent frequency conversion, play a good protection role for the frequency conversion appliance.

Features

1.Rated voltage 0.6/1KV

2. Conductor max. operating temperature is90℃ for long time,max.temperature is 250℃ for a short circuit.

3. Installation temperature not less than 0℃

4. The min. allowable bending radius is not less than 15D

Why is CN CABLE?
1. Factory price
2. Customized cable
3. Quality assurance
4. Project experience

Technical parameter

Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum

Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port
