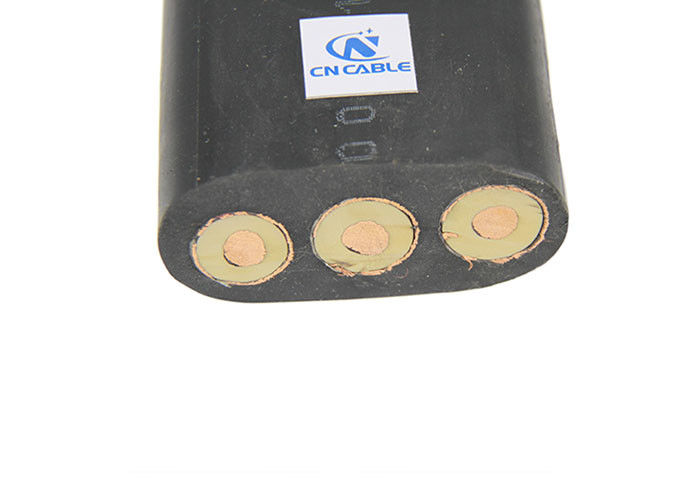

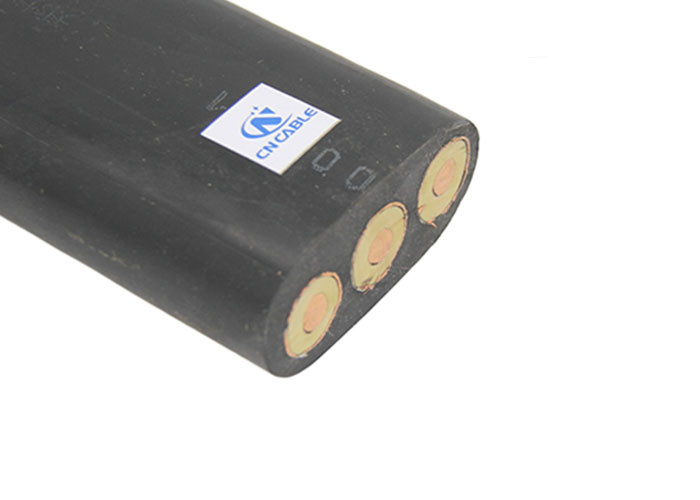

Flat Mining 6KV 10KV EPR Annealed Tinned Copper Cable

Minimum Order Quantity : 500meters Packaging Details : Iron-wooden drum
Delivery Time : 30days after payment Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE Model Number: Flat mining cable

Detail Information

Conductors:: Annealed Tinned Copper Screen: Tinned Copper Wire
Insulation: EPR Rubber Insulated Sheath: Rubber
Voltage: 6/10kv
High Light:

EPR Annealed Tinned Copper Cable

,

10KV Annealed Tinned Copper Cable

,

Flat Mining EPR Annealed Cable

Product Description

GKFB SHD/W 6KV 10KV EPR Insulated CR CPE Sheathed Flexible Mining Flat Trailing Cable





Product Description



Application

Applicable for connection of movable distribution devices and hoisting machineries

with rated voltage 6KV and 10KV.

The cable is suitable for heavy equipment such as port bucket turbines, port container cranes, port single-arm gantry cranes, port gantry cranes and other heavy equipment as power transmission lines, as well as various mobile devices.



Characteristics

The long-term allowable working temperature of the core is 85℃.

The maximum rated temperature of the cable conductor is 90℃.

When short-circuit (the longest duration does not exceed 5 seconds) the maximum temperature of the cable conductor does not exceed 250 ℃.

Allowable minimum ambient temperature for cables: UGEFP type: -15°C; UGEFHP type: -33°C.

The minimum allowable bending radius of the cable: 6D when used to fix equipment; 10D when connected in a freely movable manner; 12D when retracted with a cable reel; 15D when using a steering wheel (where D is the cable diameter).



Advantage
1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales

We can produce according to the required standard.



Technical parameter

Model

Cores×Nor.
Cross-sectional
area

(mm2)

Conductor structure Approx. overall
diameter(mm)

20℃ Phase Core Insulation Resistance

≤ (Ω/km)

kg/km
Approx. weight(kg/km)
Copper core Tinned copper core
GKFB-10KV 3×16+3×16/3 126/0.04 (70-75)×(31-33) 1.21 1.24 3700
3×25+3×16/3 196/0.40 (76-81)×(33-35) 0.78 0.795 4300
3×35+3×16/3 276/0.40 (79-84)×(34-36) 0.554 0.565 4800
GKFB-6KV 3×16+3×16/3 126/0.04 (62-64)×(27-28) 1.21 1.24 2815
3×25+3×16/3 196/0.40 (66-69)×(29-31) 0.78 0.795 4100
3×35+3×16/3 276/0.40 (70-73)×(30-33) 0.554 0.565 4750
3×50+3×16/3 396/0.40 (76-79)×(32-35) 0.386 0.393 6300
3×70+3×25/3 360/0.50 (82-85)×(34-37) 0.272 0.277 7380
3×95+3×35/3 475/0.50 (88-92)×(36-39) 0.206 0.21 7800
3×120+3×35/3 608/0.50 (96.5-100)×(39-41) 0.161 0.164 9500

mining cable 06.jpg

Packaging & Shipping

Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum

Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port
