Oil Resistance Mining NSSHOEU-O/J 0.6KV EPR Rubber Cable

Contact Now

Oil Resistance Mining NSSHOEU-O/J 0.6KV EPR Rubber Cable

Minimum Order Quantity :	500meters	Packaging Details :	Iron-wooden drum
Delivery Time :	30days after payment	Payment Terms :	L/C, T/T

Place of Origin:	Henan	Brand Name:	CN CABLE
Certification:	CE	Model Number:	VDE Cable

Detail Information
Conductors::	Tinned Copper	Insulation:	EPR Rubber
Outer Sheath:	CPE Rubber	Voltage:	0.6/1kV
Inner Sheath:	SR/SBR/PCP/CR
High Light:	NSSHOEU-O/J , 0.6KV EPR Rubber Cable , Oil Resistance EPR Rubber Cable

Product Description

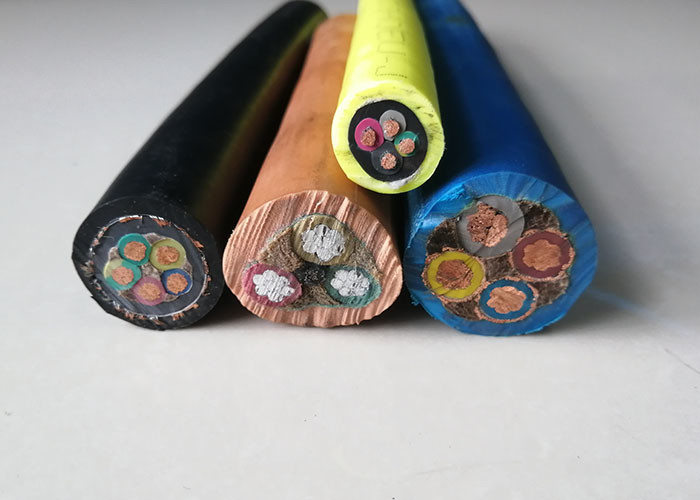

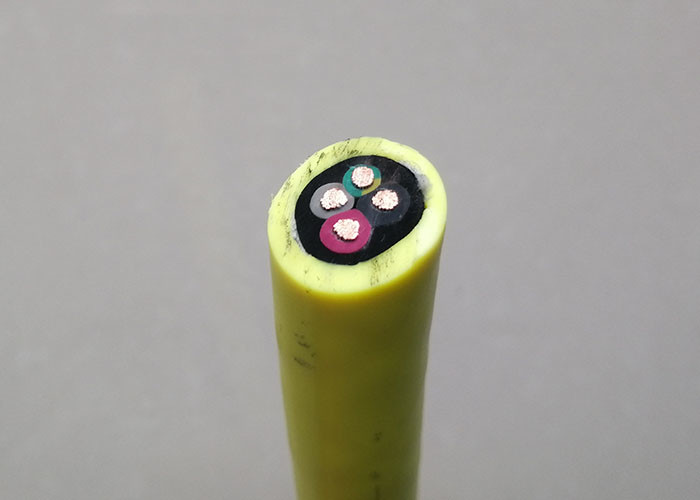

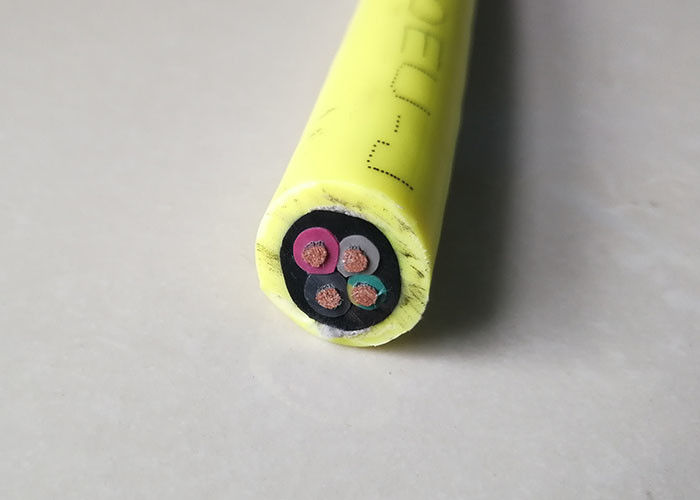

NSSHOEU-O/J 0.6/1kV VDE Heavy Duty Flexible Rubber Mining Cable

Product Description

Application

The cable is used for the connection of mobile mechanical equipment with high mechanical load. It can be used in dry and humid environments, outdoors and in areas with explosion hazards, and is especially suitable for coal mines, quarries and construction sites.

Standard

VDE 0250 Part 812

Features

Heat resistance, abrasion resistance, tear resistance, oil resistance, flame retardant.

Bending radius: 7* outer diameter of cable

Operating temperature range: fixed installation -45℃ to +70℃, mobile installation -35℃ to +70℃.

Technical parameter

NSSHOEU-O

Nominal Cross-sectional Area	Min. Outer Diameter	Max. Outer Diameter	Approx. Weight
NO. ×MM²	MM	MM	KG/KM
1×16	11	13.0.5.0	260
1×25	13	16	390
1×35	14	17	500
1×50	16	19	680
1×70	18	21	900
1×95	20	24	1150
1×120	23	27	1440
1×150	24	28	1750
1×185	28	31	2300
1×240	32	36	3000
2×1.5	11	14	210
3×2.5	13	16	300

NSSHOEU-J

Nominal Cross-sectional Area	Min. Outer Diameter	Max. Outer Diameter	Approx. Weight
NO. ×MM²	MM	MM	KG/KM
3×1.5	12	15	240
3×70/35	46	51	4450
3×95/50	54	59	5870
3×120/70	59	64	7340
4×1.5	13	16	280
4×2.5	15	18	400
4×4	17	20	510
4×6	18	21	630
4×10	22	26	950
4×16	28	32	1430
4×25	33	37	2100
4×35	36	40	2650
4×50	42	47	3660
5×1.5	13	16	320
5×2.5	16	19	470
5×4	18	21	600
5×6	20	24	780
5×10	24	28	1130
5×16	29	34	1720
5×25	35	39	2470
6×2.5	13	16	300
7×1.5	16	19	470
7×2.5	18	21	600
10×1.5	19	22	570
10×2.5	21	25	790
12×2.5	22	26	860
18×2.5	28	32	1240

mining cable 12.jpg


Related Cables


H07RN-F Cable	6/10KV Flat Trailing Cable	Cable For Coal Mining Machine

Rubber Mining VFD Cables	Rubber Mining Cable	Cables For Cranes

Packaging & Shipping

Oil Resistance Mining NSSHOEU-O/J 0.6KV EPR Rubber Cable 10

Oil Resistance Mining NSSHOEU-O/J 0.6KV EPR Rubber Cable 11
