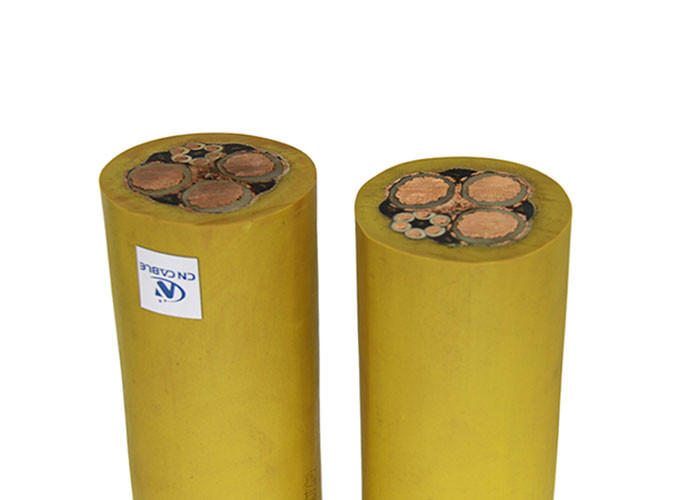

Yellow 5GM5 Rubber Compound 0.6/1kv Nsshoeu - J Cable

• Application

For flexible use and fixed installation in mine, in quarries, on construction sites and similar applications. It can bear heavy mechanical stresses, while it has good properties of flame retardant, oils and fats resistance, abrasion, cut, tear resistant.

They can be used permanently in waste water up to 40°C at a depth of max. 2000 m and in fresh water, salt water, industrial water, rainwater, oily water and sewage contaminated water.

The cables are suitable for indoor and outdoor applications.

• Reference Standard

VDE 0250-812

• Cable characters

1. Maximum submersing depth 2000 meters
2. OIL RESISTANT, UV RESISTANT,OZONE RESISTANT, FLAME RETARDANT
3. Rated voltage 0.6/1 kV (600/1000V)
4. Max. permissible operating voltage AC 0.7/1.2 kV
5. Max. permissible operating voltage DC 0.9/1.8 kV
6. AC test voltage - main cores 3 kV (5 Min.)
7. Max. tensile load on the conductor 15 N/mm²
8. Working temperature fixed ≥80℃
9. Min. bending radius ≤ 4 x Cable overall diameter

• Cable structure:

1. Conductor: Flexible tinned copper wire , (class 5)
2. Insulation: EPR, Compound type: 3GI3
3. Inner sheath: Rubber compound, Basic material: EPR, Compound type: GM1B
4. Outer sheath: Rubber compound, type 5GM5
5. Core identification: Colored in gray, black, brown, blue, green/yellow up to 5 cores, light gray with black digits for more than 5 cores
6. Outer sheath Color: Yellow
