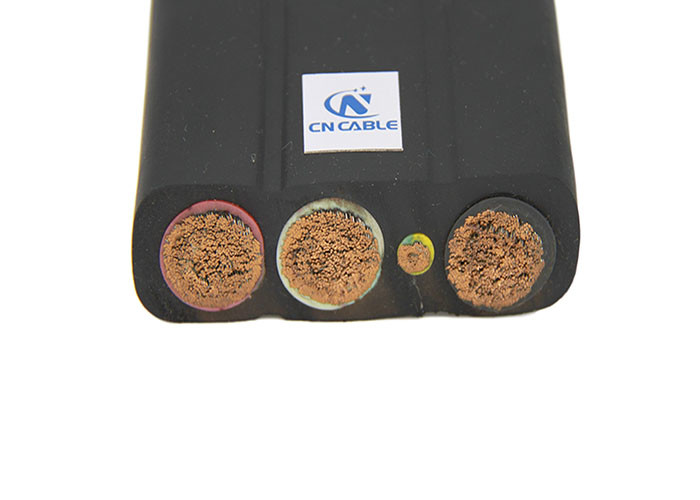

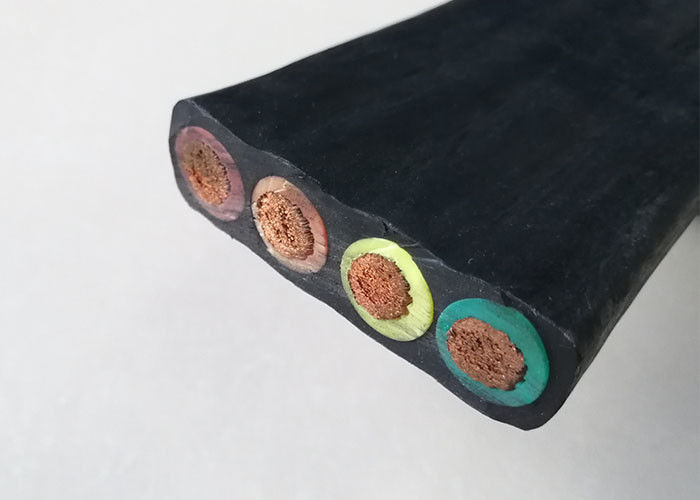

Annealed PVC Sheath 600V Submersible Pump Cables

SUBMERSIBLE PUMPS CABLES

•CONSTRUCTION

1. Conductor:Tinned Annealed Copper Conductor or Bare Copper Conductor ( Class 5)

2. Insulation: Crosslinked Elastomeric Insulating Compounds (Ethylene Propylene Rubber- EPR)

3. Sheath: Crosslinked Elastomeric Sheathing Compounds

•Insulated Core Identification

1 Core: Blue; 2 Cores: Blue and Brown; 3Cores: Blue, Brown and Green/Yellow;

4 Cores: Brown, Black, Grey and Green/Yellow; 5 Cores: Blue, Brown, Black, Grey and Green/Yellow

•Sheath Color: Black or Blue or other required

•Cable Shape: Circular or Flat

•Other Properties

Rated Voltage: up to 600/1000V

Max. Working Temperature: 90℃

Max. Short Circuit Temperature: 250℃
