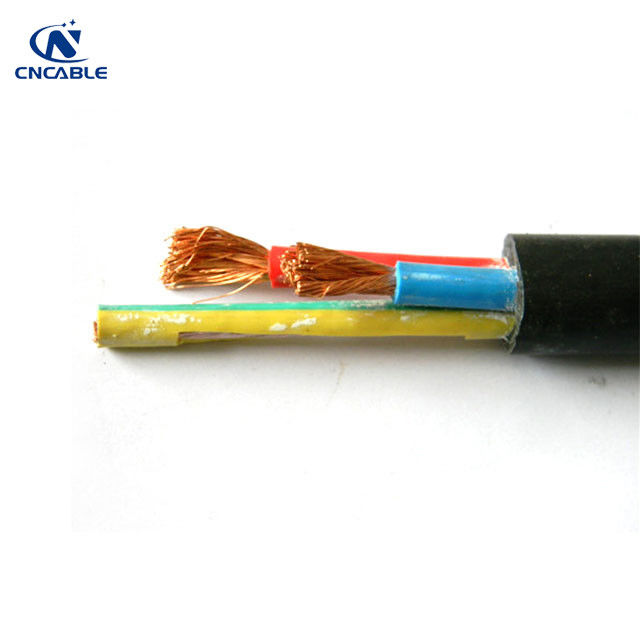

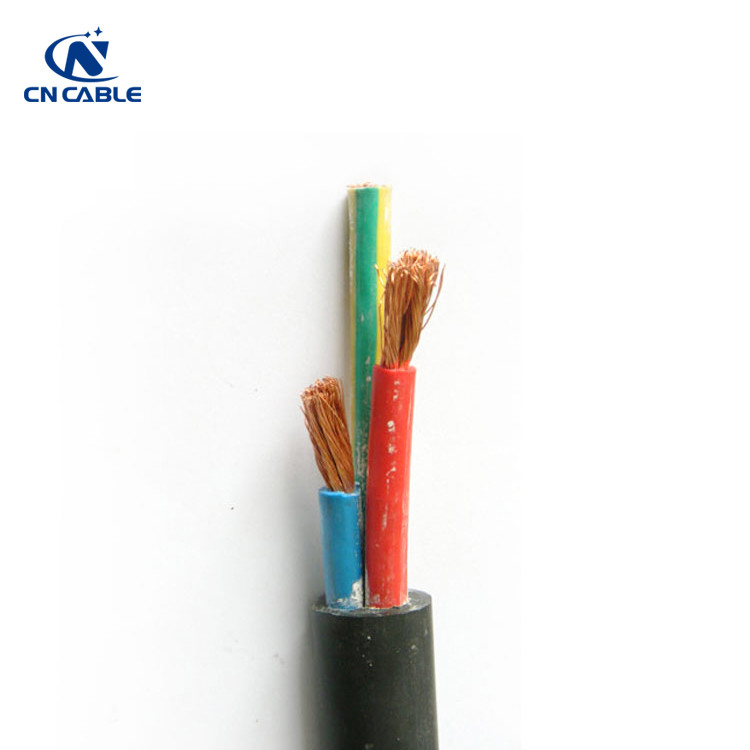

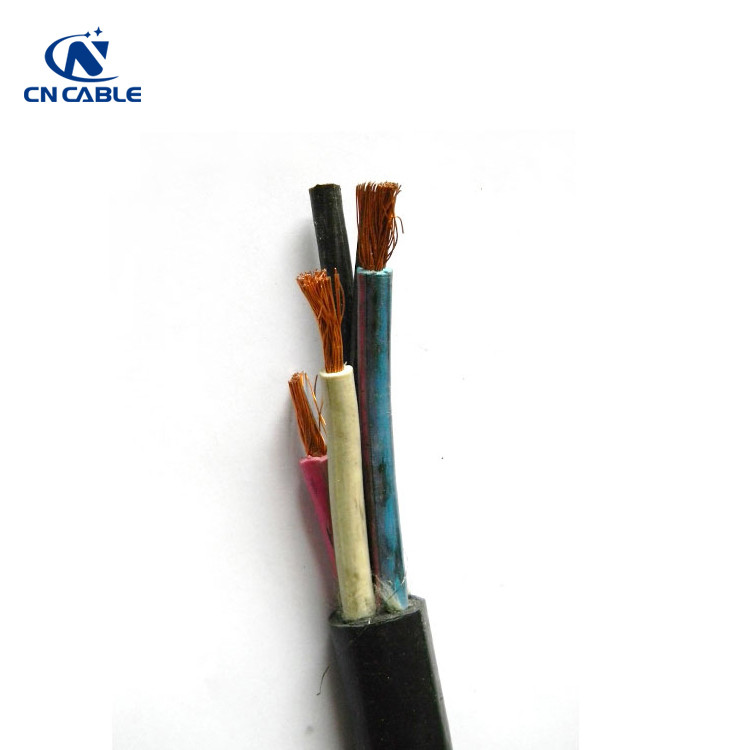

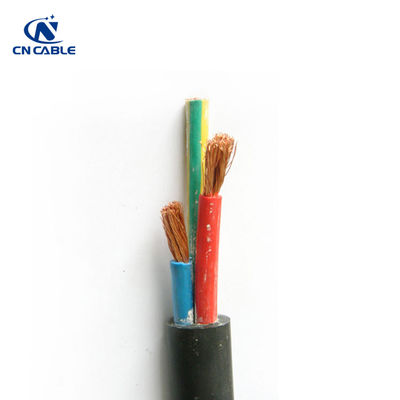

Black EPR Rubber Insulated CSP Sheathed Electric Cable

Minimum Order Quantity : 200meters Packaging Details : Iron-wooden drum
Delivery Time : 1-4 weeks Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE Model Number: H05BN4-F

Detail Information

Conductors:: Bare Copper Conductor Insulation: EPR Rubber
Outer Jacket: CSP Voltage: 600V
Color: Black Type: Low Voltage
High Light:

CSP Sheathed Electric Cable


EPR Rubber Insulated Electric Cable


600V Electric Cable

Product Description

Multi Cores EPR Rubber Insulated CSP Sheathed H05BN4-F Electric Cables

Product Description



These EPR (ethylen-propylen rubber) insulated and CSP (chlorosulphonated polyethylene rubber or similar) sheathed electric cables can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under weak mechanical stress, for example for power supply to small appliances in industrial plants, machine shops, heating plates, portable lamps, farming equipment etc. The electric cables are also suitable for caravans and camping equipment... The electric cables maximum conductor temperature in normal use: 90°C. While high temperature use, skin contact must be avoided.



CEI 20-19/12
CEI 20-35 (EN 60332-1)
VDE 0282 Part-12

IEC 60245-4

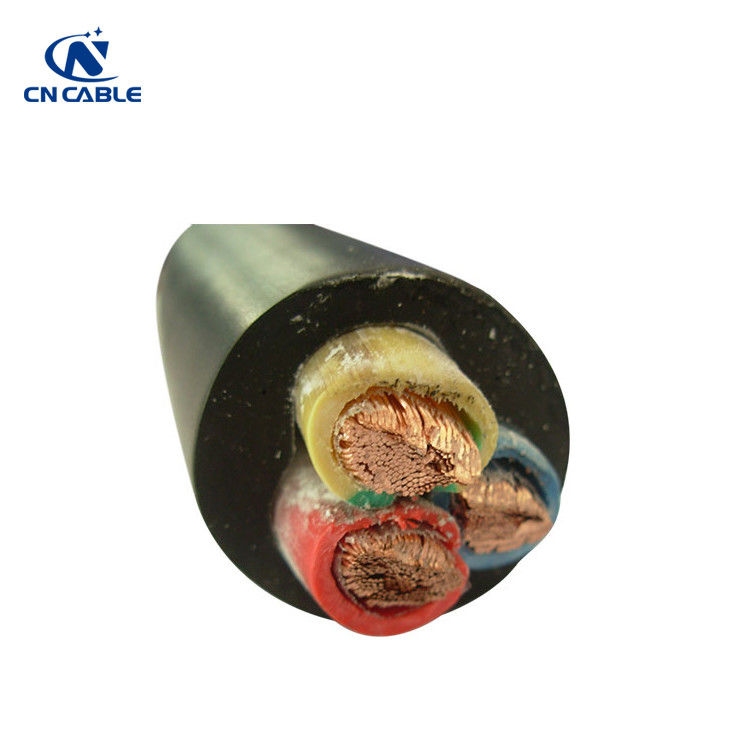

Cable Construction

GSP outer jacket
Green/Yellow wire
Bare copper conductor
EPR insulation


Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
EPR(Ethylene Propylene Rubber) rubber EI7 insulation
Color code VDE-0293-308
CSP(Chlorosulphonated Polyethylene) outer jacket EM7


Technical Characteristics
Working voltage: 300/500 volts
Test voltage: 2000 volts
Flexing bending radius: 6.0 x O
Fixed bending radius: 4.0 x O
Temperature Range: -20 oC to +90 oC
Maximum Short Circuit Temperature: +250 oC
Flame retardant:IEC 60332.1
Insulation resistance: 20 MΩ x km


Technical parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
# x mm^2 mm mm mm kg/km kg/km
18(24/32) 2 x 0.75 0.6 0.8 6.1 29 54
18(24/32) 3 x 0.75 0.6 0.9 6.7 43 68
18(24/32) 4 x 0.75 0.6 0.9 7.3 58 82
18(24/32) 5 x 0.75 0.6 1.0 8.1 72 108
17(32/32) 2 x 1 0.6 0.9 6.6 19 65
17(32/32) 3 x 1 0.6 0.9 7.0 29 78
17(32/32) 4 x 1 0.6 0.9 7.6 38 95
17(32/32) 5 x 1 0.6 1.0 8.5 51 125

miming cable 09.jpg




Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.


Q3: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
