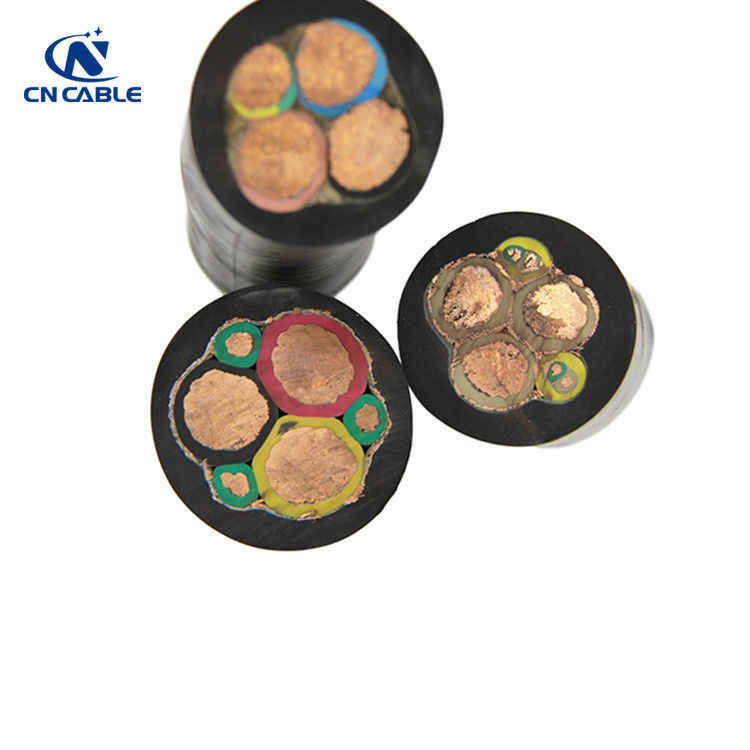

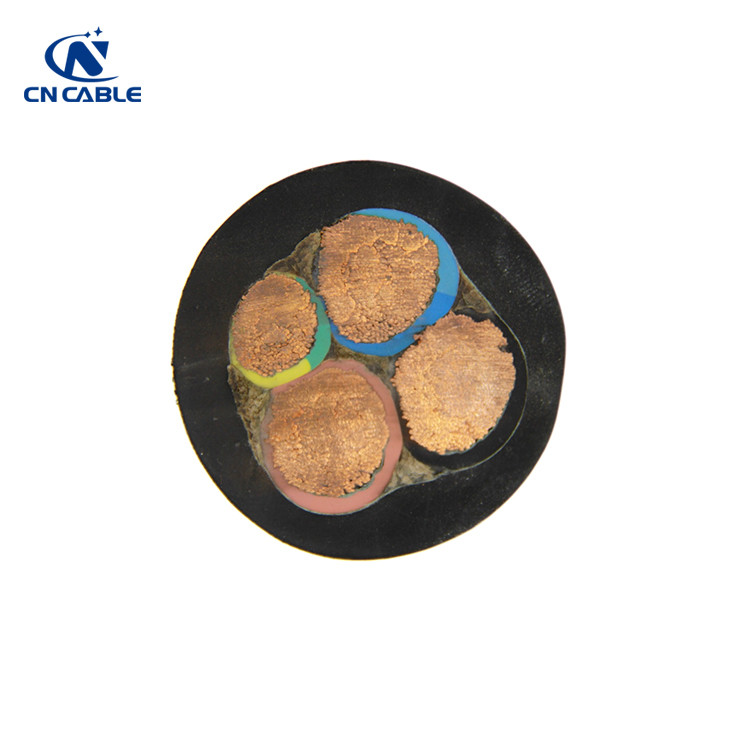

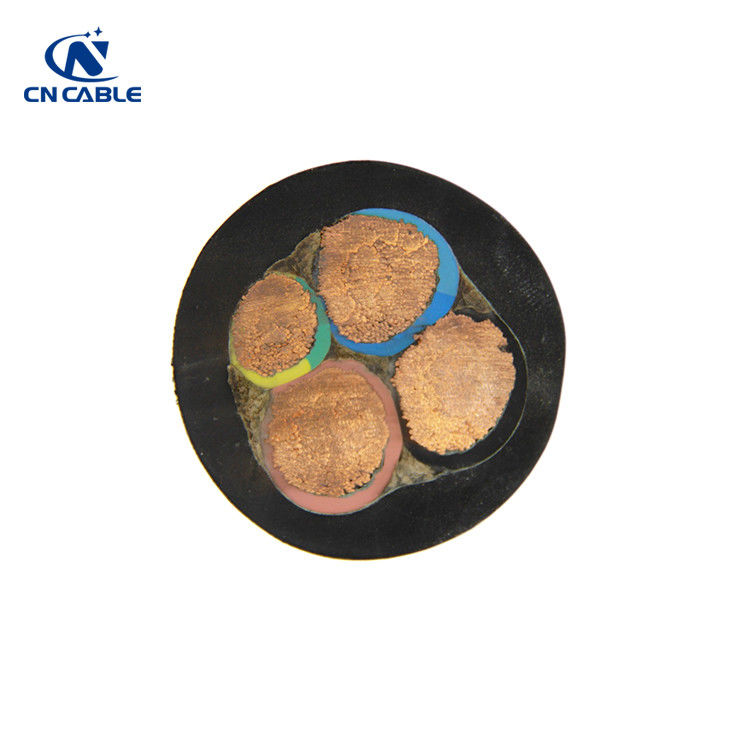

Class 2 4 Cores PUR Jacket EPR Insulated Power Cables

Minimum Order Quantity : 200meters Packaging Details : Iron-wooden drum
Delivery Time : 1-4 weeks Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE Model Number: H05BQ-F / H07BQ-F (NGMH11Y"O)

Detail Information

Conductor: Copper Core: 4 Cores
Insulation: LSOH Cross-link Polyolefin Insulation Jacket: PUR
Color: Black Sample: Free
High Light:

EPR Insulated Power Cables

,

PUR Jacket Power Cables

,

4 Cores Insulated Power Cables

Product Description

H05BQ-F / H07BQ-F (NGMH11Y"O) EPR Insulated Power Cables with PUR Jacket







Application and Description

The H05BQ-F and H07BQ-F cables are robust polyurethane (PUR) sheathed cables with a voltage rating of 300/500v and 450/750V respectively. The H05BQ-F and H07BQ-F cables used for medium mechanical stress in dry, damp or wet areas, e.g. for connecting agricultural and commercial equipment, for connecting heaters where there is a danger of cable damage due to its contact with hot surfaces. The cable can also be used in electrical appliances such as drills, hand-held circular saws as well as in building sites and refrigeration plants.



Standard

HAR HD 22.10
CEI 20-19/10
VDE 0282/10



Cable Construction
Conductor: Class 2 stranded Copper
Insulation: Cross-linked EPR (Ethylene Propylene Rubber)
Outer Sheath:PUR (Polyurethane)



Technical Characteristics:

Working voltage 300/500 volts (H05BQ-F) ; 450/750 volts (H07BQ-F)
Test voltage 2000 volts (H05BQ-F) ; 2500 volts(H07BQ-F)
Flexing bending radius 5 x O
Fixed bending radius 3 x O
Flexing Temperature -40 oC to +80 oC
Fixed Temperature -50 oC to +90 oC
Short circuit temperature +250 oC
Flame retardant IEC 60332.1
Insulation resistance 20 MΩ x km

Cable Parameter
AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
# x mm^2 mm mm mm kg/km kg/km
H05BQ-F
18(24/32) 2 x 0.75 0.6 0.8 5.7 - 7.4 14.4 52
18(24/32) 3 x 0.75 0.6 0.9 6.2 - 8.1 21.6 63
18(24/32) 4 x 0.75 0.6 0.9 6.8 - 8.8 29 80
18(24/32) 5 x 0.75 0.6 1.0 7.6 - 9.9 36 96
17(32/32) 2 x 1 0.6 0.9 6.1 - 8.0 19.2 59
17(32/32) 3 x 1 0.6 0.9 6.5 - 8.5 29 71
17(32/32) 4 x 1 0.6 0.9 7.1 - 9.3 38.4 89
17(32/32) 5 x 1 0.6 1.0 8.0 - 10.3 48 112
H07BQ-F
16(30/30) 2 x 1.5 0.8 1.0 7.6 - 9.8 29 92
16(30/30) 3 x 1.5 0.8 1.0 8.0 - 10.4 43 109
16(30/30) 4 x 1.5 0.8 1.1 9.0 - 11.6 58 145
16(30/30) 5 x 1.5 0.8 1.1 9.8 - 12.7 72 169
14(50/30) 2 x 2.5 0.9 1.1 13.0 - 15.0 101 230
14(50/30) 3 x 2.5 0.9 1.1 17.0 - 20.0 173 398
14(50/30) 4 x 2.5 0.9 1.2 9.0 - 11.6 48 121
14(50/30) 5 x 2.5 0.9 1.3 9.6 - 12.4 72 164
12(56/28) 2 x 4 1.0 1.2 10.7 - 13.8 96 207
12(56/28) 3 x 4 1.0 1.2 11.9 - 15.3 120 262
12(56/28) 4 x 4 1.0 1.3 10.6 - 13.7 77 194
12(56/28) 5 x 4 1.0 1.4 11.3 - 14.5 115 224
10(84/28 2 x 6 1.0 1.3 12.7 - 16.2 154 327
10(84/28 3 x 6 1.0 1.4 14.1 - 17.9 192 415
10(84/28 4 x 6 1.0 1.5 11.8 - 15.1 115 311
10(84/28 5 x 6 1.0 1.6 12.8 - 16.3 173 310
