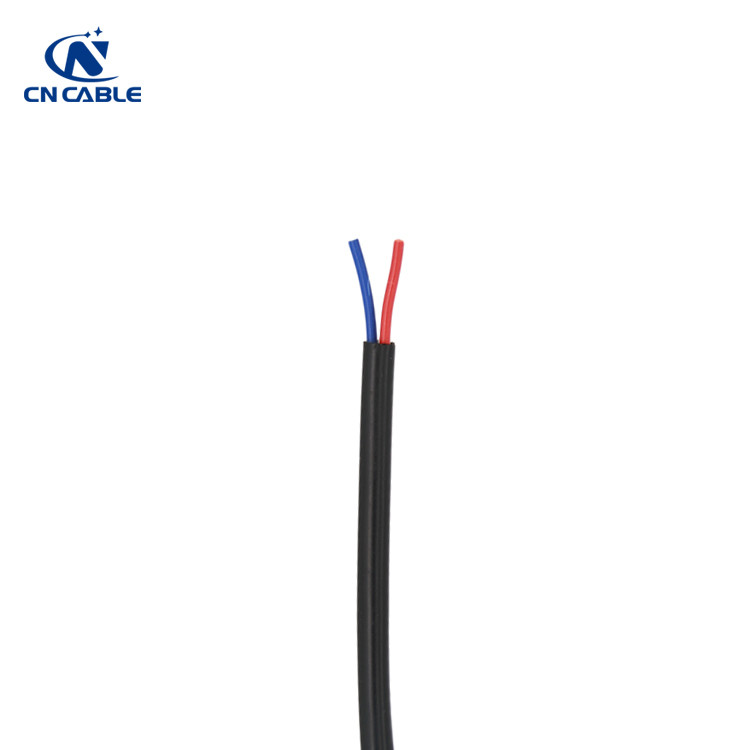

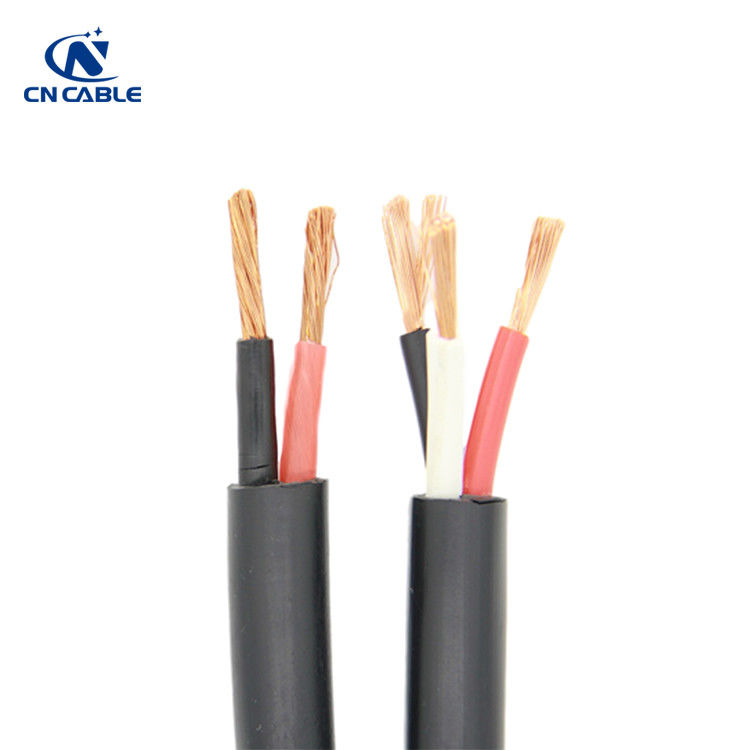

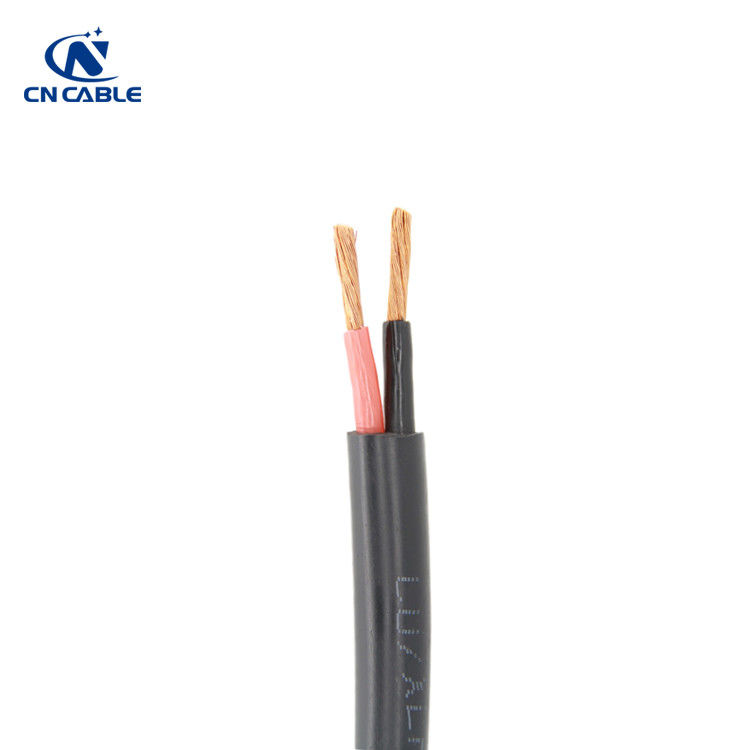

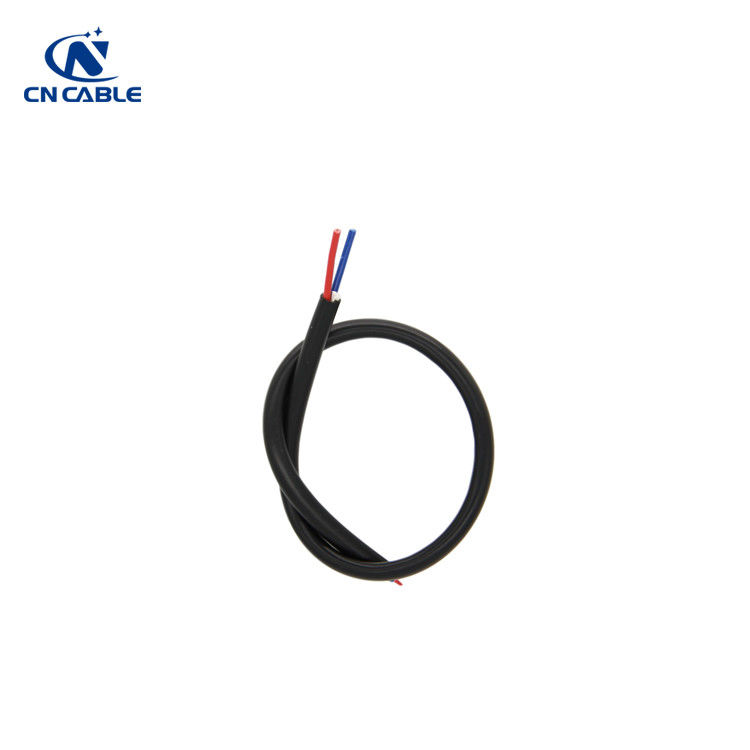

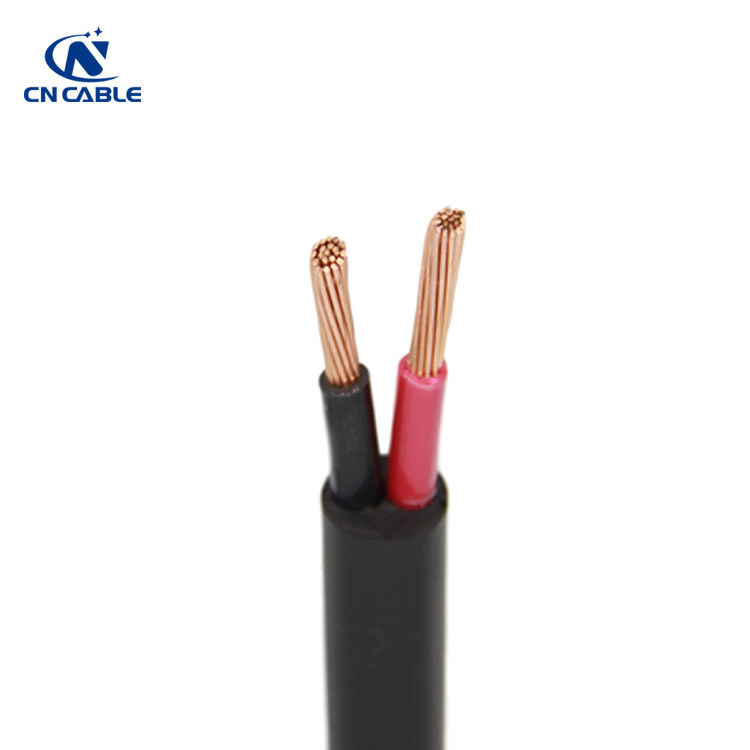

2 Cores Flame Retardant 500V Flexible Electric Cable

Contact Now

2 Cores Flame Retardant 500V Flexible Electric Cable

Name: 2 Cores Flame Retardant 500V Flexible Electric Cable
Brand: CN CABLE
SKU: H05GG-F
Price: 0.5 USD
Availability: InStock
Rating: 4.9 (140 reviews)

Minimum Order Quantity :	200meters	Price :	USD 0.5-3.0 meter
Packaging Details :	Iron-wooden drum	Delivery Time :	1-4 weeks
Payment Terms :	L/C, T/T

Place of Origin:	Henan	Brand Name:	CN CABLE
Certification:	CE, ISO9001	Model Number:	H05GG-F

Detail Information
Conductor:	Fine Tinned Copper Strands	Core:	2 Cores
Insulation:	Cross-linked Elastomere	Jacket:	Cross-linked Elastomere
Color:	Black	Sample:	Free
High Light:	500V Flexible Electric Cable , 2 Cores Flexible Electric Cable , Flame Retardant Flexible Electric Cable

Product Description

Low Voltage 300/500V Flexible Electric Cable H05GG-F Cable

Application
The H05GG-F cable is for general use in domestic premises, kitchens and offices and for supplying appliances where the cables are subjected to low mechanical stresses. Also for low temperature uses.(eg., cooking appliances, soldering irons, toasters).

Standard
<HAR> HD 22.11 S1
VDE 0282 part 11
CEI 20-19/11
NFC 32-102-11

Cable Construction
Conductor: Fine tinned copper strands
Insulation: Cross-linked elastomere E13
Core color code according to VDE-0293-308
Jacket: Cross-linked elastomere EM 9
Jacket color: Black

Technical Characteristics:

Working voltage: 300/500V

Test voltage: 2000V

Flexing bending radius: 4 x O

Static bending radius: 3 x O

Temperature range: -15 oC to +110 oC

Short circuit temperature: 200 oC

Flame retardant: IEC 60332 -1

Halogen-free: IEC 60754-1

Low smoke: IEC 60754-2

Smoke density: IEC 61034

Cable Parameter

AWG	No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Thickness of sheath	Nominal Overall Diameter	Nominal Weight
AWG	# x mm^2	mm	mm	mm	kg/km
18(24/32)	2x0.75	0.6	0.8	6.3	53
17(32/32)	2x1	0.6	0.9	6.8	64
16(30/30)	2x1.5	0.8	1	8.3	95
14(50/30)	2x2.5	0.9	1.1	9.8	140
18(24/32)	3x0.75	0.6	0.9	6.8	65
17(32/32)	3x1	0.6	0.9	7.2	77
16(30/30)	3x1.5	0.8	1	8.8	115
14(50/30)	3x2.5	0.9	1.1	10.4	170
12(56/28)	3 x 4	1	1.2	12.2	240
10(84/28)	3 x 6	1	1.4	13.6	320
18(24/32)	4x0.75	0.6	0.9	7.4	80
17(32/32)	4x1	0.6	0.9	7.8	95
16(30/30)	4x1.5	0.8	1.1	9.8	145
14(50/30)	4x2.5	0.9	1.2	11.5	210
12(56/28)	4 x 4	1	1.3	13.5	300
10(84/28)	4 x 6	1	1.5	15.4	405
18(24/32)	5x0.75	0.6	1	8.3	100
17(32/32)	5x1	0.6	1	8.7	115
16(30/30)	5x1.5	0.8	1.1	10.7	170
14(50/30)	5x2.5	0.9	1.3	12.8	255
